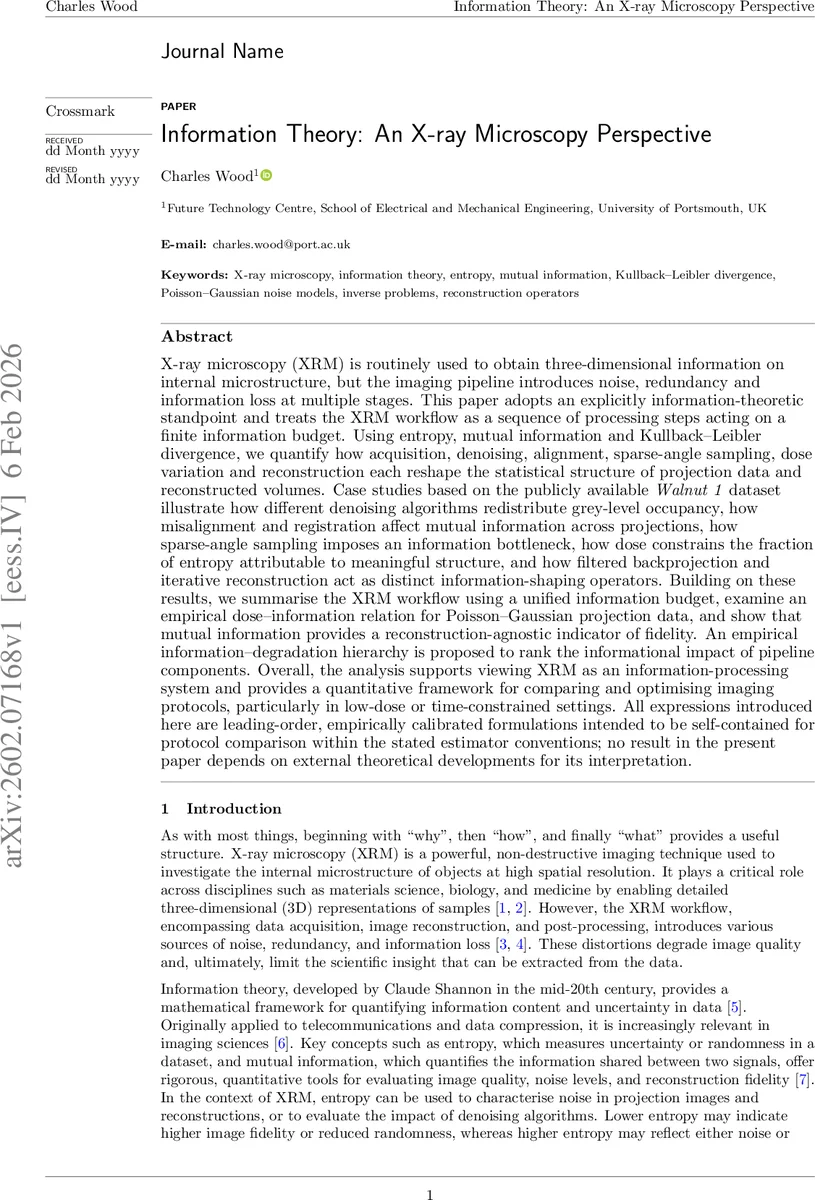

Information Theory: An X-ray Microscopy Perspective

X-ray microscopy (XRM) is commonly used to obtain three-dimensional information on internal microstructure, but the imaging pipeline introduces noise, redundancy and information loss at multiple stages. This paper treats the XRM workflow as an information-processing system acting on a finite information budget. Using entropy, mutual information and Kullback-Leibler divergence, we quantify how acquisition, denoising, alignment, sparse-angle sampling, dose variation and reconstruction reshape the statistical structure of projection data and reconstructed volumes. Case studies based on the Walnut 1 dataset illustrate how these processes redistribute information and impose bottlenecks. We summarise the workflow using a unified information budget and show that mutual information provides a reconstruction-agnostic indicator of fidelity, supporting quantitative comparison and optimisation of XRM protocols, particularly under low-dose or time-constrained conditions

💡 Research Summary

The manuscript presents a comprehensive information‑theoretic framework for analyzing and optimizing X‑ray microscopy (XRM) workflows. By treating the entire imaging pipeline—from photon detection through reconstruction and post‑processing—as a finite‑budget information channel, the authors employ three core metrics: Shannon entropy, mutual information (MI), and Kullback‑Leibler (KL) divergence. Entropy quantifies the randomness or noise present in a dataset, MI measures the amount of shared information between two datasets (e.g., raw projections and reconstructed volumes), and KL divergence captures directional changes in probability distributions caused by processing steps.

Using the publicly available Walnut 1 dataset, the paper conducts a series of controlled experiments that vary dose, angular sampling, alignment accuracy, denoising algorithms, and reconstruction methods. For each condition, discrete histograms of pixel/voxel intensities are built under fixed binning, masking, and normalisation, allowing direct comparison of entropy values. The authors demonstrate that lower X‑ray dose increases entropy due to Poisson‑Gaussian noise, while higher dose pushes entropy toward the detector’s bit‑depth limit, reflecting structural complexity rather than noise.

Alignment errors are quantified through MI: sub‑pixel misregistrations cause only minor MI reductions, but errors exceeding a few degrees can cut MI by more than 10 %, indicating a substantial loss of structural correspondence across views. Sparse‑angle sampling is shown to impose a hard information bottleneck; reducing the number of projection angles markedly lowers MI and raises KL divergence, evidencing a distortion of the underlying intensity distribution that entropy alone cannot capture.

The study then evaluates two families of reconstruction operators. Filtered back‑projection (FBP) preserves high‑frequency noise, resulting in relatively high entropy but modest MI relative to the ground truth. Iterative algorithms (ART, SIRT, and regularized variants) incorporate prior information, thereby reducing entropy and substantially increasing MI and decreasing KL divergence. These findings support the view that reconstruction can redistribute but never create information beyond the channel capacity set by the acquisition stage.

A unified “information budget” is assembled by summing the contributions of each stage. The authors derive an empirical dose‑information relationship of the form I ≈ α log₂(λ)+β, where λ denotes the mean photon count per pixel. This relation enables prediction of the minimum dose required to achieve a target MI, facilitating protocol design under radiation‑damage constraints. Moreover, MI is advocated as a reconstruction‑agnostic fidelity metric because it does not rely on pixel‑wise correspondence and is robust to intensity scaling, unlike MSE or SSIM.

The paper concludes that viewing XRM as an information‑processing system yields actionable insights: (1) low‑dose, sparse‑angle acquisitions constitute the primary bottleneck; (2) precise alignment and judicious denoising can recover a significant fraction of the lost information; (3) iterative, prior‑driven reconstructions are more efficient at approaching the channel capacity; and (4) MI provides a universal yardstick for comparing disparate imaging protocols. The authors suggest future extensions such as nonlinear channel modeling, deep‑learning priors, and real‑time information‑flow monitoring to enable adaptive acquisition strategies.
