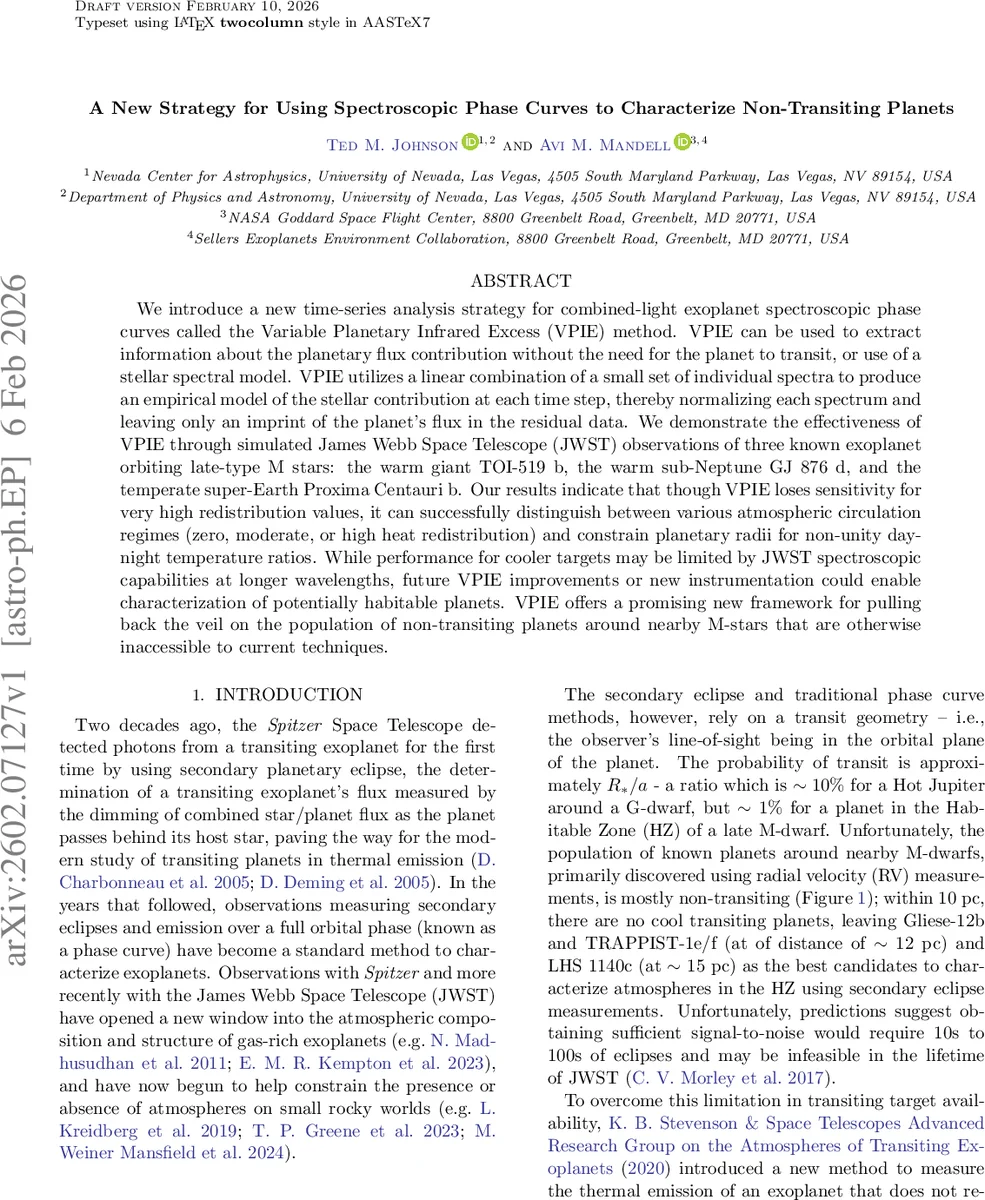

A New Strategy for Using Spectroscopic Phase Curves to Characterize Non-Transiting Planets

We introduce a new time-series analysis strategy for combined-light exoplanet spectroscopic phase curves called the Variable Planetary Infrared Excess (VPIE) method. VPIE can be used to extract information about the planetary flux contribution without the need for the planet to transit, or use of a stellar spectral model. VPIE utilizes a linear combination of a small set of individual spectra to produce an empirical model of the stellar contribution at each time step, thereby normalizing each spectrum and leaving only an imprint of the planet’s flux in the residual data. We demonstrate the effectiveness of VPIE through simulated James Webb Space Telescope (JWST) observations of three known exoplanet orbiting late-type M stars: the warm giant TOI-519 b, the warm sub-Neptune GJ 876 d, and the temperate super-Earth Proxima Centauri b. Our results indicate that though VPIE loses sensitivity for very high redistribution values, it can successfully distinguish between various atmospheric circulation regimes (zero, moderate, or high heat redistribution) and constrain planetary radii for non-unity day-night temperature ratios. While performance for cooler targets may be limited by JWST spectroscopic capabilities at longer wavelengths, future VPIE improvements or new instrumentation could enable characterization of potentially habitable planets. VPIE offers a promising new framework for pulling back the veil on the population of non-transiting planets around nearby M-stars that are otherwise inaccessible to current techniques.

💡 Research Summary

The paper introduces a novel time‑series analysis technique called Variable Planetary Infrared Excess (VPIE) for extracting the thermal emission of non‑transiting exoplanets from combined‑light spectroscopic phase curves. Traditional secondary‑eclipse and phase‑curve methods require a transit geometry, limiting atmospheric studies to the small fraction of planets that happen to transit their host stars. This limitation is especially severe for the numerous planets orbiting nearby late‑type M dwarfs, most of which have been discovered via radial‑velocity surveys and do not transit.

VPIE circumvents the need for a transit by exploiting the fact that at short wavelengths (the “SW” region, roughly 1–5 µm for JWST instruments) the stellar flux dominates the photon budget and the planetary contribution is effectively zero. The authors treat each observed spectrum as a linear combination of a small set of basis spectra drawn from selected epochs within the time series. These basis spectra are chosen by minimizing information criteria (BIC or AIC) to best capture the stellar variability without any planetary signal. A weighted least‑squares fit of the SW region yields coefficients that reconstruct the full spectrum (both SW and long‑wavelength “LW” region) for each time step. Because the fit is blind to the LW planetary flux, the reconstructed spectrum matches the data in the SW region but deviates in the LW region where the planet’s thermal emission becomes measurable.

Subtracting the reconstruction from the original data produces residuals (f − ˜f) that consist of the planetary signal δ plus a noise term ε. The planetary component can be modeled with a physical phase‑curve model that depends on parameters such as day‑night temperature contrast, heat‑redistribution efficiency, and emitting area (i.e., planetary radius). By comparing the observed residuals to a grid of such models, the authors infer the most likely planetary properties using a simple χ² statistic (they deliberately avoid more sophisticated Bayesian inference for this proof‑of‑concept).

The method is demonstrated on simulated JWST observations of three well‑known planets orbiting late‑type M dwarfs:

1. TOI‑519 b, a warm giant (≈1 R_J) around an M dwarf. Simulated NIRSpec + MIRI observations over a full orbit show that VPIE can distinguish between no heat redistribution and moderate redistribution (χ²_red ≈ 6) and can recover the planetary radius to within ~10 %.

2. GJ 876 d, a warm sub‑Neptune (≈2.5 R_⊕). The simulations reveal that even with a relatively modest planetary signal, VPIE can separate moderate from high heat redistribution scenarios (χ²_red ≈ 27 vs ≈ 269) and constrain the radius to ~12 % precision.

3. Proxima Centauri b, a temperate super‑Earth (≈1.1 R_⊕) in the habitable zone. Because the planet is cooler, its emission peaks at longer wavelengths where JWST’s sensitivity declines. Nevertheless, VPIE still manages to differentiate between low and moderate redistribution, though the high‑redistribution case becomes indistinguishable due to the near‑constant planetary flux. Radius estimates are less precise (~15–20 % uncertainty).

Key findings include:

• VPIE can retrieve heat‑redistribution regimes (zero, moderate, high) for a range of planetary temperatures, provided the day‑night temperature contrast is not vanishingly small. When redistribution is extremely efficient, the planetary signal becomes nearly constant in phase and the method loses discriminating power.

• The technique yields meaningful constraints on planetary radius even without a transit, because the amplitude of the LW residuals scales with the emitting area.

• Stellar variability, often a nuisance in exoplanet spectroscopy, becomes an asset for VPIE. As long as the variability is captured in the SW region and is uncorrelated with the planetary phase, it improves the separation of stellar and planetary components.

• Limitations arise for very cool planets where the planetary flux lies beyond JWST’s most sensitive wavelength range, and for cases with very high heat redistribution where the phase modulation is weak.

• The current implementation uses linear basis reconstruction and a χ² grid search. The authors note that incorporating Bayesian MCMC, non‑linear machine‑learning models for basis construction, or wavelength‑dependent weighting could further enhance performance and robustness, especially in the presence of stellar flares or granulation noise.

In summary, VPIE offers the first practical framework for extracting atmospheric information from non‑transiting planets using spectroscopic phase curves. By eliminating the reliance on transit geometry and stellar atmosphere models, it opens a pathway to characterize the large population of nearby M‑dwarf planets that are currently inaccessible. Future work combining VPIE with next‑generation infrared facilities (e.g., Origins Space Telescope, LUVOIR) or improving the algorithmic components could enable atmospheric studies of potentially habitable worlds such as Proxima b.
