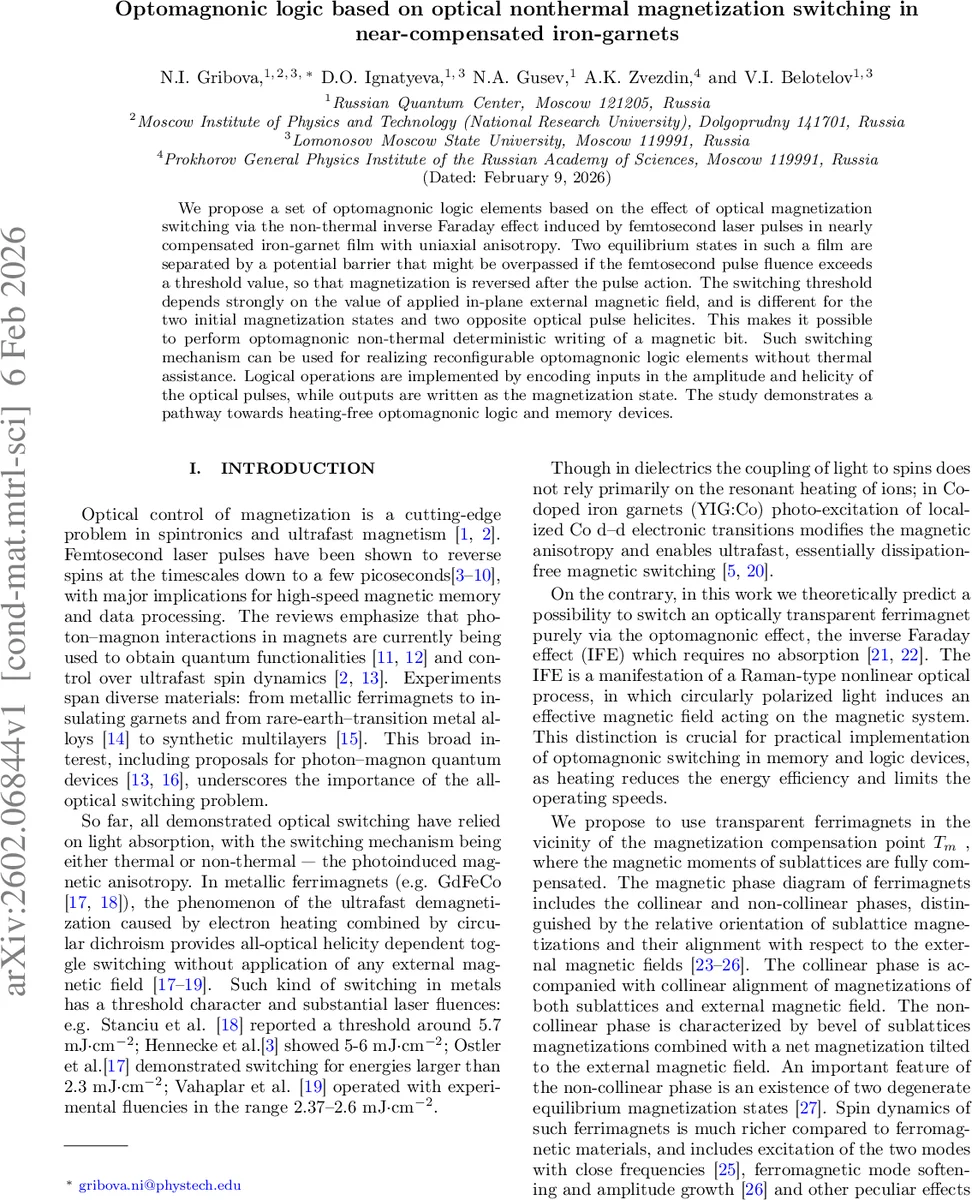

Optomagnonic logic based on optical nonthermal magnetization switching in near-compensated iron-garnets

We propose a set of optomagnonic logic elements based on the effect of optical magnetization switching via the non-thermal inverse Faraday effect induced by femtosecond laser pulses in nearly compensated iron-garnet film with uniaxial anisotropy. Two equilibrium states in such a film are separated by a potential barrier that might be overpassed if the femtosecond pulse fluence exceeds a threshold value, so that magnetization is reversed after the pulse action. The switching threshold depends strongly on the value of applied in-plane external magnetic field, and is different for the two initial magnetization states and two opposite optical pulse helicites. This makes it possible to perform optomagnonic non-thermal deterministic writing of a magnetic bit. Such switching mechanism can be used for realizing reconfigurable optomagnonic logic elements without thermal assistance. Logical operations are implemented by encoding inputs in the amplitude and helicity of the optical pulses, while outputs are written as the magnetization state. The study demonstrates a pathway towards heating-free optomagnonic logic and memory devices.

💡 Research Summary

This paper proposes a novel class of optomagnonic logic elements that exploit non‑thermal magnetization switching driven by the inverse Faraday effect (IFE) in a near‑compensated iron‑garnet (RIG) thin film with uniaxial anisotropy. In such ferrimagnets the magnetic moments of the two sublattices (Fe and rare‑earth ions) nearly cancel at the compensation point, leaving two degenerate equilibrium states separated by an energy barrier. An external in‑plane magnetic field H_ext tilts the potential landscape, defining the equilibrium angles ±θ₀ and the barrier height ΔU_eff, which depend on H_ext, the uniaxial anisotropy K, the transverse susceptibility χ, and the sub‑lattice magnetization difference m.

When a femtosecond circularly‑polarized laser pulse impinges on the film, the IFE generates an effective magnetic field H_IFE proportional to the vector product of the electric field and its complex conjugate. The direction of H_IFE follows the light’s helicity: σ⁺ produces a field parallel to the propagation vector, σ⁻ produces the opposite. Because the pulse duration τ (~0.05–0.2 ps) is much shorter than the magnetic precession period, the IFE acts as an impulsive torque. The authors derive coupled nonlinear equations of motion for the polar (θ) and azimuthal (φ) angles from a Lagrangian formalism, incorporating Gilbert damping α. Initial conditions are set by the equilibrium angle θ₀ and zero azimuthal angle. The pulse instantaneously imparts an angular velocity dθ/dt|₀ that scales with γ τ H_IFE and a factor involving H_ext, χ, and m.

Numerical integration shows two regimes. For H_IFE below a critical value H_IFE^c the system executes small‑amplitude oscillations around the original minimum. When H_IFE exceeds H_IFE^c, the trajectory gains enough kinetic energy to cross the barrier and relax into the opposite minimum (−θ₀), achieving deterministic magnetization reversal. Crucially, the critical field is helicity‑dependent: σ⁺ (for an initial state with θ₀ > 0) yields a lower threshold than σ⁻ because the initial angular velocity points toward the barrier, whereas σ⁻ pushes the system away, allowing damping to dissipate energy before the barrier can be overcome. This asymmetry translates into distinct fluence thresholds J_min and J_max (≈2.5 mJ cm⁻² and ≈5 mJ cm⁻² for the material parameters used). By selecting a pulse fluence J such that J_min < J < J_max, the final magnetic state is dictated solely by the pulse helicity, independent of the initial bit, enabling fully deterministic, non‑thermal bit writing.

The authors then map the two magnetic states to logical bits (“0ᵂ” for +θ₀, “1ᵂ” for –θ₀). Logical operations are realized by encoding inputs in the amplitude (whether the pulse exceeds J_min) and helicity (σ⁺ or σ⁻) of one or more femtosecond pulses, while the output is read as the final magnetization direction. By adjusting the external field H_ext, the equilibrium angle θ₀ and barrier height ΔU_eff can be tuned, allowing the same physical device to implement different logic functions (e.g., AND, OR, NOT) without hardware reconfiguration—only the optical control parameters change.

The paper’s contributions are threefold: (1) a quantitative model of non‑thermal IFE‑driven switching in a compensated ferrimagnet, (2) a detailed analysis of how external magnetic bias and pulse parameters set the switching thresholds, and (3) a conceptual framework for reconfigurable optomagnonic logic gates that operate without heating. Because the process is purely optical and dissipationless, the energy per operation is expected to be orders of magnitude lower than thermally assisted spin‑transfer torque or all‑optical switching in metallic ferrimagnets, while the sub‑picosecond pulse duration promises terahertz‑scale switching speeds. Moreover, the use of a transparent dielectric garnet eliminates conductive losses, facilitating integration with photonic circuits and potentially enabling hybrid photonic‑spintronic computing architectures. The authors suggest that experimental verification, material optimization (e.g., tailoring compensation temperature and anisotropy), and scaling studies are the next steps toward practical optomagnonic processors.
