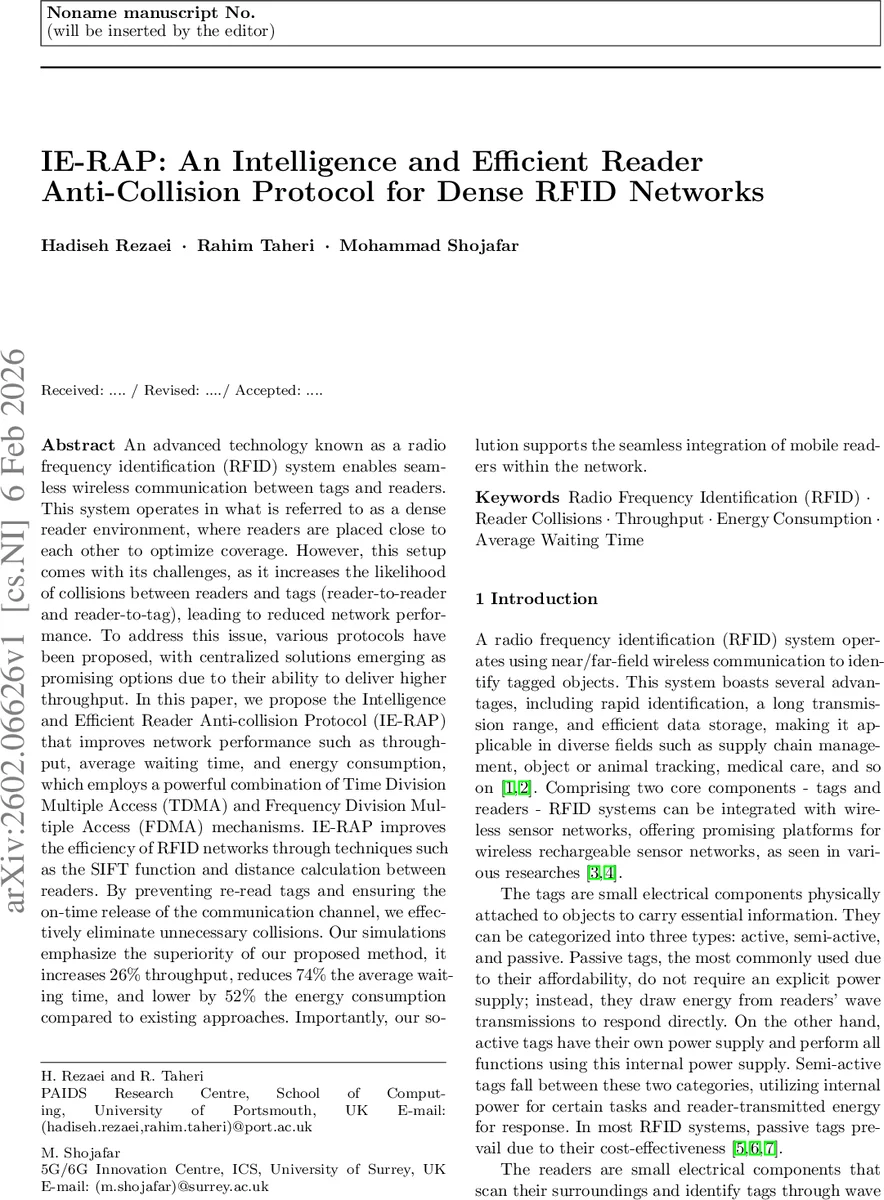

IE-RAP: An Intelligence and Efficient Reader Anti-Collision Protocol for Dense RFID Networks

An advanced technology known as a radio frequency identification (RFID) system enables seamless wireless communication between tags and readers. This system operates in what is referred to as a dense reader environment, where readers are placed close to each other to optimize coverage. However, this setup comes with its challenges, as it increases the likelihood of collisions between readers and tags (reader-to-reader and reader-to-tag), leading to reduced network performance. To address this issue, various protocols have been proposed, with centralized solutions emerging as promising options due to their ability to deliver higher throughput. In this paper, we propose the Intelligence and Efficient Reader Anti-collision Protocol (IE-RAP) that improves network performance such as throughput, average waiting time, and energy consumption, which employs a powerful combination of Time Division Multiple Access (TDMA) and Frequency Division Multiple Access (FDMA) mechanisms. IE-RAP improves the efficiency of RFID networks through techniques such as the SIFT function and distance calculation between readers. By preventing re-read tags and ensuring the on-time release of the communication channel, we effectively eliminate unnecessary collisions. Our simulations emphasize the superiority of our proposed method, it increases 26% throughput, reduces 74% the average waiting time, and lower by 52% the energy consumption compared to existing approaches. Importantly, our solution supports the seamless integration of mobile readers within the network.

💡 Research Summary

The paper addresses the critical problem of reader‑to‑reader and reader‑to‑tag collisions that arise in dense reader environments (DRE) typical of modern RFID deployments. Existing solutions—both distributed (e.g., DCS, PDCS, APR, DMRCP) and centralized (e.g., NFRA, GDRA, NFRA‑C, DRCA, FRCA1)—rely on either pure time‑division (TDMA) or frequency‑division (FDMA) mechanisms, but they suffer from high overhead, limited scalability, and persistent duplicate tag reads that waste energy and increase latency.

IE‑RAP (Intelligence and Efficient Reader Anti‑Collision Protocol) is proposed as a hybrid, centrally‑controlled scheme that combines TDMA and FDMA, uses a SIFT (Selective Inter‑Frame Timing) probability distribution for slot selection, and introduces an Information Sharing Phase (ISP) to eliminate duplicate tag reads. The protocol operates as follows: a central server allocates time slots and frequency channels to each reader; each reader draws a slot number from the SIFT distribution, which biases selection toward less‑used slots based on historical occupancy. After a reader finishes reading its assigned tags, it broadcasts the list of tag IDs to neighboring readers (or the server) during the ISP. Receiving readers compare the list with their own pending reads and discard any tags already captured, thus preventing re‑reads.

A further novelty is the use of inter‑reader distance estimation. By measuring received signal strength (RSSI) and known transmission power, each reader estimates the distance to other active readers. If the estimated distance falls within the interference range of another reader, the protocol forces an immediate channel release or a switch to a different frequency, thereby pre‑emptively avoiding reader‑to‑reader collisions. This distance‑aware adjustment is especially valuable for mobile readers that dynamically join or leave the network.

The authors evaluate IE‑RAP through extensive MATLAB simulations covering a range of network densities (5–30 readers), tag populations (100–1000 tags), and channel counts (2–8). Performance metrics include throughput, average waiting time, and energy consumption. Compared with state‑of‑the‑art centralized protocols (NFRA, GDRA) and distributed protocols (DCS, PDCS, APR), IE‑RAP achieves:

• Throughput improvement of ~26 % – the hybrid TDMA/FDMA allocation and ISP reduce contention, allowing more tags to be processed per unit time.
• Average waiting time reduction of ~74 % – eliminating duplicate reads and promptly freeing channels shortens the time a tag spends in the system.
• Energy consumption reduction of ~52 % – fewer retransmissions and shorter active periods for both tags and readers lower overall power usage.

The protocol also maintains low collision rates (<30 %) when mobile readers move within the network, demonstrating robustness to dynamic topologies.

Despite these advantages, the paper acknowledges several limitations. Centralized control creates a single point of failure; the reliance on RSSI for distance estimation can be unreliable in multipath or highly attenuating environments; and the SIFT distribution parameters, slot numbers, and channel allocations must be tuned for each deployment scenario. The authors suggest future work on (1) decentralized backup controllers or blockchain‑based coordination to mitigate server failures, (2) adaptive machine‑learning algorithms for real‑time parameter optimization, (3) advanced ranging techniques (e.g., beamforming, ultra‑wideband) for more accurate distance estimation, and (4) integration with energy‑harvesting tags to further improve sustainability.

In summary, IE‑RAP presents a compelling blend of time‑frequency multiplexing, probabilistic slot selection, and collaborative information sharing that significantly outperforms existing RFID anti‑collision mechanisms in dense and mobile reader settings, while also outlining clear pathways for addressing its current constraints.
