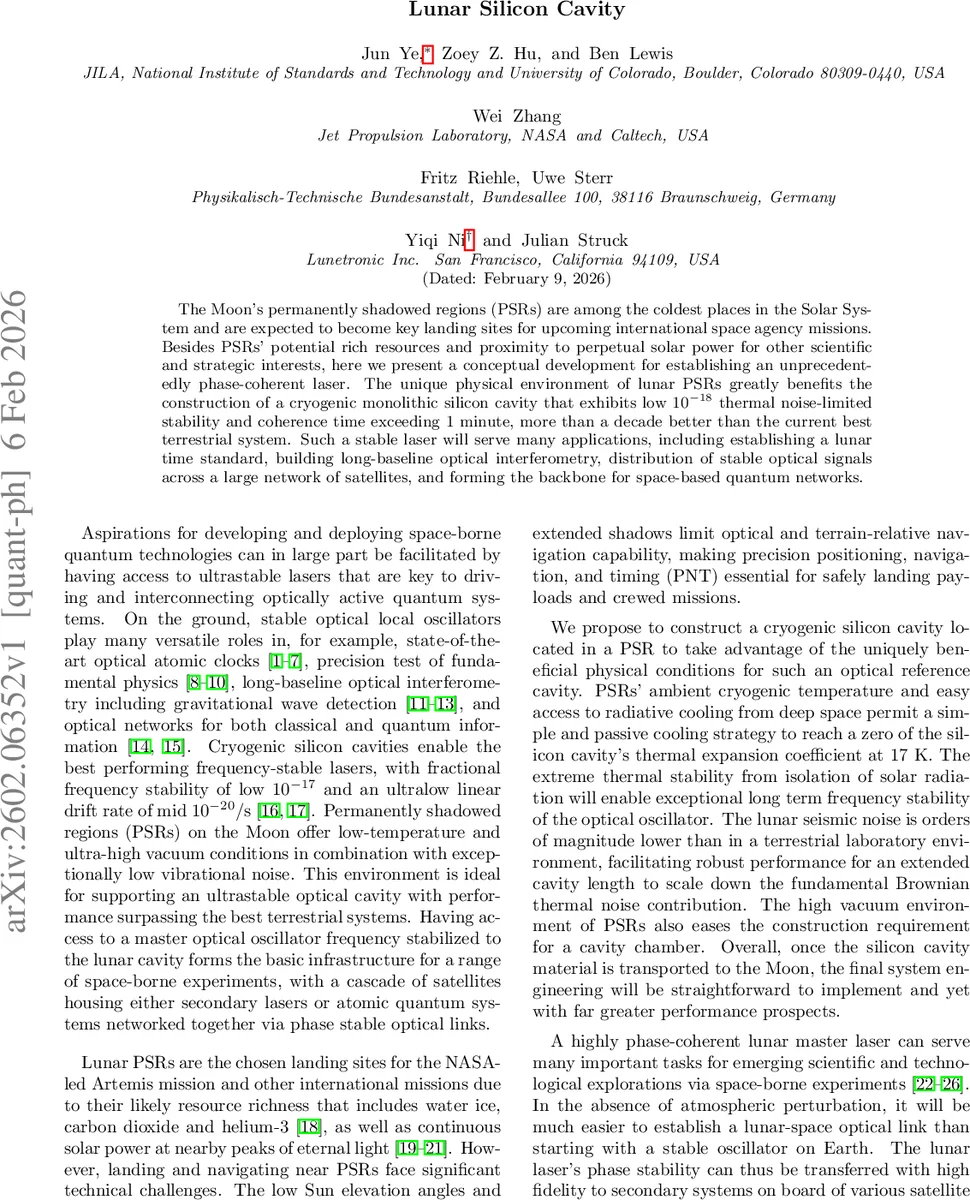

Lunar Silicon Cavity

The Moon’s permanently shadowed regions (PSRs) are among the coldest places in the Solar System and are expected to become key landing sites for upcoming international space agency missions. Their proximity to peaks of perpetual solar power and potential resource richness makes them prime candidates for lunar exploration and future Moon bases. Here we propose to deploy a passive, ultrastable optical resonator in these regions that will enable laser systems with unprecedented phase-coherence. The unique physical environment of lunar PSRs greatly benefits the construction of a cryogenic monolithic silicon cavity that exhibits low $10^{-18}$ thermal noise-limited stability and coherence time exceeding 1 minute, more than a decade better than the current best terrestrial system. Such a stable laser will form a basic quantum technology infrastructure in space to serve many applications, including establishing a lunar time standard, building long-baseline optical interferometry, distribution of stable optical signals across networks of satellites, testing general relativity and gravitational physics, and forming the backbone for space-based quantum networks.

💡 Research Summary

The paper proposes a concept for deploying an ultrastable, cryogenic silicon optical cavity in the Moon’s permanently shadowed regions (PSRs) to serve as a master laser source with unprecedented phase coherence. PSRs are among the coldest locations in the Solar System, maintaining temperatures between 20 K and 60 K with only ~50 mK daily drift, and they naturally provide ultra‑high vacuum (≤10⁻¹⁰ Pa) and extremely low seismic noise (≈0.3 nm at 1 Hz, four orders of magnitude quieter than the quietest terrestrial sites). By exploiting these conditions, a monolithic silicon cavity can be operated at the zero‑crossing of silicon’s coefficient of thermal expansion, around 17 K, where thermal expansion is essentially zero.

The authors outline a passive radiative‑cooling architecture consisting of two deep‑space radiators: a primary radiator (10–20 m²) that cools the cavity chamber to 30–40 K, and a secondary, actively temperature‑controlled shield (1–10 m²) that stabilizes the cavity at 16–17 K. Gold‑coated surfaces and low‑conductivity Kevlar‑type supports minimize parasitic heat loads, allowing the system to operate with less than 0.25 W of heating power.

Two cavity geometries are examined: a 21 cm cavity (similar to current state‑of‑the‑art terrestrial designs) and a longer 50 cm cavity. Both conventional dielectric mirror coatings and low‑thermal‑noise crystalline GaAs/AlGaAs coatings are considered. Thermal‑noise calculations show fractional frequency noise below 10⁻¹⁷ for all designs, with the best configuration (50 cm crystalline) reaching 8 × 10⁻¹⁹, an order of magnitude improvement over the best ground‑based cryogenic silicon cavities (~3 × 10⁻¹⁷). Vibration sensitivity measured for terrestrial silicon cavities (≈10⁻¹⁰ /g) is rendered negligible because the lunar seismic background is far lower; even the longer cavity’s higher vibration susceptibility remains below the fundamental thermal‑noise floor, yielding fractional frequency fluctuations on the order of 10⁻¹⁸.

The paper discusses how the resulting laser, with a coherence time exceeding one minute, can be used as a cornerstone for a lunar time standard (LTC), enabling precise PNT (positioning, navigation, timing) services for future lunar bases. By establishing phase‑stable optical links between the lunar master laser and orbiting satellites, a network of secondary lasers and atomic clocks can be synchronized without atmospheric perturbations, facilitating long‑baseline space interferometry (e.g., space‑based gravitational‑wave detectors), high‑capacity classical and quantum communication, and formation‑flying spacecraft.

Potential challenges are acknowledged: transport and assembly of delicate cryogenic hardware on the lunar surface, radiation‑induced material degradation, dust contamination, and the need for autonomous alignment mechanisms. Nevertheless, the authors argue that the passive cooling approach eliminates vibration‑inducing cryocoolers, and the naturally low‑pressure environment reduces residual‑gas noise, making the lunar platform intrinsically superior to any Earth‑based laboratory.

In conclusion, the manuscript presents a compelling case that the unique thermal, vacuum, and seismic environment of lunar PSRs can enable silicon‑cavity lasers with thermal‑noise‑limited stability at the 10⁻¹⁸ level and coherence times far exceeding current terrestrial capabilities. Such a system would provide essential infrastructure for a broad range of scientific and technological endeavors in lunar, Martian, and deep‑space missions, marking a significant step toward establishing autonomous quantum‑grade timing and communication networks beyond Earth.
