Shallow Trap States Control Electrical Performance of Amorphous Oxide Semiconductor Thin-Film Transistors

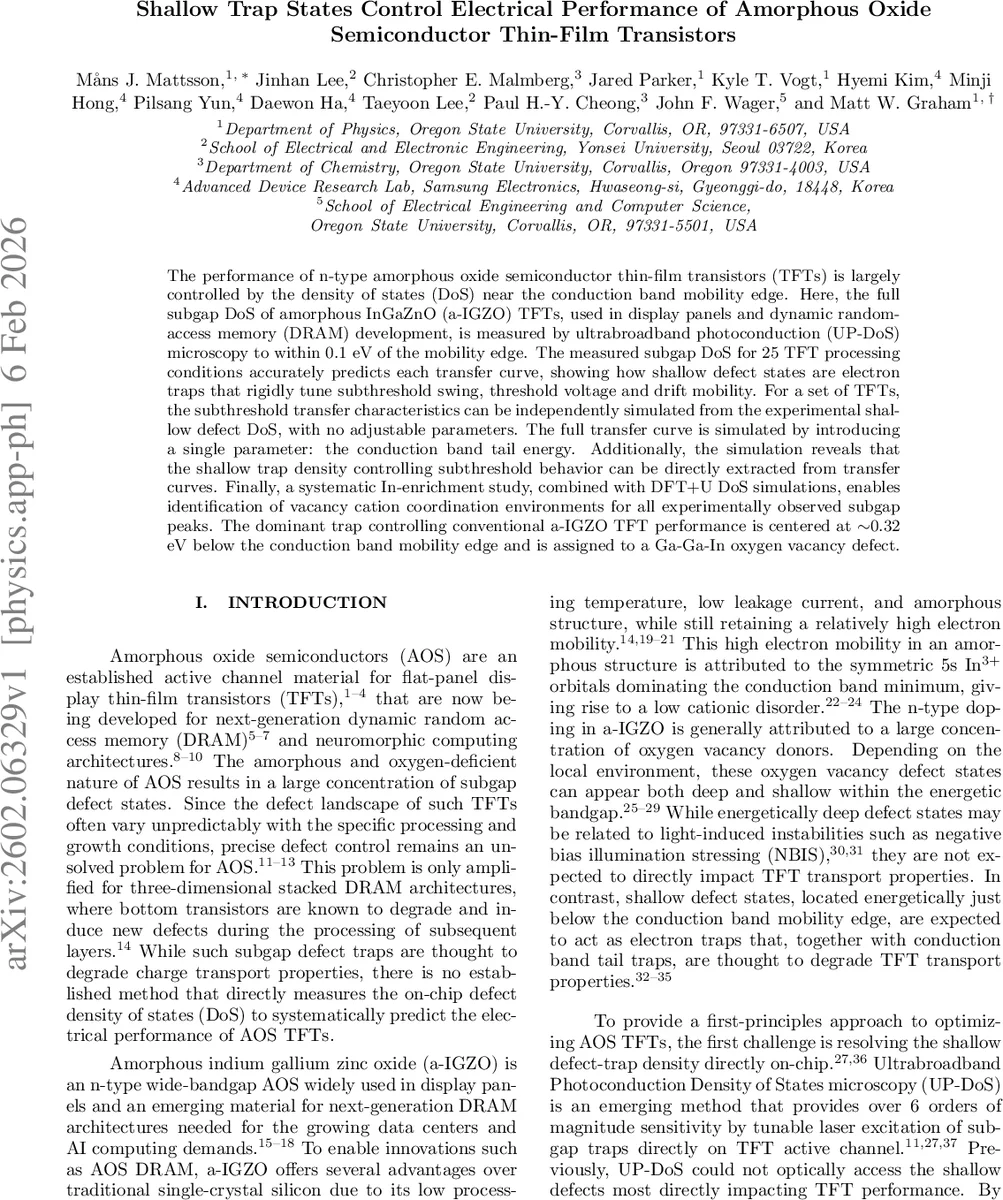

The performance of n-type amorphous oxide semiconductor thin-film transistors (TFTs) is largely controlled by the density of states (DoS) near the conduction band mobility edge. Here, the full subgap DoS of amorphous InGaZnO (a-IGZO) TFTs, used in display panels and dynamic random-access memory (DRAM) development, is measured by ultrabroadband photoconduction (UP-DoS) microscopy to within 0.1 eV of the mobility edge. The measured subgap DoS for 25 TFT processing conditions accurately predicts each transfer curve, showing how shallow defect states are electron traps that rigidly tune subthreshold swing, threshold voltage and drift mobility. For a set of TFTs, the subthreshold transfer characteristics can be independently simulated from the experimental shallow defect DoS, with no adjustable parameters. The full transfer curve is simulated by introducing a single parameter: the conduction band tail energy. Additionally, the simulation reveals that the shallow trap density controlling subthreshold behavior can be directly extracted from transfer curves. Finally, a systematic In-enrichment study, combined with DFT+U DoS simulations, enables identification of vacancy cation coordination environments for all experimentally observed subgap peaks. The dominant trap controlling conventional a-IGZO TFT performance is centered at ~0.32 eV below the conduction band mobility edge and is assigned to a Ga-Ga-In oxygen vacancy defect.

💡 Research Summary

This paper presents a comprehensive study of how shallow trap states control the electrical performance of amorphous InGaZnO (a‑IGZO) thin‑film transistors (TFTs), which are widely used in modern displays and are emerging as the channel material for three‑dimensional stacked DRAM. The authors develop an ultrabroadband photoconduction density‑of‑states (UP‑DoS) microscopy technique that incorporates a tunable difference‑frequency‑generation (DFG) laser, enabling direct ionisation of sub‑gap states within ~0.1 eV of the conduction‑band mobility edge (CBM). By applying this method to 25 TFTs fabricated under varied processing conditions (different annealing temperatures, oxygen partial pressures, indium enrichment, etc.), they obtain the full sub‑gap density of states (DoS) for each device, resolving both deep Gaussian‑shaped traps and a set of shallow Gaussian peaks located within 0.3–0.4 eV below the CBM.

The measured shallow trap density correlates strongly with three key TFT metrics: subthreshold swing (SS), threshold voltage (V_T), and drift mobility (μ). Devices with higher shallow trap densities exhibit larger SS, higher V_T, and reduced μ. The authors demonstrate that the second derivative of the transfer curve (d²I_D/dV_G²) aligns precisely with the first derivative of the measured DoS (dDoS/dV_G), indicating that the voltage at which the current changes most rapidly coincides with the voltage where the trap density changes most rapidly.

Using the experimentally obtained DoS as input, the authors construct a physics‑based model based on Fermi‑Dirac statistics. The model calculates the trapped electron density Q_T(F_n) and the free electron density Q(F_n) as functions of the quasi‑Fermi level F_n, and then derives the mobility μ_SIM(F_n) via a trap‑limited mobility expression (Eq. 2). By varying F_n from –0.64 eV to +0.2 eV relative to the CBM, they reproduce the entire transfer curve of each TFT. Only one adjustable parameter is required to capture the full curve: the Urbach energy of the conduction‑band tail (W_TA). Fitting the data yields W_TA ≈ 20 meV, which represents the exponential decay of the band‑tail states that dominate above threshold. In the subthreshold regime, Gaussian‑shaped oxygen‑vacancy (V_O) traps dominate; above threshold, the exponential band‑tail takes over, leading to a change in the slope of the induced charge versus gate voltage.

The authors further show that shallow trap density can be extracted directly from the transfer curve without any external spectroscopy. By analyzing the linear region of Q_T(V_G)/q (which equals C_ox/q in the subthreshold regime) and the deviation from this slope above threshold, the trap density and the band‑tail Urbach energy can be inferred. This provides a practical, on‑chip diagnostic for process control.

To identify the microscopic origin of the observed trap peaks, the authors perform DFT+U calculations on various oxygen‑vacancy configurations. All experimentally observed sub‑gap peaks are assigned to V_O donors with different cation coordination environments. The dominant peak, centered at ~0.32 eV below the CBM, is attributed to a Ga‑Ga‑In three‑atom cluster surrounding an oxygen vacancy. Systematic indium enrichment experiments reveal that increasing In content reduces the Ga‑Ga‑In V_O concentration, thereby lowering the shallow trap density and improving mobility.

Overall, the paper establishes a clear causal chain: (1) processing conditions → (2) shallow V_O trap density (measured by UP‑DoS) → (3) subthreshold swing, threshold voltage, and mobility (predicted by a minimal‑parameter model) → (4) device performance. By providing both a high‑resolution measurement technique and a compact, physics‑based simulation framework, the work offers a powerful toolset for optimizing a‑IGZO TFTs for both display and emerging DRAM applications, where precise control of shallow traps is essential for reliability and speed.
