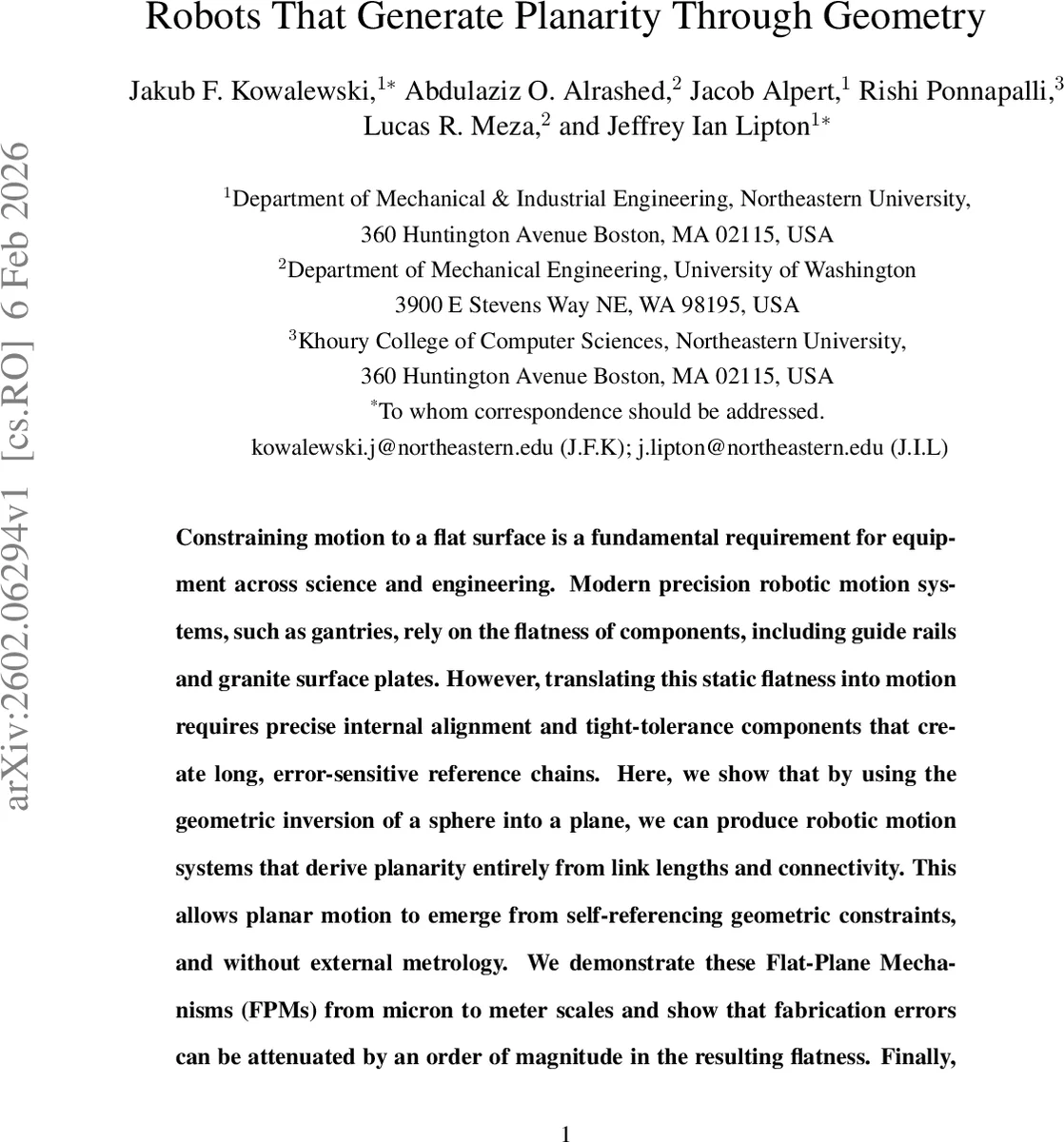

Robots That Generate Planarity Through Geometry

Constraining motion to a flat surface is a fundamental requirement for equipment across science and engineering. Modern precision robotic motion systems, such as gantries, rely on the flatness of components, including guide rails and granite surface plates. However, translating this static flatness into motion requires precise internal alignment and tight-tolerance components that create long, error-sensitive reference chains. Here, we show that by using the geometric inversion of a sphere into a plane, we can produce robotic motion systems that derive planarity entirely from link lengths and connectivity. This allows planar motion to emerge from self-referencing geometric constraints, and without external metrology. We demonstrate these Flat-Plane Mechanisms (FPMs) from micron to meter scales and show that fabrication errors can be attenuated by an order of magnitude in the resulting flatness. Finally, we present a robotic FPM-based 3-axis positioning system that can be used for metrology surface scans ($\pm 12$-mm) and 3D printing inside narrow containers. This work establishes an alternative geometric foundation for planar motion that can be realized across size scales and opens new possibilities in metrology, fabrication, and micro-positioning.

💡 Research Summary

The paper introduces a novel class of planar motion mechanisms called Flat‑Plane Mechanisms (FPMs) that generate true planar motion not by referencing an external flat surface but by embedding planarity directly into the robot’s geometry through the geometric inversion of a sphere onto a plane. The authors base the concept on stereographic projection: a control link constrains a point to move on a sphere, and due to the inversion property, the endpoint of the mechanism traces a flat disc. The structure consists of 13 rigid links connected at six joints; only the relative link lengths matter, making the design scale‑invariant.

Four orders of magnitude of FPMs were fabricated, from a 100 µm compliant micro‑FPM made by two‑photon lithography, through centimeter‑scale wooden‑dowels with magnetic joints, up to a meter‑scale carbon‑fiber rod assembly. In each case the authors measured the output surface over a normalized workspace (≈0.4 L_c) and computed RMS flatness. Results show RMS flatness relative to characteristic length of 0.095 % (micro), 0.005 % (centimeter), and 0.004 % (meter). The micro‑FPM achieved a 95 nm RMS flatness and a workspace‑to‑footprint ratio of 23.8 %, an order of magnitude better than existing flexure stages. The centimeter‑scale device produced 12.6 µm RMS flatness over a 10 cm workspace, while the meter‑scale version delivered 91 µm RMS flatness across a 1 m workspace, essentially limited by motion‑capture noise.

A detailed kinematic sensitivity analysis was performed by parameterising the neutral configuration as a symmetric triangular bipyramid with dimensions (R, H, γ). The dimensionless sensitivity S_k (RMS flatness / link‑length RMSE) was minimized at H* = ¼ L_c, R* = ½ L_c, γ* = π/2, yielding S_k,min ≈ 0.072. Simulations revealed a broad family of designs around this optimum where flatness is attenuated by roughly an order of magnitude relative to the raw fabrication errors. Experimental validation with three centimeter‑scale FPMs confirmed the prediction: average link‑length RMSE of 141.8 µm produced an average flatness RMSE of 15.6 µm, matching the simulated sensitivity.

Crucially, the authors demonstrate that absolute metrology is unnecessary. By iteratively copying a seed link, forming polygonal loops that only close when the link lengths approach the optimal ratios, and using loop‑closure as a feedback signal, the mechanism self‑optimises. Starting from a poorly performing prototype (S_k = 0.392), a single iteration reduced S_k to 0.077, and after three iterations the system converged to S_k ≈ 0.073, effectively bootstrapping planarity without any external measurement tools.

To showcase practical utility, a robotic platform was built using only two harmonic drive motors and six revolute joints (no spherical joints). The robot’s characteristic length is 487.5 mm, providing a 200 mm × 200 mm planar workspace and 300 mm Z‑travel. Single‑point repeatability is 1.9 µm (X) and 2.6 µm (Y). Surface scans of aluminum and acrylic samples were compared against a laboratory‑grade CMM, yielding RMS differences of 7 µm on average, confirming metrological accuracy comparable to conventional gantry CMMs. The same platform was equipped with a fused‑filament 3D‑printing head and successfully scanned and printed within a narrow, deep container, illustrating the system’s capability for fabrication in constrained environments.

In discussion, the authors argue that FPMs provide a scalable, low‑complexity alternative to traditional gantry or cable‑driven planar robots, eliminating long error‑sensitive reference chains. The geometry‑based error attenuation, demonstrated across scales, opens pathways for high‑density micro‑positioners in semiconductor manufacturing, portable large‑format additive manufacturing, and field‑deployable metrology stations. The work establishes geometric inversion as a powerful design principle for future robotic mechanisms that require intrinsic planarity.
