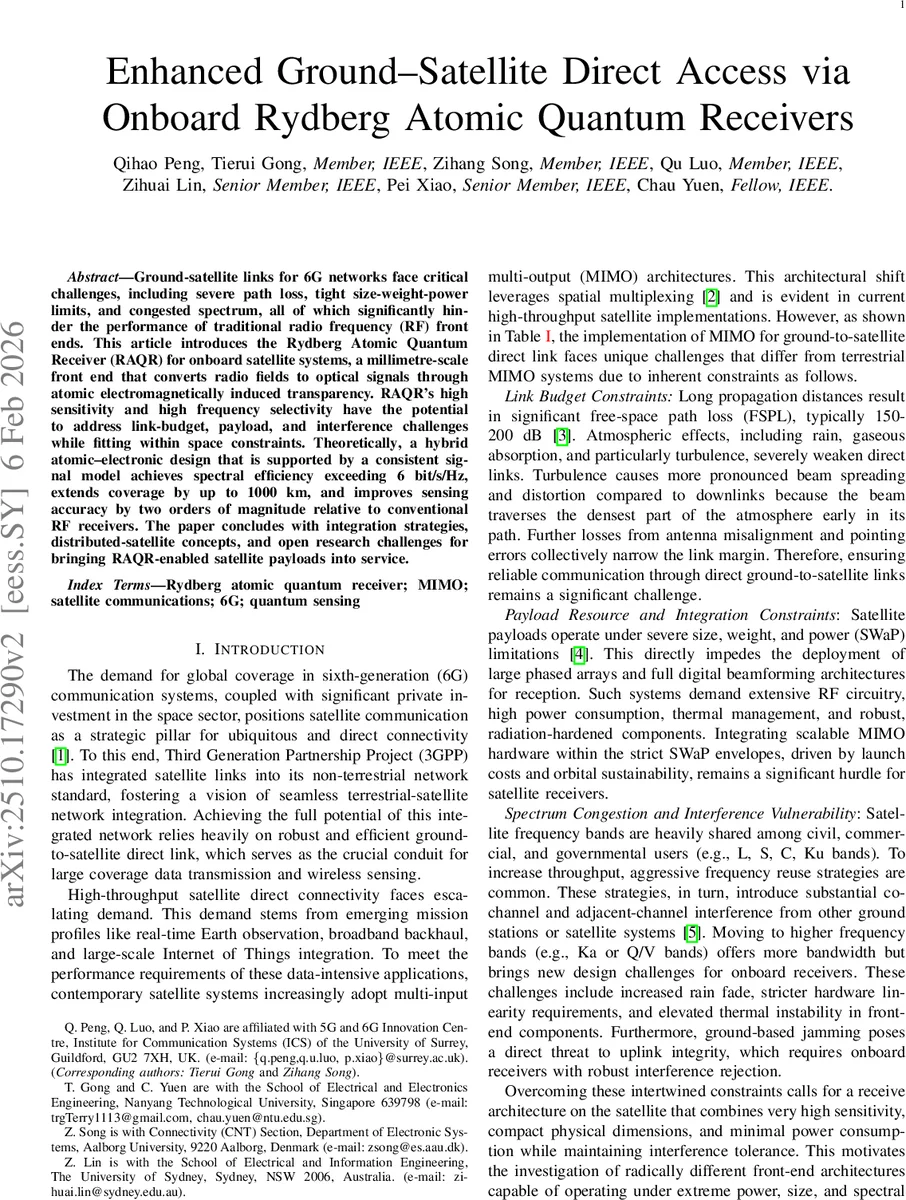

Enhanced Ground-Satellite Direct Access via Onboard Rydberg Atomic Quantum Receivers

Ground-satellite links for 6G networks face critical challenges, including severe path loss, tight size-weight-power limits, and congested spectrum, all of which significantly hinder the performance of traditional radio frequency (RF) front ends. This article introduces the Rydberg Atomic Quantum Receiver (RAQR) for onboard satellite systems, a millimeter-scale front end that converts radio fields to optical signals through atomic electromagnetically induced transparency. RAQR’s high sensitivity and high frequency selectivity address link budget, payload, and interference challenges while fitting within space constraints. A hybrid atomic-electronic design and supporting signal model demonstrate enhanced data rate, coverage, and sensing accuracy relative to conventional RF receivers. The article concludes with integration strategies, distributed-satellite concepts, and open research problems for bringing RAQR-enabled satellite payloads into service.

💡 Research Summary

The paper introduces the Rydberg Atomic Quantum Receiver (RAQR) as a novel front‑end solution for ground‑to‑satellite links in emerging 6G networks. Conventional RF front‑ends on satellites suffer from three intertwined constraints: extreme free‑space path loss (150‑200 dB), strict size‑weight‑power (SWaP) budgets that limit large phased‑array antennas, and severe spectrum congestion leading to co‑channel and adjacent‑channel interference. RAQR addresses these issues by converting incoming RF fields directly into optical signals using electromagnetically induced transparency (EIT) in a vapor cell of highly excited Rydberg atoms (typically cesium or rubidium).

The device operates with two counter‑propagating lasers (probe and coupling) that prepare the atoms in a specific Rydberg state. An incident RF tone drives a transition between two nearby Rydberg levels, producing Autler‑Townes splitting of the EIT resonance. In a homodyne configuration this splitting yields a direct measurement of RF amplitude; in a super‑heterodyne configuration a strong local‑oscillator RF field is added, generating a beat note that encodes both amplitude and phase of the target signal onto the probe laser intensity. The optical output is then detected either by a simple direct photodiode (DIOD) or by a balanced coherent detection scheme (BCOD) that reaches the photon‑shot‑noise limit.

A rigorous signal model is built from the Beer‑Lambert law through the Maxwell‑Bloch equations to the Lindblad master equation, linking microscopic quantum dynamics to macroscopic baseband observables. This unified framework enables analytical evaluation of signal‑to‑noise ratio, bit‑error rate, and spectral efficiency. The authors claim that, under realistic laboratory conditions, RAQR can achieve field sensitivities on the order of nV cm⁻¹ Hz⁻½ at GHz frequencies, and theoretical analyses suggest sub‑µV cm⁻¹ Hz⁻½ performance is attainable. Spectral selectivity is sub‑kHz, allowing quasi‑continuous coverage from MHz to THz by tuning laser frequencies and selecting appropriate Rydberg transitions, or by employing multiple atomic species simultaneously.

Because the effective aperture of RAQR is defined by the laser beam size rather than the RF wavelength, the receiver can be fabricated on a millimeter‑scale chip, independent of Ka, Q, or V‑band frequencies. This size independence, combined with the vacuum and low‑temperature environment of space (which reduces collisional broadening and thermal drift), makes RAQR especially attractive for satellite payloads where SWaP is at a premium. The authors propose a hybrid architecture in which conventional low‑noise amplifiers and digital baseband processing handle wide‑band, high‑rate modulation, while the RAQR module provides ultra‑low‑noise, high‑selectivity front‑end filtering and pre‑amplification. Such a split design can replace large antenna arrays with a single vapor cell, potentially enabling MIMO‑like functionality through multiplexed laser beams or multiple vapor cells.

Integration challenges are acknowledged: stable, space‑qualified laser sources, micro‑fabricated vapor cells, radiation‑hardening, and long‑term frequency drift compensation must be solved before flight. The paper outlines research directions including on‑board laser frequency locking, thermal management, multi‑species cell development, and algorithms for real‑time calibration in orbit. It also envisions distributed‑satellite constellations where RAQR units share a common optical platform (e.g., a laser communications terminal) and cooperate to provide robust, interference‑resilient uplink links.

In summary, the RAQR concept promises to overcome the fundamental limitations of traditional satellite RF receivers by delivering orders‑of‑magnitude higher sensitivity, wavelength‑independent compactness, and unparalleled spectral selectivity, thereby opening a pathway toward high‑throughput, low‑power, and interference‑robust ground‑to‑satellite communications for future 6G networks.
