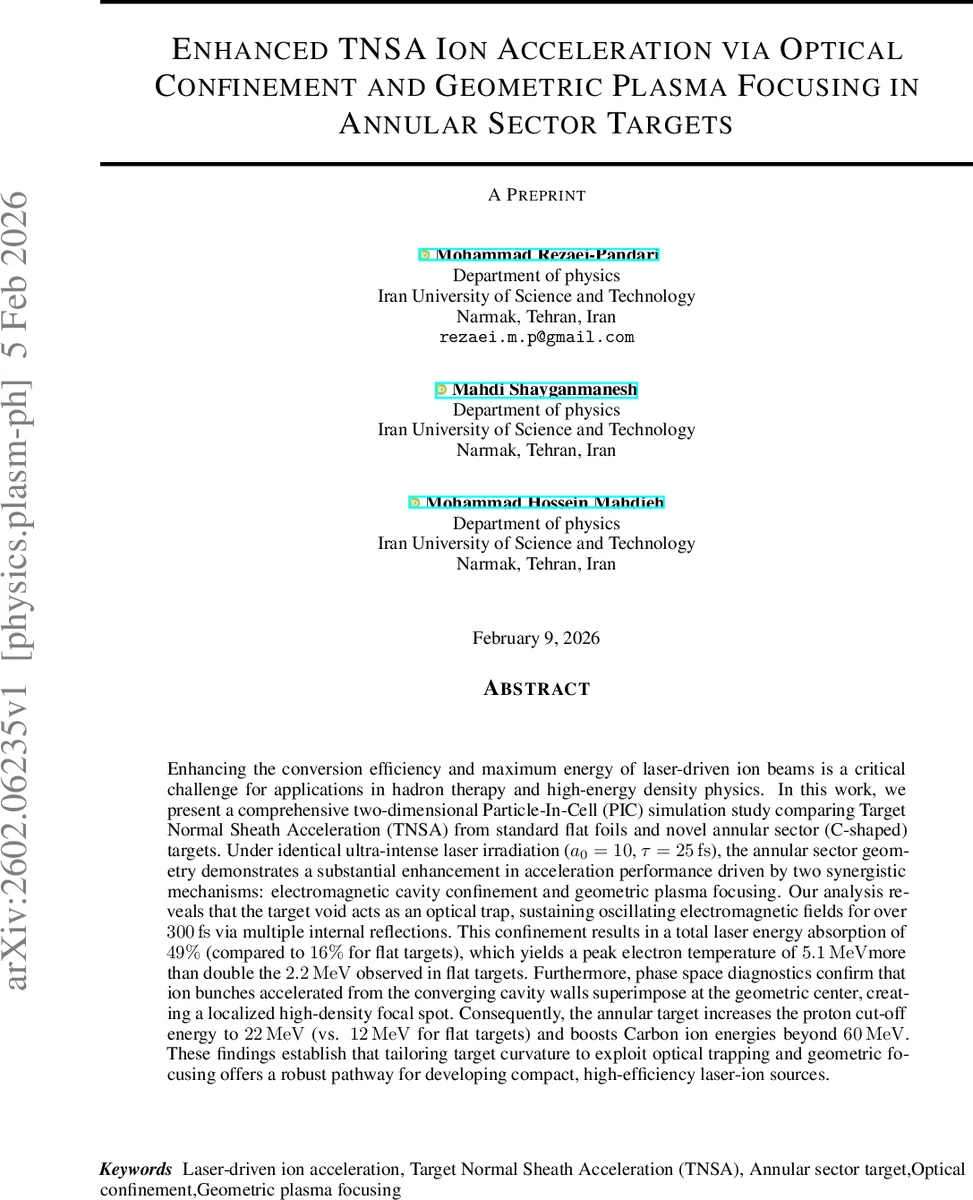

Enhanced TNSA Ion Acceleration via Optical Confinement and Geometric Plasma Focusing in Annular Sector Targets

Enhancing the conversion efficiency and maximum energy of laser-driven ion beams is a critical challenge for applications in hadron therapy and high-energy density physics. In this work, we present a comprehensive two-dimensional Particle-In-Cell (PIC) simulation study comparing Target Normal Sheath Acceleration (TNSA) from standard flat foils and novel annular sector (C-shaped) targets. Under identical ultra-intense laser irradiation (a0=10, tau=25 fs), the annular sector geometry demonstrates a substantial enhancement in acceleration performance driven by two synergistic mechanisms: electromagnetic cavity confinement and geometric plasma focusing. Our analysis reveals that the target void acts as an optical trap, sustaining oscillating electromagnetic fields for over 300fs via multiple internal reflections. This confinement results in a total laser energy absorption of 49% (compared to 16% for flat targets), which yields a peak electron temperature of 5.1 MeV more than double the 2.2MeV observed in flat targets. Furthermore, phase space diagnostics confirm that ion bunches accelerated from the converging cavity walls superimpose at the geometric center, creating a localized high-density focal spot. Consequently, the annular target increases the proton cut-off energy to 22MeV (vs. 12MeV for flat targets) and boosts Carbon ion energies beyond 60MeV. These findings establish that tailoring target curvature to exploit optical trapping and geometric focusing offers a robust pathway for developing compact, high-efficiency laser-ion sources.

💡 Research Summary

This paper presents a systematic two‑dimensional particle‑in‑cell (PIC) investigation of Target Normal Sheath Acceleration (TNSA) from conventional flat foils compared with a novel annular‑sector (C‑shaped) target. Both targets are irradiated by identical ultra‑intense laser pulses (λ₀ = 800 nm, a₀ = 10, τ = 25 fs, focal spot w₀ = 4 µm) in a simulation domain of 50 µm × 30 µm with a spatial resolution of λ₀/32. The bulk material is fully ionized CH plasma (nₑ ≈ 10⁶ n_cr, n_C = n_H = 26.44 n_cr) and a pre‑plasma gradient (δ = 0.1 µm) is added to mimic finite laser contrast. The flat foil is 1 µm thick and 27 µm wide, while the annular‑sector target consists of a 300° arc of inner radius 6 µm, thickness 1 µm, and a 60° opening that allows the laser to enter the central void before interacting with the concave inner surface.

The simulations reveal two synergistic mechanisms that dramatically improve ion acceleration in the annular geometry. First, the central void acts as an optical cavity. After the laser pulse penetrates the opening, it undergoes multiple internal reflections off the conductive walls, trapping electromagnetic energy for more than 300 fs. This “optical confinement” raises the total laser absorption from 16 % (flat foil) to 49 % and sustains electron heating far beyond the single‑pass interaction typical of flat targets. Consequently, the hot‑electron temperature peaks at k_B Tₑ ≈ 4.5 MeV (four times higher than the 1.2 MeV observed for the flat foil) and remains at ≈0.68 MeV even at 420 fs, whereas the flat case cools to ≈0.18 MeV.

Second, the curved plasma lining the cavity focuses the ion streams. As the heated plasma expands radially inward, ion bunches accelerated from opposite walls converge toward the geometric center (y = 15 µm). This geometric plasma focusing creates a dense, localized hotspot where the sheath field persists and even fluctuates, providing a prolonged acceleration stage. The combined effect yields a proton cut‑off energy of ≈22 MeV (versus 12 MeV for the flat foil) and a carbon ion cut‑off exceeding 60 MeV (versus ≈35 MeV). Proton and carbon effective temperatures are also significantly higher (2.7 MeV and 7 MeV respectively).

Temporal analysis of the particle spectra shows step‑like increases in ion temperatures that correlate with the transit time of the trapped laser across the cavity, confirming the role of the optical cavity in modulating the heating dynamics. Electron‑ion recirculation within the cavity prevents rapid cooling, maintains a strong electrostatic field, and extends the acceleration window well beyond the laser pulse duration.

The authors conclude that tailoring target curvature to combine optical confinement with geometric focusing offers a robust pathway to increase laser‑to‑ion energy conversion efficiency and achieve higher ion energies in a compact setup. The study suggests that further optimization of the sector angle, wall thickness, and material composition, as well as three‑dimensional simulations and experimental validation, could lead to practical high‑efficiency laser‑driven ion sources for applications such as hadron therapy, proton radiography, and high‑energy‑density physics.
