Vacuum Brazing

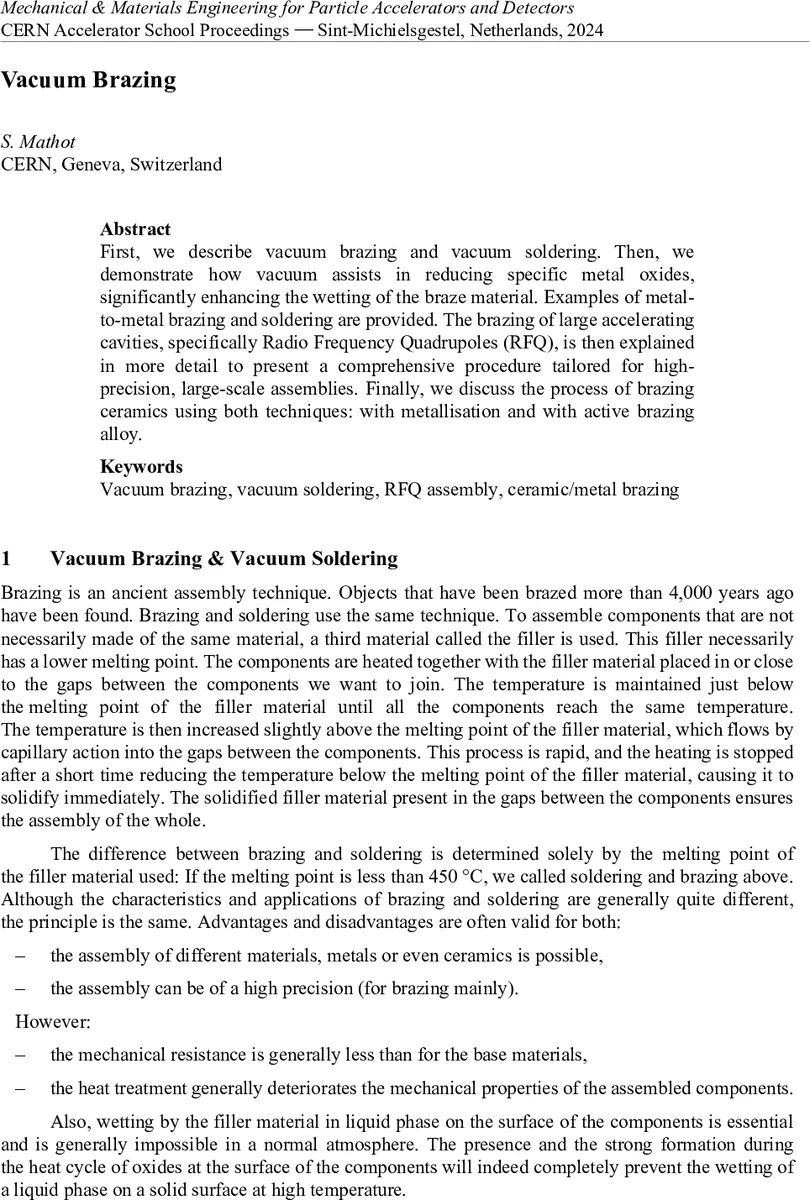

First, we describe vacuum brazing and vacuum soldering. Then, we demonstrate how vacuum assists in reducing specific metal oxides, significantly enhancing the wetting of the braze material. Examples of metal-to-metal brazing and soldering are provided. The brazing of large accelerating cavities, specifically Radio Frequency Quadrupoles (RFQ), is then explained in more detail to present a comprehensive procedure tailored for high-precision, large-scale assemblies. Finally, we discuss the process of brazing ceramics using both techniques: with metallisation and with active brazing alloy.

💡 Research Summary

The paper provides a comprehensive overview of vacuum brazing and vacuum soldering, focusing on their underlying principles, oxide‑reduction mechanisms, and practical implementations in high‑precision accelerator components. It begins by clarifying that both processes rely on a filler metal with a lower melting point than the base materials; the distinction lies in the filler’s melting temperature—below 450 °C for soldering, above for brazing. In atmospheric conditions, surface oxides inhibit wetting, but in a high‑vacuum furnace the partial pressure of oxygen can be reduced below the equilibrium value for many metals, causing oxides to decompose and exposing a clean surface for the liquid filler. For copper and silver‑copper alloys, the equilibrium oxygen pressure at 800 °C is about 1.3 × 10⁻⁶ Torr, easily achieved in CERN’s vacuum furnaces, enabling excellent wetting. Aluminum oxide, however, requires an unattainably low pressure (≈2.5 × 10⁻⁴¹ Torr), so direct brazing of alumina is impossible without special tricks such as active brazing alloys or metallisation.

The authors list recommended gap sizes and temperatures for common brazing alloys (Table 1), emphasizing that gaps as small as 25 µm (zero‑gap technique) are often required, which in turn demands machining tolerances of ±0.01 mm, flatness of 0.02 mm and surface finishes of Ra 0.8 µm. Such precision yields assemblies with minimal deformation and high‑quality thermal or electrical contacts, suitable for ultra‑high‑vacuum (UHV) applications.

Several CERN‑specific metal‑to‑metal brazing examples illustrate the technique’s versatility. Copper‑stainless‑steel joints are routinely produced using a nickel‑plated stainless surface and a silver‑copper‑palladium alloy, achieving a uniform neck and clean joint. Large heat‑exchanger tubes (HET) for the LHC consist of ~1 700 copper tubes each 15 m long, joined to stainless end‑pieces via a copper sleeve that is first vacuum‑brazed and then electron‑beam welded. Thin stainless foils (0.1 mm) and large electropolished hoods (610 mm diameter) are also brazed with minimal warpage, demonstrating the method’s suitability for delicate, thin‑walled structures.

The paper further discusses brazing of dissimilar metals: niobium‑stainless‑steel (using pure copper as filler), molybdenum‑stainless‑steel (requiring a small joint area), copper‑titanium‑stainless‑steel (using a stainless ring as an interlayer to avoid brittle intermetallics), and Glidcop‑CuNi (necessitating a nickel‑copper diffusion barrier).

Vacuum soldering, performed at temperatures around 200 °C, is limited to high‑purity tin‑silver or tin‑lead alloys with very low vapor pressures. The authors present the soldering of high‑temperature superconducting (HTS) tapes for LHC current leads as a case study: the BSCCO‑Ag‑Au tapes are stacked and soldered with Sn‑Ag, then attached to stainless cylinders with Sn‑Pb, all without flux to preserve the delicate superconducting filaments.

A major focus of the paper is the vacuum brazing of Radio‑Frequency Quadrupole (RFQ) accelerating cavities. Each Linac4 RFQ consists of three one‑meter modules, each 400 mm in diameter and weighing 450 kg; an HF‑RFQ version uses smaller 500 mm modules. The assembly requires two brazing steps: first, the four vanes are joined horizontally, then the flanges are attached vertically. Mechanical tolerances are extremely tight (e.g., vane tip shape ±5–10 µm, vane position ±15–30 µm). To meet these, the authors employ alternating machining and intermediate heat treatments, limit the final material removal to ~150 µm on critical surfaces, and use slow heating/cooling ramps to reduce stress‑induced distortion. Visual inspection after each brazing step confirms continuous filler flow without excess overflow, especially on internal cavity surfaces.

Finally, the paper addresses ceramic joining. Two approaches are described: (1) metallisation of the ceramic surface (e.g., nickel or copper plating) followed by conventional vacuum brazing, and (2) use of active brazing alloys containing elements such as Ti that chemically bond to the ceramic, allowing direct vacuum brazing of alumina or other oxides.

In conclusion, vacuum brazing and soldering provide clean, high‑precision, and versatile joining solutions for a wide range of accelerator components, from large metallic structures to delicate ceramic assemblies. Success hinges on proper filler selection, surface preparation (plating or metallisation), and carefully designed thermal cycles that respect the stringent dimensional tolerances required by modern high‑energy physics hardware.
