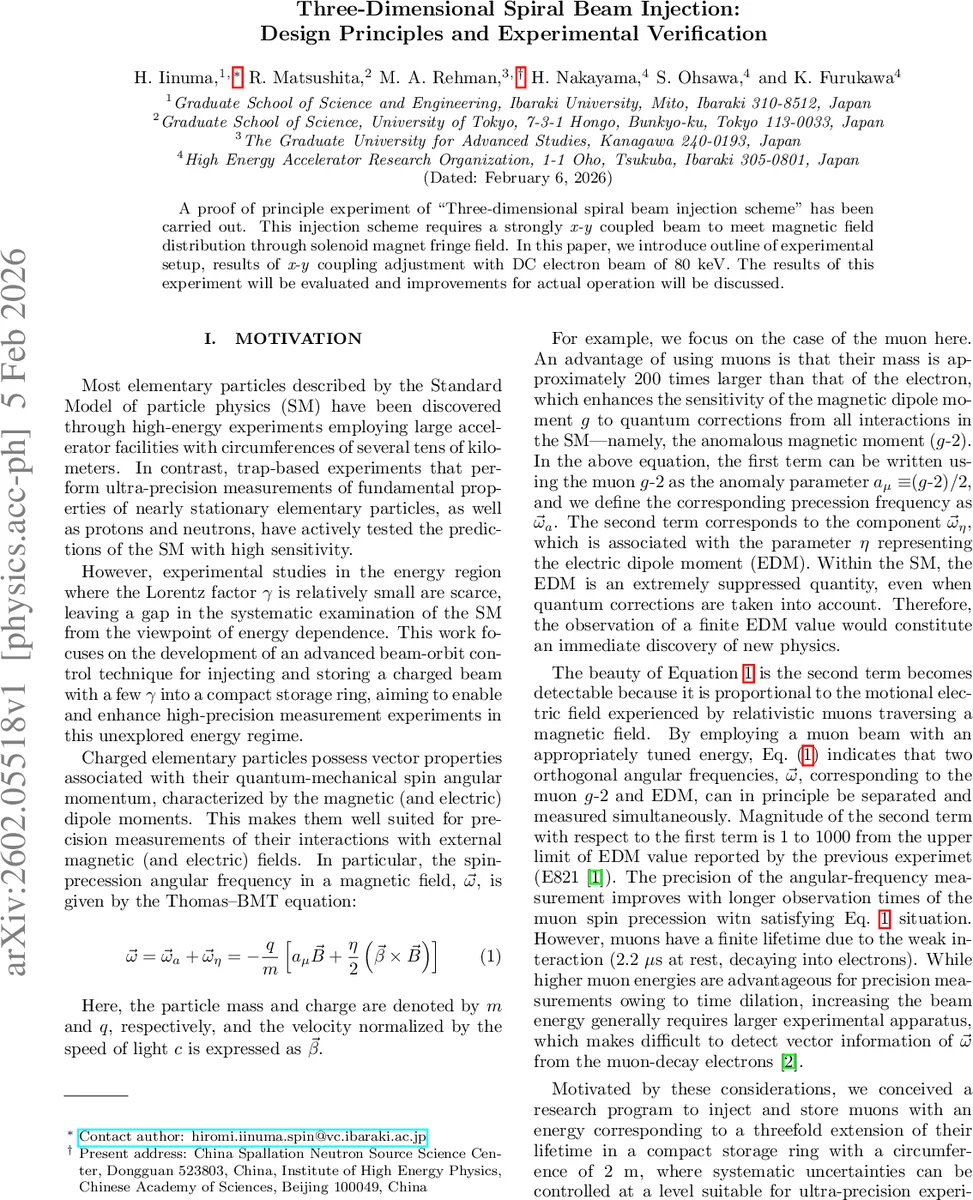

Three-Dimensional Spiral Beam Injection:Design Principles and Experimental Verification

A proof of principle experiment of Three-dimensional spiral beam injection scheme has been carried out. This injection scheme requires a strongly x-y coupled beam to meet magnetic field distribution through solenoid magnet fringe field. In this paper, we introduce outline of experimental setup, results of x-y coupling adjustment with DC electron beam of 80 keV. The results of this experiment will be evaluated and improvements for actual operation will be discussed.

💡 Research Summary

The paper introduces a novel injection technique called three‑dimensional (3‑D) spiral beam injection, which relies exclusively on the fringe field of an axis‑symmetric solenoid magnet to steer a charged particle beam into a compact storage ring. Unlike conventional injection schemes that employ external devices such as septum magnets or inflectors, this method uses the naturally occurring radial magnetic component (B_R) in the solenoid fringe to provide both transverse focusing and longitudinal acceleration, thereby eliminating additional magnetic perturbations near the storage region.

The authors first develop the theoretical framework. They decompose particle motion in the solenoid into cyclotron rotation (azimuthal ϕ direction) and motion along the solenoid axis. The integrated radial field experienced by a particle, ⟨B_R L⟩ = ∫ B_R ds, must be uniform across the beam to avoid vertical (z‑axis) divergence. This requirement translates into a strong x‑y coupling (correlation) in the beam’s phase space at the injection point. By backward‑tracking trajectories from the storage region to the injection point, the authors derive the required linear correlations: negative slopes for x‑x′, y‑y′, x‑y, and x′‑y′, with numerical values (e.g., x‑x′ ≈ ‑2.747 rad/m, y‑y′ ≈ ‑0.550 rad/m) obtained from OPERA‑3D magnetic field simulations. They demonstrate that reversing the sign of the x‑y term leads to a rapid spread of ⟨B_R L⟩ among trajectories, which in turn produces a pronounced vertical divergence, as illustrated in Figures 3‑6.

To translate these correlation requirements into practical beam optics, the authors calculate Twiss parameters (α_x, β_x, α_y, β_y) that generate the desired coupling. Three representative sets are presented: type‑(A) directly derived from the backward‑tracking solution, and types (B) and (C) which intentionally perturb the correlations to explore tolerances. Table II lists the α and β values (e.g., α_x ≈ 27 m/rad, β_x ≈ 10 m) that produce a “ribbon‑like” flat beam with the prescribed slopes.

The experimental verification uses an 80 keV DC electron gun, a nitrogen‑filled chamber, and a solenoid with a well‑characterized fringe field. The electron beam ionizes the gas, and the resulting fluorescence is imaged in near‑real time with a CCD camera. By adjusting the gun voltage, focusing lenses, and solenoid current, the researchers tune the x‑y coupling while observing the beam trajectory. When the coupling matches the type‑(A) parameters, the beam follows a clear 3‑D spiral for 3–4 turns (≈ 1 m path length) with vertical spread remaining below 1 mm. Phase‑space measurements confirm the negative x‑y slope and the expected focusing behavior. In contrast, configurations with altered coupling (type‑B/C) quickly develop vertical divergence, confirming the sensitivity predicted by the theory.

The authors discuss limitations of the proof‑of‑principle setup: the physical size of the test apparatus restricts precise mapping of the fringe field, and the electron beam’s energy spread is slightly larger than assumed, leading to modest deviations in ⟨B_R L⟩ uniformity. They also outline the challenges of scaling the method to muon beams for g‑2 and EDM experiments. Muons have a short lifetime (2.2 µs at rest) and require relativistic energies (γ ≈ 3) to extend the observation time; therefore, the solenoid field strength, fringe length, and beam optics must be re‑optimized for higher rigidity.

Future improvements suggested include: (1) high‑resolution 3‑D magnetic field mapping and active compensation of fringe imperfections; (2) stabilization of the electron gun’s energy spread to tighten the ⟨B_R L⟩ distribution; (3) implementation of automated tuning algorithms, possibly using machine‑learning techniques, to rapidly converge on the optimal coupling; and (4) design of larger‑scale solenoids capable of handling the higher magnetic rigidity of muon beams while preserving the fringe‑field‑only injection concept.

In conclusion, the study successfully demonstrates that a solenoid’s fringe field can alone generate the required 3‑D spiral trajectory and strong x‑y coupling needed for injection into a compact storage ring. This approach eliminates external magnetic devices, thereby preserving the ultra‑high magnetic field uniformity essential for precision measurements. The experimental results align closely with the theoretical predictions, validating the design methodology. The technique promises to enable compact, high‑precision storage rings for muon g‑2 and EDM experiments, potentially reducing the scale and cost of future high‑energy physics facilities while opening new avenues for exploring physics beyond the Standard Model.
