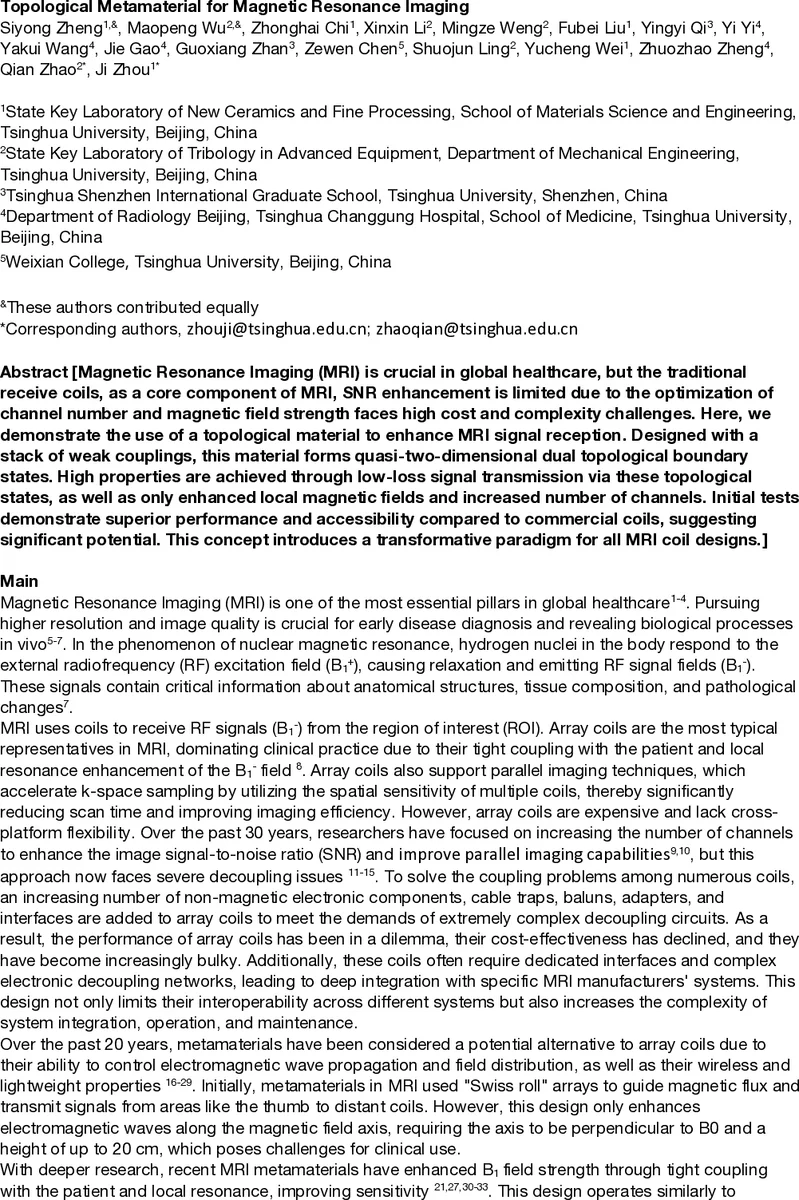

Topological Metamaterial for Magnetic Resonance Imaging

Magnetic Resonance Imaging (MRI) is crucial in global healthcare, but the traditional receive coils, as a core component of MRI, SNR enhancement is limited due to the optimization of channel number and magnetic field strength faces high cost and complexity challenges. Here, we demonstrate the use of a topological material to enhance MRI signal reception. Designed with a stack of weak couplings, this material forms quasi-two-dimensional dual topological boundary states. High properties are achieved through low-loss signal transmission via these topological states, as well as only enhanced local magnetic fields and increased number of channels. Initial tests demonstrate superior performance and accessibility compared to commercial coils, suggesting significant potential. This concept introduces a transformative paradigm for all MRI coil designs.

💡 Research Summary

The manuscript introduces a novel magnetic‑resonance‑imaging (MRI) receive‑coil concept based on a topological metamaterial, termed Topological Magnetic Resonance Metamaterial (TMRM). Conventional array coils improve signal‑to‑noise ratio (SNR) by increasing the number of receive channels or by operating at higher static magnetic fields, but these approaches encounter severe decoupling problems, added electronic components, high cost, bulkiness, and limited interoperability across scanner platforms. Metamaterials have been explored as lightweight, wireless alternatives, yet most designs only provide local B1‑ field enhancement near the region of interest (ROI) and suffer from signal attenuation as the field propagates toward the receive coil.

TMRM overcomes these limitations by exploiting weak‑topological‑insulator (WTI) theory to create pseudo‑two‑dimensional dual topological boundary states (DTBS). The authors start from the Su‑Schrieffer‑Heeger (SSH) model, implementing it as an electrical circuit composed of alternating inductors and capacitors that emulate the two hopping amplitudes of the SSH chain. By arranging many such circuit “sheets” in a stack, and carefully controlling inter‑sheet spacing and curvature, they engineer strong coupling at selected edges (external topological boundary states, ETBS) and weak coupling elsewhere (internal topological boundary states, ITBS). This results in low‑loss, topologically protected propagation of the MR signal along the boundary modes while simultaneously concentrating the B1‑ field at both the ROI and the receive coil.

Simulation work (CST Microwave Studio, SPICE) demonstrates that at 63.8 MHz—the Larmor frequency of a 1.5 T scanner—the stacked sheets support edge‑localized eigenmodes with near‑zero impedance, confirming the formation of DTBS. Prototypes fabricated on standard printed‑circuit‑board (PCB) technology reproduce the predicted frequency response. Dual‑Angle Method measurements in a water phantom verify that the B1+ field is confined to a one‑dimensional boundary, evidencing the topological nature of the fabricated metamaterial.

For in‑vivo validation, ten healthy volunteers were scanned on a 1.5 T clinical scanner using three standard sequences (T1‑weighted spin‑echo, T2‑weighted fast spin‑echo, and T2‑weighted multi‑echo). TMRM was placed in conjunction with the built‑in spine coil (SP) and, separately, with the body birdcage coil (BC). Compared with a commercial four‑channel flexible coil (4‑ch FLC) and a dedicated twelve‑channel wrist coil (12‑ch WR), TMRM achieved the following:

• With the SP, muscle and cartilage SNRs were comparable to the 12‑ch WR and significantly higher than the 4‑ch FLC; bone SNR was slightly lower than the 12‑ch WR but still acceptable.
• Image quality scores (subjective radiologist assessment) were on par with the 12‑ch WR and superior to the 4‑ch FLC.
• In a water phantom, TMRM + SP matched the 12‑ch WR SNR, while TMRM + BC outperformed the 4‑ch FLC but remained below the 12‑ch WR, reflecting the higher intrinsic sensitivity of the spine coil.
• Uniformity analyses showed markedly improved field homogeneity for TMRM configurations relative to the conventional coils.

A key functional feature is the state‑dependent behavior of TMRM: during RF transmission (B1+), the metamaterial undergoes a topological phase transition to a trivial state, thereby not amplifying the transmit field and avoiding interference with excitation. During reception (B1‑), the DTBS are activated, providing a “movable bridge” that channels the MR signal with minimal resistive loss to the receive coil, effectively increasing induced current without additional active electronics.

The authors discuss several advantages: passive operation (no external power or baluns), compatibility with existing scanner hardware, reduction of the complex decoupling networks required for high‑channel arrays, and the possibility of tailoring the number and spatial distribution of topological edge modes through simple geometric adjustments (sheet spacing, curvature). They also acknowledge limitations: validation is limited to 1.5 T field strength; performance at higher fields (3 T, 7 T) remains to be demonstrated; long‑term mechanical and thermal stability of the stacked PCB sheets under clinical use has not been assessed; and large‑scale manufacturing processes for consistent topological coupling need development.

Future directions suggested include extending the design to higher frequencies, creating three‑dimensional topological networks for multi‑directional signal routing, integrating active tuning elements (e.g., varactors) to enable real‑time control of the topological phase, and performing extensive multi‑center clinical trials to quantify diagnostic benefit and cost‑effectiveness.

In summary, this work pioneers the application of topological physics to MRI coil technology, delivering a metamaterial that simultaneously provides low‑loss signal transmission, enhanced local B1‑ field, and an effective increase in receive channels without the penalties of conventional array coils. If the approach can be scaled to higher field strengths and standardized for production, it promises to reduce hardware complexity, lower costs, and improve image quality across a broad range of MRI applications.
