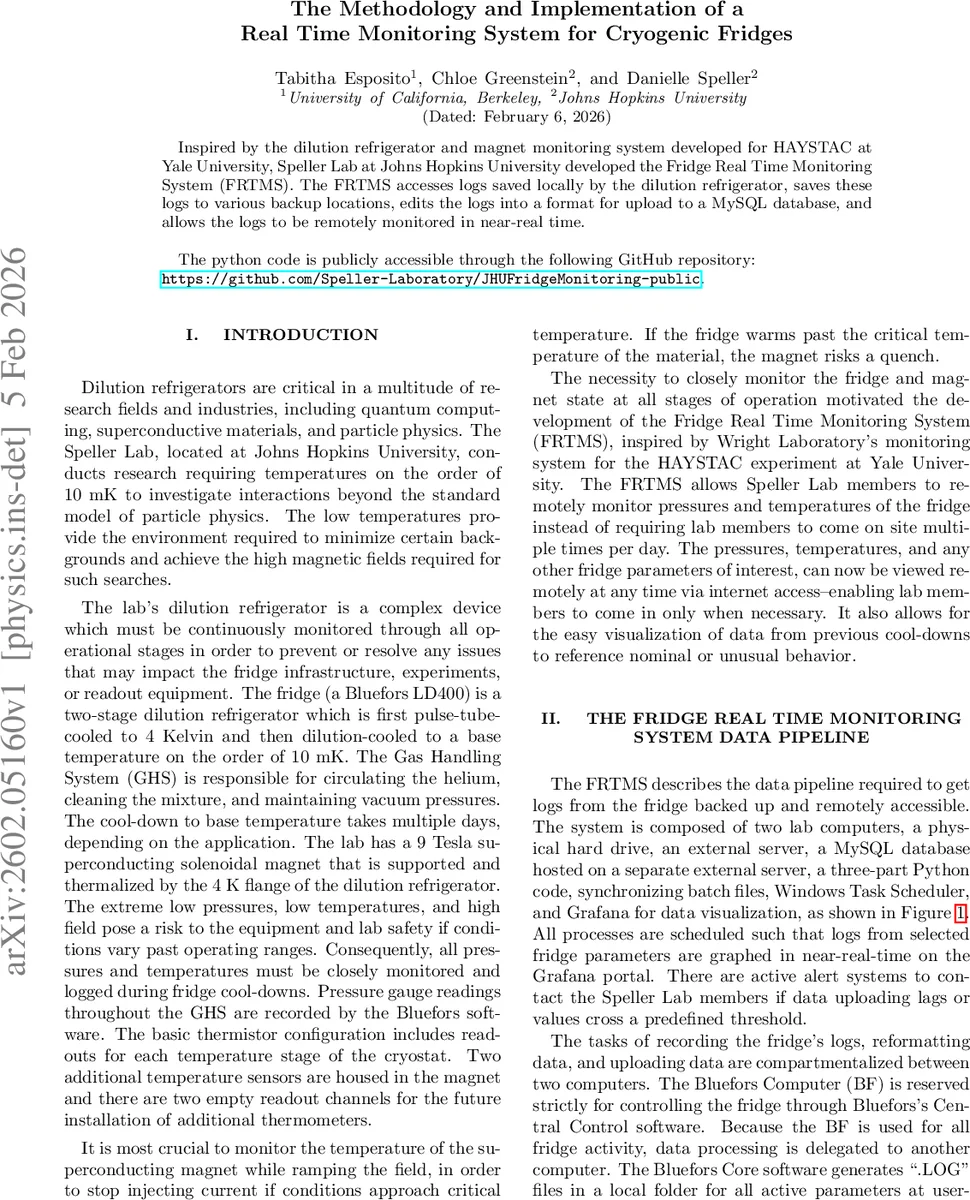

The Methodology and Implementation of a Real Time Monitoring System for Cryogenic Fridges

Inspired by the dilution refrigerator and magnet monitoring system developed for HAYSTAC at Yale University, Speller Lab at Johns Hopkins University developed the Fridge Real Time Monitoring System (FRTMS). The FRTMS accesses logs saved locally by the dilution refrigerator, saves these logs to various backup locations, edits the logs into a format for upload to a MySQL database, and allows the logs to be remotely monitored in near-real time.

💡 Research Summary

The paper presents the design, implementation, and operational experience of the Fridge Real‑Time Monitoring System (FRTMS) developed by the Speller Laboratory at Johns Hopkins University. The motivation stems from the need to continuously monitor a Bluefors LD400 dilution refrigerator, which operates at temperatures near 10 mK for quantum‑computing, superconductivity, and particle‑physics experiments. Traditional monitoring required frequent on‑site checks of pressure, temperature, and pump status logs, which was labor‑intensive and prone to delayed response in case of anomalies. Inspired by the HAYSTAC experiment’s monitoring framework, the authors built a system that automatically captures, backs up, reformats, and visualizes refrigerator data in near‑real time, while providing robust alerting mechanisms.

The hardware architecture consists of two dedicated Windows PCs: the Bluefors Computer (BF), which runs the proprietary Bluefors control software and writes .LOG files every minute, and an Interface Computer (IC) that performs data processing. BF uses Windows Task Scheduler together with FreeFileSync to mirror the local log directory to a 2 TB external hard drive and to the Johns Hopkins VAST storage system. The VAST copy is then mirrored to the IC, also via scheduled batch commands.

On the IC, three Python scripts (executed under an Anaconda environment) run sequentially every minute with a 15‑second stagger. The first script parses the raw .LOG files, extracts a predefined set of parameters (six pressure channels, eight temperature channels, flow‑meter readings, CPA and turbo pump status), handles missing timestamps by inserting dummy values, and writes the cleaned data to intermediate text files. It distinguishes between “current‑day” files (which remain open for continuous appending) and “previous‑day” files (which are closed after full processing). The second script connects to a MySQL database (hosted on a JHU physics server) using the MySQL Connector/Python, checks a metadata table to avoid re‑uploading already processed files, and inserts the new rows, converting dummy placeholders to SQL NULLs. The database schema uses a timestamp column as the primary key and stores all measurements as DECIMAL types; separate tables are defined for pressures (p1‑p6), temperatures (temp1‑temp8), flow, CPA status, and turbo status. As of the writing, the database holds ~5.2 GB of two‑year data. The third script monitors the freshness of files on VAST, the IC, and the MySQL tables; if the lag between the most recent update and the current time falls outside configurable minimum/maximum thresholds, an email alert is sent via Python’s EmailMessage module.

Visualization is achieved with Grafana, which is hosted on the JHU Physics and Astronomy department server and accessed remotely through a protected login. Grafana queries the MySQL tables to produce time‑series panels for each monitored parameter, updating in near‑real time. The main dashboard shows the last 30 days of data; older cool‑down runs are migrated into run‑specific tables and displayed on separate dashboards for detailed post‑mortem analysis.

Alerting is two‑pronged. First, the Python email script provides a backup “lag monitoring” alert if data ingestion stalls. Second, Grafana’s built‑in alerting engine is configured with a Slack webhook; it issues alerts for both lag detection (by querying the most recent 50 entries and flagging any older than 20 minutes) and for threshold violations (e.g., temperature exceeding safe limits). Slack notifications serve as rapid, team‑wide messages, mirroring the practice used in the HAYSTAC experiment.

The system has been deployed across several refrigerator cool‑down cycles with reliable performance. The 1‑minute update interval proved sufficient for operational oversight, and no further speed optimizations were required. The authors note that the current architecture, while functional, has several limitations: reliance on Windows Task Scheduler and FreeFileSync may hinder portability; the log‑parsing code is tightly coupled to the specific Bluefors .LOG format, making it vulnerable to future software changes; long‑term data retention and backup strategies are not fully defined; and database credentials are stored in plain‑text environment files, presenting a security risk.

Future improvements suggested include containerizing the entire pipeline with Docker or similar technologies to ensure environment reproducibility; replacing the 1‑minute polling with an event‑driven file‑system watcher (e.g., inotify) for true real‑time sync; migrating from MySQL to a purpose‑built time‑series database such as InfluxDB or TimescaleDB to improve compression and query performance; securing MySQL connections with TLS/VPN and employing secret‑management tools for credential handling; and modularizing the parsing logic to simplify adaptation to new log formats.

In conclusion, the FRTMS provides a practical, open‑source solution that dramatically reduces manual monitoring effort, enhances safety through timely alerts, and offers a scalable framework that other low‑temperature research groups can adopt or extend. The paper acknowledges contributions from the HAYSTAC team, JHU IT and Advanced Research Computing staff, and several fellowships that supported the work, and it details individual author contributions.
