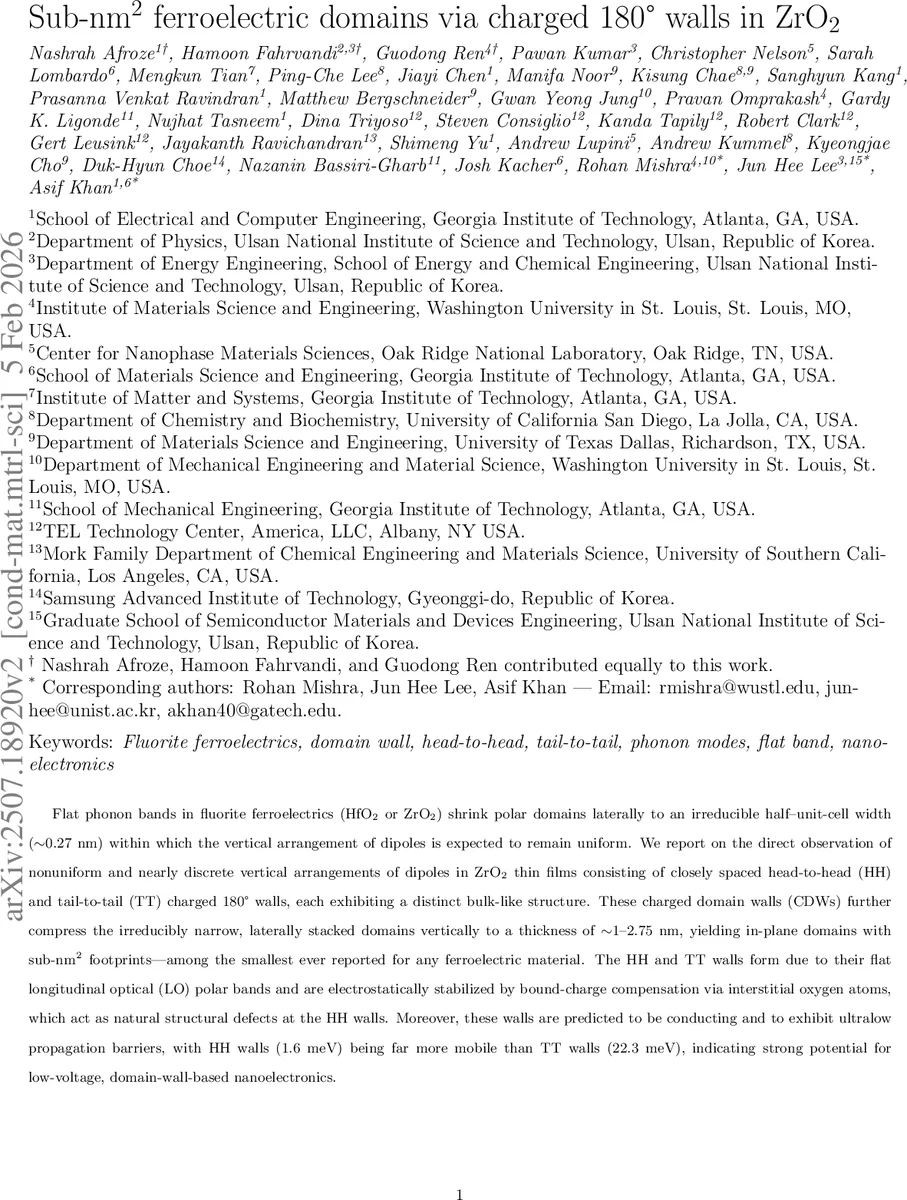

Sub-nm2 ferroelectric domains via charged 180 degree walls in ZrO2

Flat phonon bands in fluorite ferroelectrics (HfO2 or ZrO2) shrink polar domains laterally to an irreducible half-unit-cell width (0.27 nm) within which the vertical arrangement of dipoles is expected to remain uniform. We report on the direct observation of nonuniform and nearly discrete vertical arrangements of dipoles in ZrO2 thin films consisting of closely spaced head-to-head (HH) and tail-to-tail (TT) charged 180 degree walls, each exhibiting a distinct bulk-like structure. These charged domain walls (CDWs) further compress the irreducibly narrow, laterally stacked domains vertically to a thickness of 1-2.75 nm, yielding in-plane domains with sub-nm2 footprints-among the smallest ever reported for any ferroelectric material. The HH and TT walls form due to their flat longitudinal optical (LO) polar bands and are electrostatically stabilized by bound-charge compensation via interstitial oxygen atoms, which act as natural structural defects at the HH walls. Moreover, these walls are predicted to be conducting and to exhibit ultralow propagation barriers, with HH walls (1.6 meV) being far more mobile than TT walls (22.3 meV), indicating strong potential for low-voltage, domain-wall-based nanoelectronics.

💡 Research Summary

Fluorite‑structured zirconia (ZrO₂) has emerged as a promising ferroelectric material compatible with CMOS processes, yet its domain physics remain incompletely understood. In this work, the authors deposit a 10 nm ZrO₂ film on Si, anneal it at 350 °C in N₂, and confirm that the orthorhombic Pca2₁ phase dominates. Using aberration‑corrected scanning transmission electron microscopy (STEM) in both high‑angle annular dark‑field (HAADF) and annular bright‑field (ABF) modes, they directly visualize a striking arrangement of charged 180° domain walls (DWs) that differ fundamentally from the neutral walls typically observed in ferroelectrics.

The ZrO₂ lattice naturally forms alternating polar and non‑polar half‑unit‑cell layers stacked laterally along the
