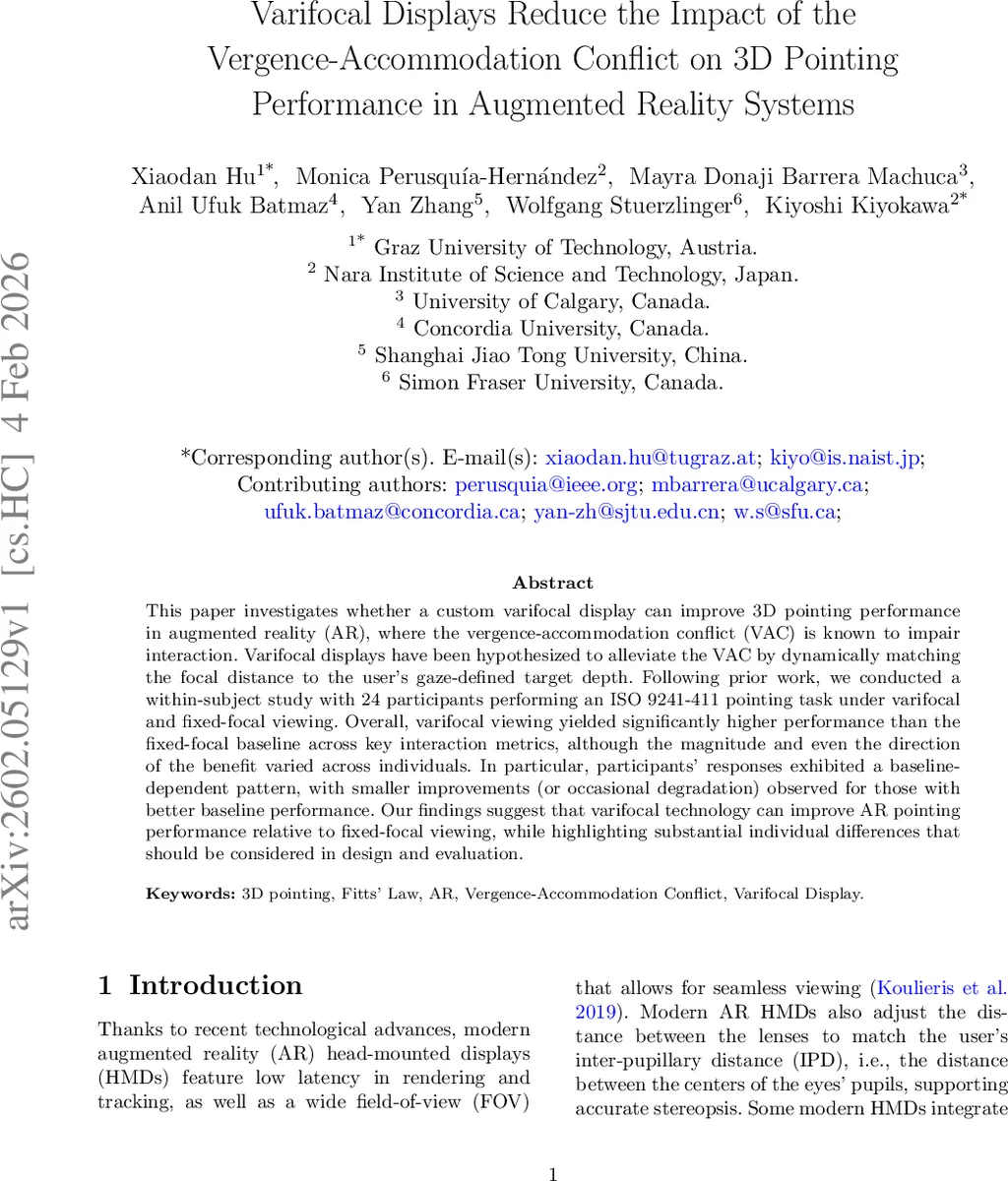

Varifocal Displays Reduce the Impact of the Vergence-Accommodation Conflict on 3D Pointing Performance in Augmented Reality Systems

This paper investigates whether a custom varifocal display can improve 3D pointing performance in augmented reality (AR), where the vergence-accommodation conflict (VAC) is known to impair interaction. Varifocal displays have been hypothesized to alleviate the VAC by dynamically matching the focal distance to the user’s gaze-defined target depth. Following prior work, we conducted a within-subject study with 24 participants performing an ISO 9241-411 pointing task under varifocal and fixed-focal viewing. Overall, varifocal viewing yielded significantly higher performance than the fixed-focal baseline across key interaction metrics, although the magnitude and even the direction of the benefit varied across individuals. In particular, participants’ responses exhibited a baseline-dependent pattern, with smaller improvements (or occasional degradation) observed for those with better baseline performance. Our findings suggest that varifocal technology can improve AR pointing performance relative to fixed-focal viewing, while highlighting substantial individual differences that should be considered in design and evaluation.

💡 Research Summary

This paper investigates whether a custom varifocal augmented‑reality (AR) head‑mounted display can mitigate the vergence‑accommodation conflict (VAC) and thereby improve three‑dimensional (3D) pointing performance. The authors built a prototype varifocal stereo display that tracks the user’s gaze depth with an eye‑tracker and continuously adjusts the optical power of a liquid‑lens system so that the focal plane aligns with the perceived depth of the virtual target. The hardware design incorporates a beamsplitter, a spherical mirror, and low‑latency control electronics to avoid flicker and latency, and it was refined in a second ergonomic iteration to reduce posture constraints.

A within‑subject experiment with 24 participants compared the varifocal mode against a conventional fixed‑focal mode using an ISO 9241‑411 compliant Fitts’ Law pointing task. Two movement directions were tested: a lateral direction where both targets lie at the same depth (52.5 cm from the user) and a depth direction where targets are positioned at 40 cm and 65 cm, creating a substantial depth change. Target spacing was 25 cm for both directions, and three index of difficulty (ID) levels were employed. Performance metrics included movement time (MT), error rate, and throughput (THP), calculated per standard Fitts’ Law analysis.

Results show that, on average, the varifocal condition reduced MT by roughly 12 %, increased throughput by about 9 %, and lowered error rates compared with the fixed‑focal baseline. The benefit was most pronounced for depth‑direction movements, confirming that aligning accommodation with vergence alleviates the depth‑related slowdown previously reported in fixed‑focus stereoscopic displays. However, a detailed participant‑level analysis revealed a baseline‑dependent effect: participants who already performed well in the fixed‑focal condition (fast, accurate) exhibited little or even slight performance degradation when switching to varifocal mode, whereas participants with poorer baseline performance showed substantial gains. The authors attribute this variability to individual differences in sensorimotor integration, accommodative range, and eye‑tracker accuracy.

The discussion emphasizes that while varifocal displays can generally improve AR interaction by reducing VAC, the magnitude of benefit is not uniform across users. This suggests that future commercial AR headsets may need adaptive calibration or user‑specific focus‑control profiles to maximize performance for a heterogeneous user base. Limitations of the study include the modest sample size, reliance on a single wand‑type input device, and a controlled indoor lighting environment, which may not capture real‑world usage conditions. Additionally, any eye‑tracker latency or mis‑estimation directly affects focus adjustment and could confound the measured performance gains.

Future work is proposed in several directions: testing a broader range of input modalities (hand gestures, finger taps), expanding the depth range of targets, evaluating long‑duration usage to assess visual fatigue and accommodative drift, and improving eye‑tracking robustness. The authors also suggest exploring hybrid approaches that combine varifocal optics with lightweight multifocal or light‑field elements to further reduce system complexity while preserving depth cues.

In conclusion, the study provides empirical evidence that a gaze‑driven varifocal AR display can mitigate the vergence‑accommodation conflict and improve 3D pointing speed and accuracy, especially for tasks involving significant depth changes. Nevertheless, individual differences play a critical role, indicating that personalized display tuning will be essential for the next generation of high‑performance AR head‑mounted displays.
