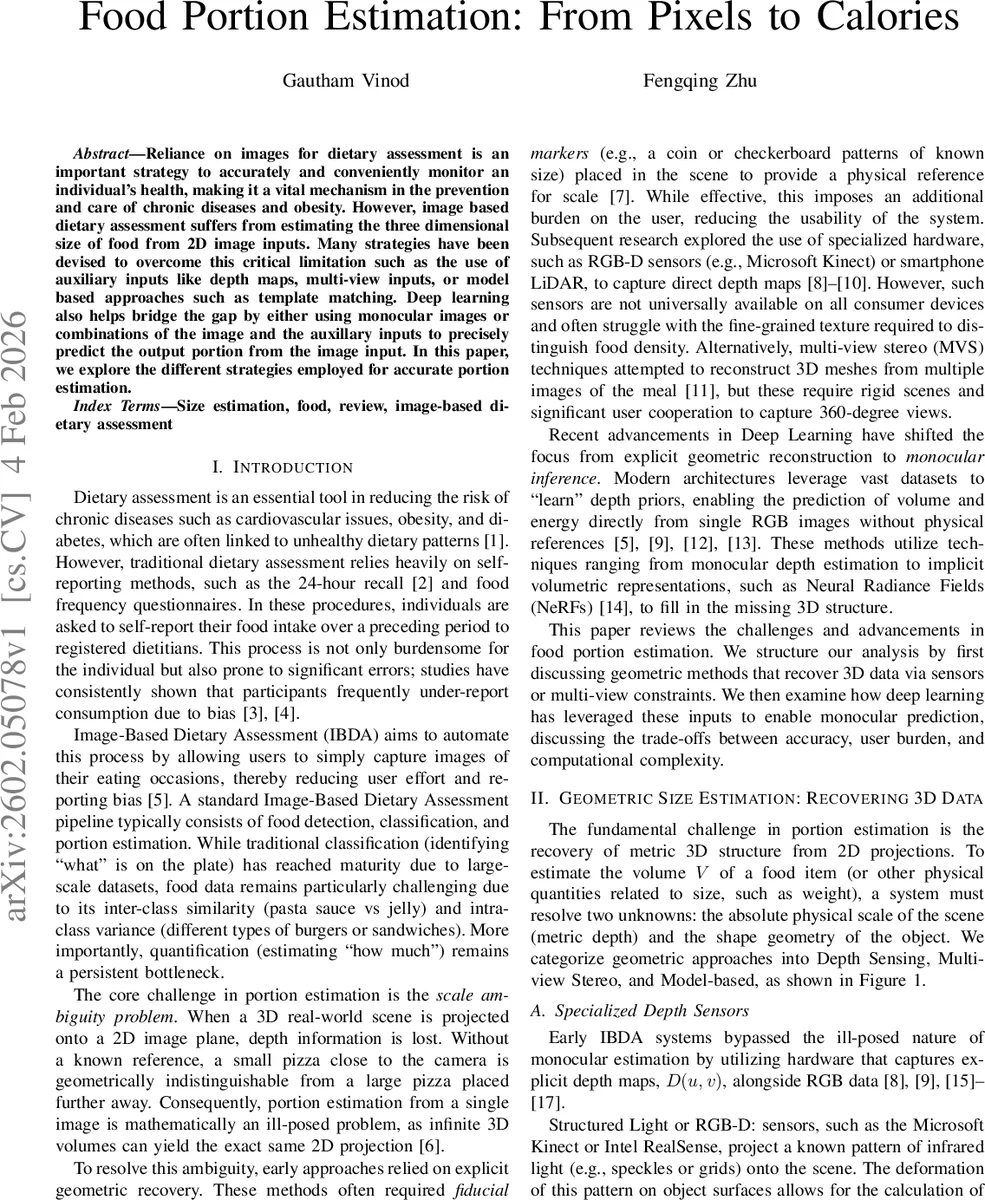

Food Portion Estimation: From Pixels to Calories

Reliance on images for dietary assessment is an important strategy to accurately and conveniently monitor an individual’s health, making it a vital mechanism in the prevention and care of chronic diseases and obesity. However, image-based dietary assessment suffers from estimating the three dimensional size of food from 2D image inputs. Many strategies have been devised to overcome this critical limitation such as the use of auxiliary inputs like depth maps, multi-view inputs, or model-based approaches such as template matching. Deep learning also helps bridge the gap by either using monocular images or combinations of the image and the auxillary inputs to precisely predict the output portion from the image input. In this paper, we explore the different strategies employed for accurate portion estimation.

💡 Research Summary

The paper provides a comprehensive review of image‑based dietary assessment (IBDA) with a focus on the technical challenge of estimating food portion size—both volume and caloric content—from 2‑D photographs. It begins by contrasting traditional self‑report methods (24‑hour recall, food frequency questionnaires) with modern photo‑capture approaches, highlighting the inherent scale ambiguity that arises when projecting a three‑dimensional scene onto a two‑dimensional image plane.

The authors categorize geometric solutions into three families. First, dedicated depth sensors (structured‑light, RGB‑D, smartphone Time‑of‑Flight) directly capture depth maps, delivering high accuracy for rigid objects but suffering from reflectivity issues, low resolution for granular foods, and the need for external hardware. Second, multi‑view stereo and Structure‑from‑Motion (SfM) reconstruct point clouds or meshes from multiple viewpoints; while precise, these methods demand cumbersome 360° capture, are sensitive to food motion, and often lack absolute scale without known camera intrinsics. Third, model‑based and template‑matching techniques fit observed silhouettes to pre‑defined 3D primitives or high‑fidelity meshes, offering computational efficiency but failing to generalize to amorphous or deformed foods.

The paper then shifts to deep‑learning approaches that have largely supplanted explicit geometry. Monocular depth prediction uses encoder‑decoder networks to infer dense depth maps from a single RGB image; the predicted depth is back‑projected into 3D space and integrated into voxels to obtain volume. Cross‑modal fusion models (e.g., DPF‑Nutrition) combine semantic texture cues with geometric features, markedly reducing volume error. Direct energy regression bypasses 3D reconstruction altogether, training CNN backbones with regression heads to map images directly to mass, volume, or kilocalories. Although fast, this strategy remains vulnerable to scale bias. The most recent frontier involves implicit representations such as Neural Radiance Fields (NeRF). NeRF treats the scene as a continuous function mapping spatial coordinates and view directions to color and density, enabling few‑shot synthesis of novel views and accurate volumetric meshes, especially for semi‑transparent or texture‑less foods like soups. However, NeRF demands substantial compute and sufficient view diversity.

Three persistent challenges are identified. 1) Scale and reference: without a physical marker, absolute depth cannot be resolved; emerging marker‑less methods attempt to infer scale from environmental priors (e.g., typical plate sizes) but still struggle in the wild. 2) Occlusion: only visible surfaces are captured, leaving the underside of food and internal layers hidden; current models “guess” these regions, leading to systematic under‑estimation for piled or layered dishes. The authors anticipate amodal completion networks and diffusion‑based generative models to probabilistically reconstruct hidden geometry. 3) Density gap: converting volume to energy requires food‑specific density, which varies widely even within a category. Purely visual methods cannot discern texture‑related density differences. The paper suggests leveraging multimodal large language models (MLLMs) together with textual cues (e.g., “low‑carb”, “fluffy”) and linking to nutrition databases (e.g., USDA FNDDS) to refine density estimates.

In the conclusion, the authors argue that the field is transitioning from hardware‑heavy, accurate but impractical pipelines toward AI‑driven, user‑friendly solutions. While monocular deep learning reduces user burden, true clinical‑grade accuracy remains elusive due to the three core ambiguities. Future research directions include marker‑less scale inference, generative amodal completion, personalized habit modeling, and hybrid lightweight NeRF or depth‑NeRF architectures suitable for mobile devices. By integrating visual perception with semantic reasoning from large foundation models, the next generation of IBDA systems could finally deliver precise, automated dietary tracking for chronic disease management.
