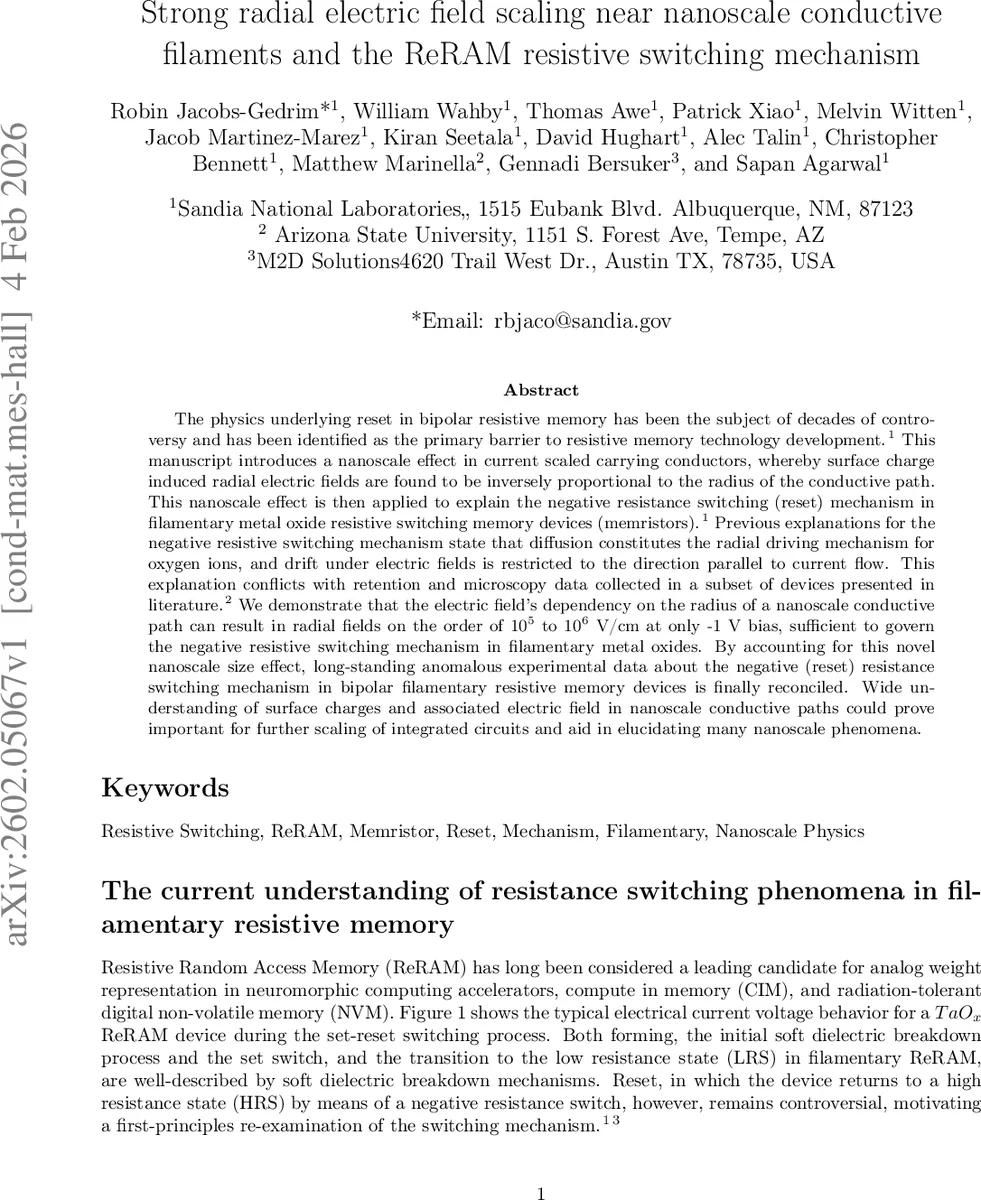

Strong radial electric field scaling near nanoscale conductive filaments and the ReRAM resistive switching mechanism

The physics underlying reset in bipolar resistive memory has been the subject of decades of controversy and has been identified as the primary barrier to resistive memory technology development. This manuscript introduces a nanoscale effect in current carrying conductors, whereby surface charge induced radial electric fields are found to be inversely proportional to the radius of the conductive path. This nanoscale effect is then applied to explain the negative resistance switching (reset) mechanism in filamentary metal oxide resistive switching memory devices (memristors). Previous explanations for the negative resistive switching mechanism state that diffusion constitutes the radial driving mechanism for oxygen ions, and drift under electric fields is restricted to the direction parallel to current flow. This explanation conflicts with retention and microscopy data collected in a subset of devices presented in literature. We demonstrate that the electric field’s dependency on the on the radius of a nanoscale conductive path can result in radial fields on the order of 10^5 to 10^6 V/cm at only -1 V bias, sufficient to govern the negative resistance switching mechanism in filamentary metal oxides. By accounting for this nanoscale size effect, long standing anomalous experimental data about the negative (reset) resistance switching mechanism in bipolar filamentary resistive memory devices is finally reconciled. Wide understanding of surface charges and associated electric fields in nanoscale conductive paths could prove important for further scaling of integrated circuits and aid in elucidating many nanoscale phenomena.

💡 Research Summary

The paper tackles the long‑standing controversy surrounding the reset (high‑resistance state transition) in bipolar Valence‑Change‑Mechanism (VCM) ReRAM devices. Traditional explanations attribute reset to radial oxygen transport driven solely by diffusion (thermal Soret effect or Fickian diffusion) while electric drift is considered only along the filament axis. However, such diffusion‑only models cannot reconcile several experimental observations: (i) the appearance of a ring of excess oxygen around the filament in STXM measurements, (ii) consistent filament rupture near the bottom electrode observed in STEM, and (iii) the fact that a modest negative bias (≈ –1 V) can trigger a rapid, voltage‑independent resistance jump.

The authors revisit a classical electromagnetic result first noted by Kirchhoff: a steady‑state current‑carrying conductor with finite resistivity accumulates surface charge, which in turn creates an external radial electric field. Using the Drude model for the interior field (E_z = η J) and solving Laplace’s equation with cylindrical symmetry, they derive the potential and field distribution for a filament of radius R surrounded by a return path at distance b≫R. The key result is the radial field

E_r(r) = (η I π R²) /
