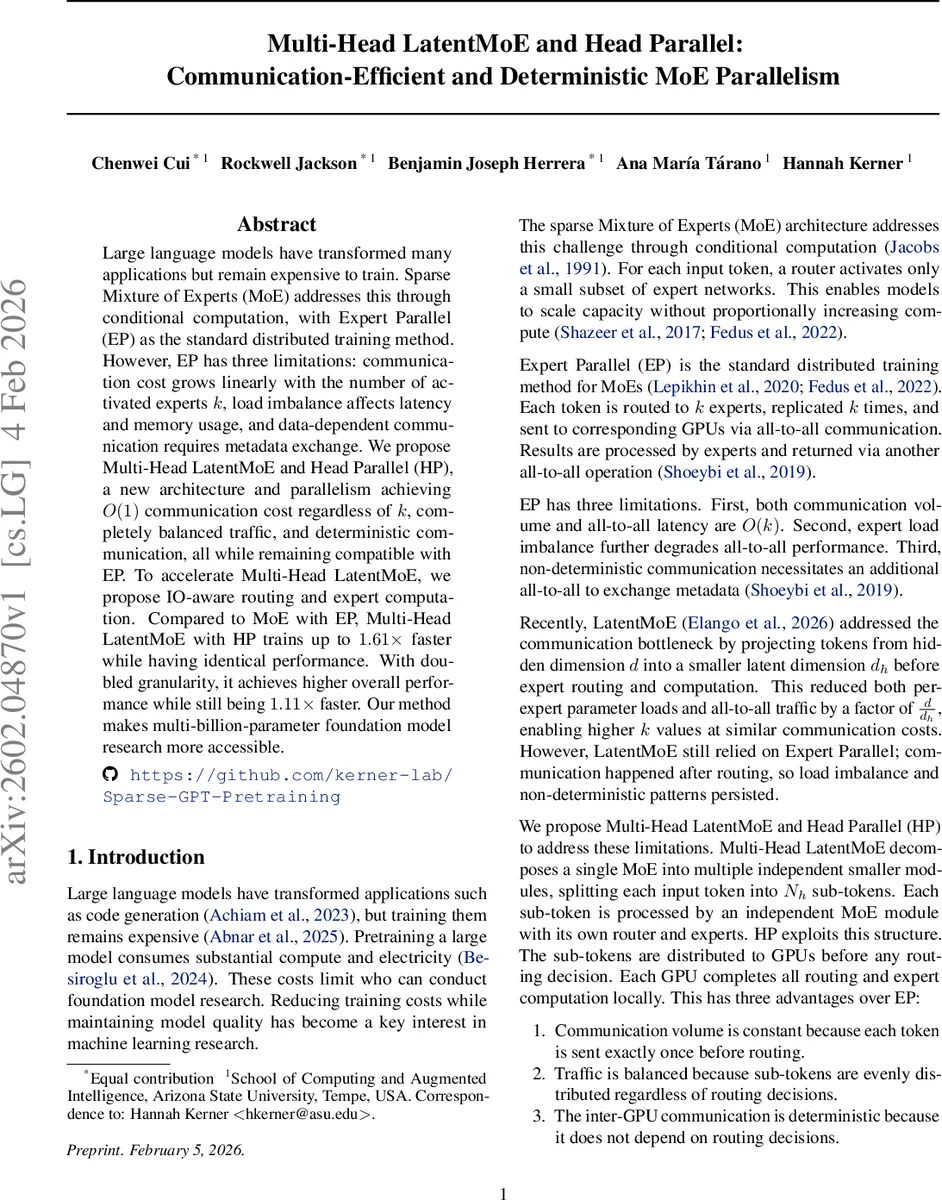

Multi-Head LatentMoE and Head Parallel: Communication-Efficient and Deterministic MoE Parallelism

Large language models have transformed many applications but remain expensive to train. Sparse Mixture of Experts (MoE) addresses this through conditional computation, with Expert Parallel (EP) as the standard distributed training method. However, EP has three limitations: communication cost grows linearly with the number of activated experts $k$, load imbalance affects latency and memory usage, and data-dependent communication requires metadata exchange. We propose Multi-Head LatentMoE and Head Parallel (HP), a new architecture and parallelism achieving $O(1)$ communication cost regardless of $k$, completely balanced traffic, and deterministic communication, all while remaining compatible with EP. To accelerate Multi-Head LatentMoE, we propose IO-aware routing and expert computation. Compared to MoE with EP, Multi-Head LatentMoE with HP trains up to $1.61\times$ faster while having identical performance. With doubled granularity, it achieves higher overall performance while still being $1.11\times$ faster. Our method makes multi-billion-parameter foundation model research more accessible.

💡 Research Summary

Large language models (LLMs) have achieved remarkable performance across many tasks, yet their training remains prohibitively expensive. Sparse Mixture‑of‑Experts (MoE) mitigates this cost by activating only a small subset of expert networks per token, allowing model capacity to scale without a proportional increase in compute. The dominant distributed training paradigm for MoE is Expert Parallel (EP), which distributes expert weights across GPUs and uses two all‑to‑all communications: one to dispatch duplicated tokens to the selected experts and another to gather the results. EP suffers from three fundamental drawbacks: (1) communication volume grows linearly with the number of activated experts k, (2) load imbalance among expert queues leads to latency spikes and uneven memory pressure, and (3) the communication pattern depends on data‑dependent routing decisions, requiring an extra all‑to‑all exchange of metadata and making the overall process nondeterministic.

The paper introduces Multi‑Head LatentMoE and a complementary distributed training strategy called Head Parallel (HP) that fundamentally redesign the interaction between routing and communication. The key idea is to split each input token into Nₕ sub‑tokens (heads) via a learned linear projection and a split operation. Each sub‑token is processed by an independent MoE module with its own router and expert set; the modules share no parameters. After processing, the sub‑token outputs are concatenated and projected back to the original hidden dimension. This architecture preserves the total FLOPs of a standard MoE while creating natural, head‑level boundaries that can be exploited for communication.

HP moves the all‑to‑all communication before any routing decisions. Assuming P GPUs and Nₕ divisible by P, each GPU initially receives the sub‑tokens belonging to the heads it will host. Consequently, every token is transmitted exactly once, making the communication volume O(1) with respect to k. Because each GPU sends and receives the same amount of data, traffic is perfectly balanced, and the communication pattern is deterministic—no metadata exchange is required. After the local routing and expert computation, a reverse all‑to‑all returns the results to the original GPUs. HP can be combined with other parallelism schemes (e.g., expert parallel) to scale beyond Nₕ GPUs.

To make Multi‑Head LatentMoE practical, the authors develop two IO‑aware kernels that drastically reduce high‑bandwidth memory (HBM) traffic:

1. IO‑aware Routing – Instead of materializing the full T × Nₑ score matrix in HBM, the router processes experts in blocks (M experts at a time) while keeping intermediate activations in on‑chip SRAM. For each block it computes scores, extracts the local top‑k, and merges these into a global accumulator. Scores and indices are packed into 64‑bit integers to enable fast arg‑top‑k. This reduces HBM reads/writes from O(Nₑ) to O(k) per token and supports aux‑free load‑balancing by adding and later subtracting a bias term.

2. IO‑aware Expert Computation – The authors observe the duality between feed‑forward networks and attention and rewrite sparse expert computation as block‑sparse attention. By leveraging the FlexAttention kernel (an extension of FlashAttention that handles arbitrary score‑modification functions and block masks), expert matrix multiplications are performed without materializing dense activation tensors. The block‑sparse mask groups tokens assigned to the same expert, yielding a block‑diagonal pattern that can be processed efficiently. This reduces HBM traffic from O(T·dₑ) to O(T + dₑ) while preserving exact computation (e.g., using a log‑gelu score modification to emulate GeLU activation).

The experimental evaluation uses the FineWebEdu dataset (10 B tokens) and a 1.3 B‑parameter model. Compared to the baseline MoE trained with EP, Multi‑Head LatentMoE + HP achieves up to 1.61× faster training while matching final perplexity and downstream accuracy. When k = 4, inter‑GPU communication volume drops to 25 % of the EP baseline. Doubling the granularity (i.e., increasing Nₕ) further improves model quality (≈ 6.9 percentage‑point gain) and still yields a 1.11× speedup. The authors also demonstrate that load imbalance is eliminated: all GPUs finish their all‑to‑all steps simultaneously, and deterministic communication removes the need for extra metadata exchanges.

In summary, the paper makes three major contributions:

• Architectural Innovation – Multi‑Head LatentMoE decouples routing from communication, enabling O(1) communication cost, perfect load balance, and deterministic data movement.
• System‑Level Optimizations – Exact IO‑aware routing and expert computation kernels dramatically cut HBM accesses, making the approach feasible on current GPU hardware.
• Empirical Validation – The method delivers substantial speedups without sacrificing model quality, lowering the barrier for training ultra‑sparse, multi‑billion‑parameter foundation models in academic settings.

Future directions include scaling HP beyond the Nₕ = P constraint, integrating the approach with other parallelism dimensions (tensor, pipeline), and exploring hardware‑specific implementations on ASICs or next‑generation GPUs. By addressing the core communication bottleneck of MoE training, Multi‑Head LatentMoE and Head Parallel pave the way for more accessible, efficient large‑scale model research.
