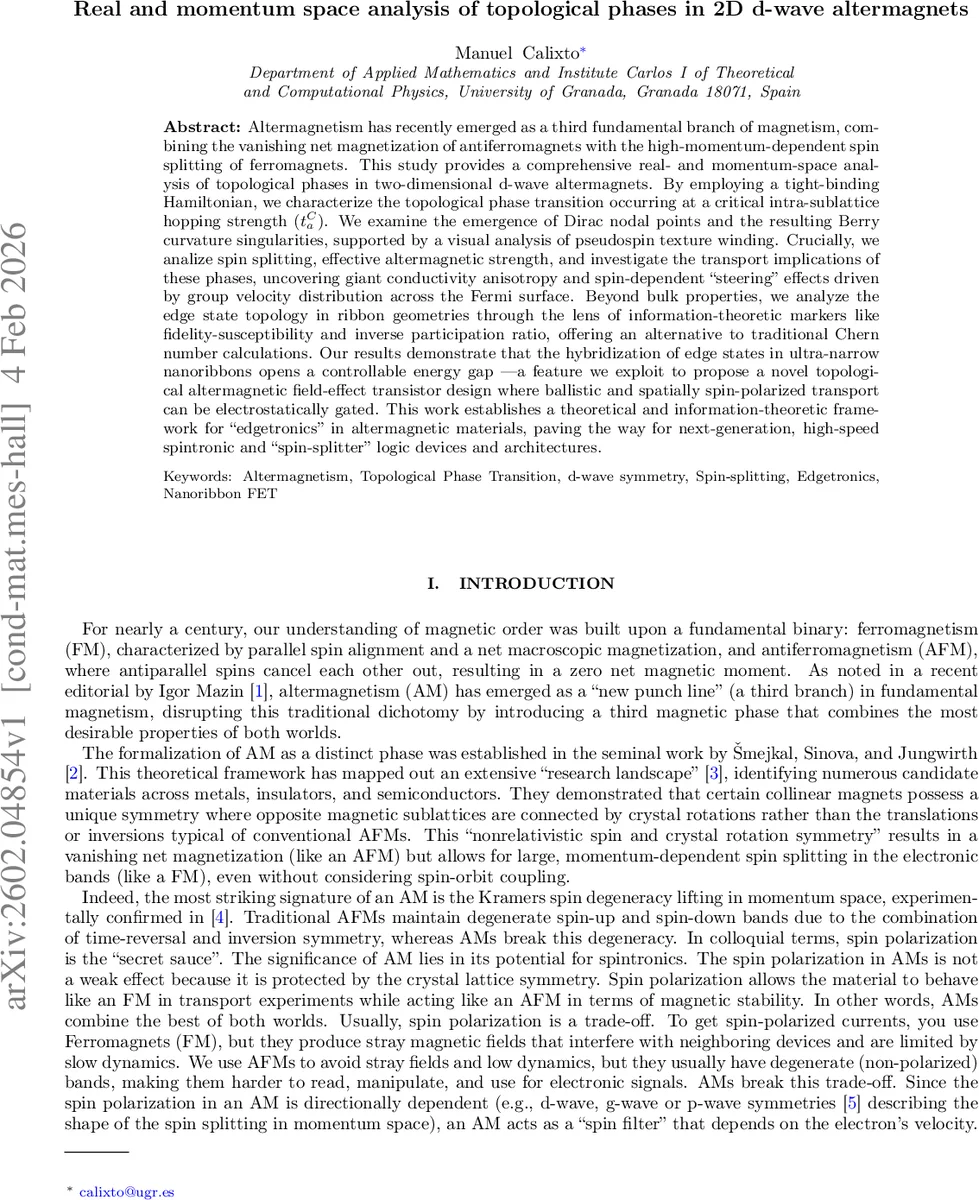

Real and momentum space analysis of topological phases in 2D d-wave altermagnets

Altermagnetism has recently emerged as a third fundamental branch of magnetism, combining the vanishing net magnetization of antiferromagnets with the high-momentum-dependent spin splitting of ferromagnets. This study provides a comprehensive real- and momentum-space analysis of topological phases in two-dimensional d-wave altermagnets. By employing a tight-binding Hamiltonian, we characterize the topological phase transition occurring at a critical intra-sublattice hopping strength ($t_a^C$). We examine the emergence of Dirac nodal points and the resulting Berry curvature singularities, supported by a visual analysis of pseudospin texture winding. Crucially, we analize spin splitting, effective altermagnetic strength, and investigate the transport implications of these phases, uncovering giant conductivity anisotropy and spin-dependent “steering” effects driven by group velocity distribution across the Fermi surface. Beyond bulk properties, we analyze the edge state topology in ribbon geometries through the lens of information-theoretic markers like fidelity-susceptibility and inverse participation ratio, offering an alternative to traditional Chern number calculations. Our results demonstrate that the hybridization of edge states in ultra-narrow nanoribbons opens a controllable energy gap, a feature we exploit to propose a novel topological altermagnetic field-effect transistor design where ballistic and spatially spin-polarized transport can be electrostatically gated. This work establishes a theoretical and information-theoretic framework for “edgetronics” in altermagnetic materials, paving the way for next-generation, high-speed spintronic and “spin-splitter” logic devices and architectures.

💡 Research Summary

This paper presents a comprehensive theoretical investigation of two‑dimensional d‑wave altermagnets, a recently identified class of magnetic materials that combine the zero net magnetization of antiferromagnets with a momentum‑dependent spin splitting reminiscent of ferromagnets. The authors construct a tight‑binding model on a bipartite lattice with nearest‑neighbor hopping (t), next‑nearest‑neighbor altermagnetic hopping (t_a), and a staggered exchange field (J) that couples opposite spins on the two sublattices. In momentum space the Hamiltonian takes the form (\mathbf{d}_s(\mathbf{k})!\cdot!\boldsymbol{\tau}), where (\mathbf{d}_s) encodes the kinetic and exchange contributions and (\boldsymbol{\tau}) are Pauli matrices acting on the sublattice (pseudospin) degree of freedom.

A key result is the identification of a critical intra‑sublattice hopping strength (t_a^{C}=J/4). For (t_a<t_a^{C}) the system is a trivial band insulator with a uniform gap (E_g=2(J-4t_a)). When (t_a) exceeds the critical value, the condition (d_x(\mathbf{k})=0) together with (d_z(\mathbf{k})=0) is satisfied at four symmetry‑related points (\mathbf{k}_D=(\pm k_D,\pm\pi)) and ((\pm\pi,\pm k_D)), producing Dirac nodal points. Near these points the dispersion is anisotropic, with two distinct Fermi velocities (v_1\propto(4t_a-J)) and (v_2\propto J/t_a). The band gap closes at the transition, and the Berry curvature, computed as (\mathbf{B}_s^{\pm}(\mathbf{k})=\pm\frac12\hat{\mathbf{d}}s\cdot(\partial{k_x}\hat{\mathbf{d}}s\times\partial{k_y}\hat{\mathbf{d}}_s)), collapses into delta‑function peaks at the Dirac points, yielding a non‑zero Chern number ((\pm1)). Because the Hamiltonian is real and PT‑symmetric, the Berry connection vanishes everywhere except at these singularities; the authors therefore visualize the topological transition through the winding of the pseudospin texture ((d_x,d_z)), which forms vortices only in the topological phase.

The spin‑dependent term (d_z) changes sign with the spin index (s), leading to a characteristic spin‑filtering pattern: electrons moving along the (k_x) direction are predominantly spin‑up, while those along (k_y) are spin‑down. This momentum‑selective spin polarization produces a pronounced anisotropy in the conductivity tensor, with (σ_{xx}\neq σ_{yy}). The anisotropic group velocities also generate a “spin‑steering” effect, where the direction of charge flow determines the spin polarization of the current.

Beyond bulk properties, the paper investigates edge states in ribbon geometries. In wide ribbons each edge hosts a chiral mode, but in ultra‑narrow nanoribbons the opposite‑edge modes hybridize, opening a controllable energy gap (\Delta_{\text{edge}}). The magnitude of this gap depends on (t_a), ribbon width, and an external electrostatic gate. To characterize the bulk‑to‑edge transition without resorting to Chern numbers, the authors introduce two information‑theoretic diagnostics: fidelity susceptibility (\chi_F=\partial^2_{\lambda}\ln F) (with (F) the overlap between ground states at slightly different parameters) and the inverse participation ratio (IPR) (=\sum_i|\psi_i|^4). Fidelity susceptibility peaks sharply at (t_a^{C}), signaling a rapid change in the ground‑state manifold, while the IPR quantifies the localization of edge states—high values indicate strongly localized edge modes in the topological regime. Both measures are numerically stable and can be linked to experimental probes such as scanning tunneling spectroscopy.

Exploiting the gate‑tunable edge gap, the authors propose an “altermagnetic field‑effect transistor” (Altermagnetic FET). By applying a gate voltage that closes (\Delta_{\text{edge}}), a ballistic, spin‑polarized channel opens, allowing near‑ballistic transport of a spin‑selected current. Raising the gate voltage reopens the gap, switching the device off. This concept combines the advantages of ferromagnetic spin‑filter devices (high spin polarization) with those of antiferromagnets (no stray fields, terahertz dynamics), offering a low‑power, high‑speed logic element.

In summary, the work delivers a unified real‑ and momentum‑space picture of topological phase transitions in d‑wave altermagnets, introduces robust information‑theoretic tools for diagnosing topology, and translates the underlying physics into a concrete device proposal. It paves the way for “edgetronics” in altermagnetic materials and suggests several future directions, including the role of spin‑orbit coupling, nonlinear transport, and experimental validation in candidate compounds such as MnTe and RuO₂.
