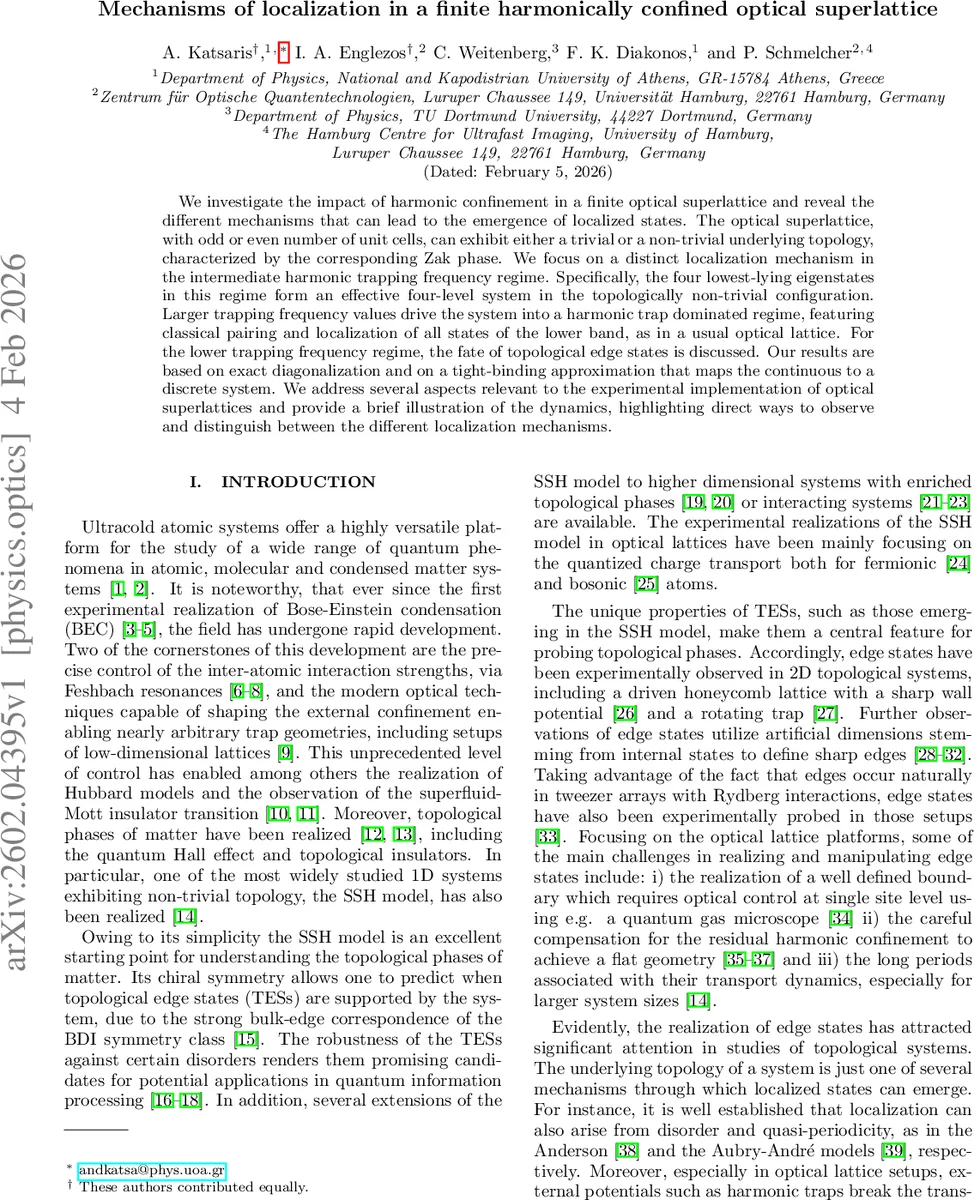

Mechanisms of localization in a finite harmonically confined optical superlattice

We investigate the impact of harmonic confinement in a finite optical superlattice and reveal the different mechanisms that can lead to the emergence of localized states. The optical superlattice, with odd or even number of unit cells, can exhibit either a trivial or a non-trivial underlying topology, characterized by the corresponding Zak phase. We focus on a distinct localization mechanism in the intermediate harmonic trapping frequency regime. Specifically, the four lowest-lying eigenstates in this regime form an effective four-level system in the topologically non-trivial configuration. Larger trapping frequency values drive the system into a harmonic trap dominated regime, featuring classical pairing and localization of all states of the lower band, as in a usual optical lattice. For the lower trapping frequency regime, the fate of topological edge states is discussed. Our results are based on exact diagonalization and on a tight-binding approximation that maps the continuous to a discrete system. We address several aspects relevant to the experimental implementation of optical superlattices and provide a brief illustration of the dynamics, highlighting direct ways to observe and distinguish between the different localization mechanisms.

💡 Research Summary

The paper presents a comprehensive theoretical study of how a harmonic confinement influences the emergence of localized states in a finite optical superlattice. Starting from the well‑known realization of the Su‑Schrieffer‑Heeger (SSH) and its extended version (eSSH) in one‑dimensional optical lattices, the authors construct a continuous potential that combines a primary standing‑wave lattice with a secondary lattice of half the period, introducing a controllable phase ϕ. Depending on the number of unit cells M (odd or even) and the phase, the underlying band structure can be topologically trivial or non‑trivial, as diagnosed by the Zak phase. To emulate hard‑wall boundaries required for edge‑state formation, a linear extension of the lattice potential is added, ensuring continuity of both the potential and its first derivative.

A harmonic trap V_HT(x)=½mω²x² is then superimposed, yielding a total potential V(x)=V_lat(x)+V_ext(x)+V_HT(x). The authors solve the stationary Schrödinger equation for this continuous system using exact diagonalization (ED) with a high‑order finite‑difference stencil, obtaining eigenenergies and wavefunctions. In parallel, they develop a tight‑binding (TB) description by constructing maximally localized Wannier functions for the lowest band, extracting site‑dependent on‑site energies μ_i, nearest‑neighbor hoppings J_i, and next‑nearest‑neighbor hoppings J_ti. The harmonic trap manifests as a parabolic modulation of μ_i, introducing a spatially varying on‑site potential while leaving the hopping pattern largely intact.

The central result is the identification of three distinct regimes as the trap frequency ω is varied:

1. Low‑frequency regime (ω≲0.01 E_r/ħ) – The parabolic shift of μ_i is negligible. The system behaves like the standard SSH/eSSH chain: in the non‑trivial configuration (ϕ=π/2, odd M) topological edge states appear at the two ends, while the trivial configuration lacks them.

2. Intermediate‑frequency regime (0.01 ≲ ω ≲ 0.1 E_r/ħ) – The trap’s curvature becomes comparable to the bandwidth. This suppresses intra‑band level crossings and isolates the four lowest‑lying eigenstates. Two of these states localize at the left and right edges, the other two reside near the centre, together forming an effective four‑level system. This localization is neither purely topological nor purely Stark‑type; it originates from the interplay between the superlattice’s alternating hopping pattern and the spatially varying on‑site energies.

3. High‑frequency regime (ω ≳ 0.1 E_r/ħ) – The parabolic term dominates. All states of the lower band become paired and localized in a Wannier–Stark‑like fashion, with nearly equally spaced energies and wavefunctions tightly confined to individual lattice sites, irrespective of the underlying topology.

Parameter sweeps over the barrier‑height ratio u=V_low/V_high and the phase ϕ reveal that a larger contrast (small u) widens the intermediate regime, and only the non‑trivial phase supports the clear four‑state isolation. The authors validate the TB model against ED results, showing excellent agreement for spectra and wavefunction profiles.

Experimental considerations are discussed in detail. Realizing the required phase ϕ and the linear extension demands precise control of laser phases and beam shaping, while compensating residual harmonic confinement to the desired ω is achievable with magnetic or optical dipole traps. The intermediate‑frequency regime can be probed by preparing a localized atomic packet (e.g., via a focused addressing beam) and monitoring its dynamics with a quantum‑gas microscope; the predicted oscillations between edge and central sites provide a clear signature of the four‑level physics.

Finally, the fate of topological edge states under finite ω is examined. In the low‑frequency limit they persist, but as ω increases they hybridize with trap‑induced states and eventually disappear in the high‑frequency Stark regime. The work concludes by emphasizing that localization in optical lattices can arise from multiple mechanisms—topology, disorder, quasi‑periodicity, and external confinement—and that distinguishing among them is essential for interpreting experiments. Prospects for extending the analysis to interacting many‑body systems, higher dimensions, and dynamical driving are outlined.
