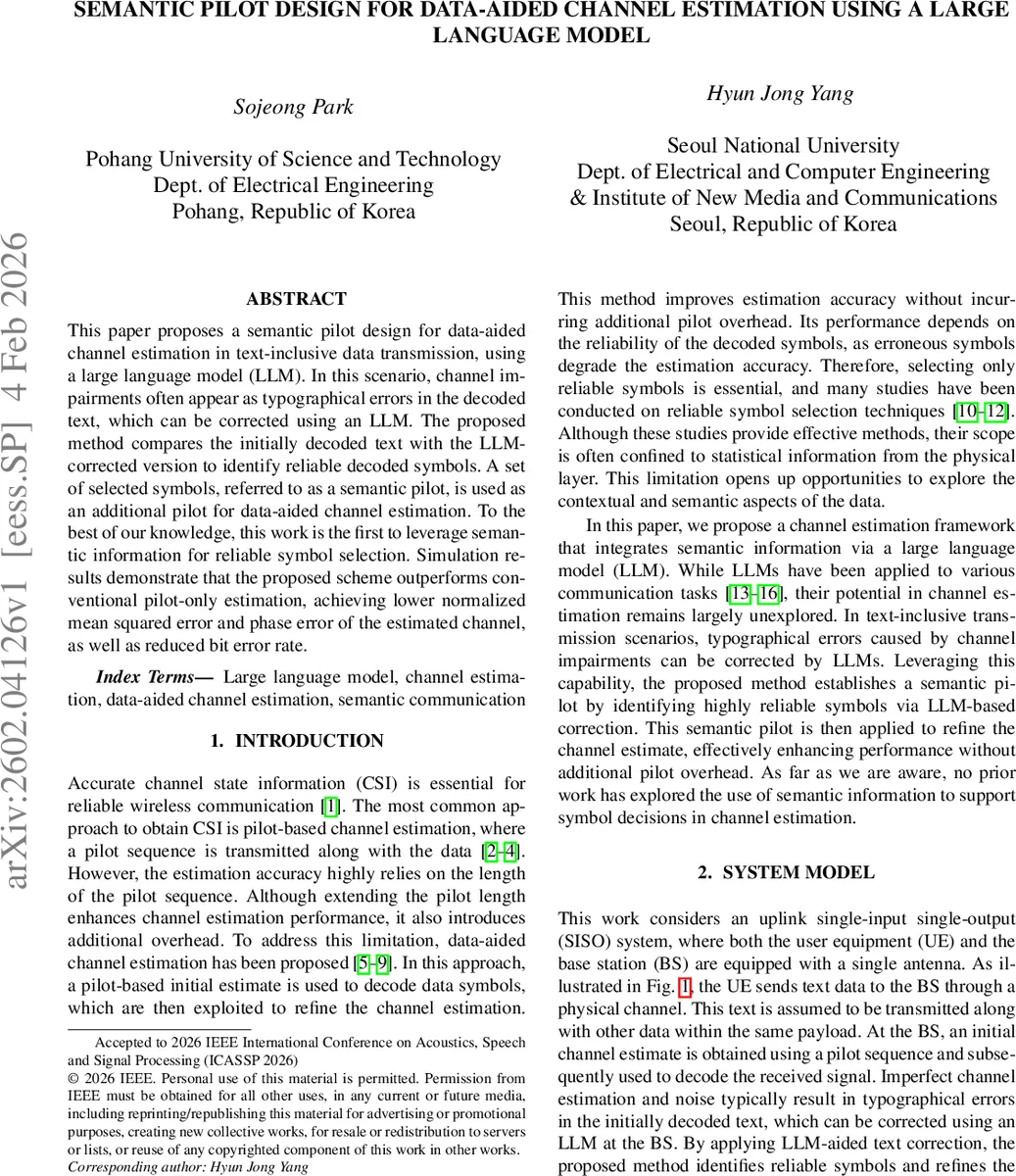

Semantic Pilot Design for Data-Aided Channel Estimation Using a Large Language Model

This paper proposes a semantic pilot design for data-aided channel estimation in text-inclusive data transmission, using a large language model (LLM). In this scenario, channel impairments often appear as typographical errors in the decoded text, which can be corrected using an LLM. The proposed method compares the initially decoded text with the LLM-corrected version to identify reliable decoded symbols. A set of selected symbols, referred to as a semantic pilot, is used as an additional pilot for data-aided channel estimation. To the best of our knowledge, this work is the first to leverage semantic information for reliable symbol selection. Simulation results demonstrate that the proposed scheme outperforms conventional pilot-only estimation, achieving lower normalized mean squared error and phase error of the estimated channel, as well as reduced bit error rate.

💡 Research Summary

The paper introduces a novel “semantic pilot” concept for data‑aided channel estimation in wireless systems that transmit text alongside conventional data. Traditional pilot‑only channel estimation suffers from a trade‑off between pilot length (and thus overhead) and estimation accuracy. Data‑aided approaches mitigate this by reusing decoded data symbols as additional pilots, but their performance hinges on the reliability of those symbols; erroneous symbols can degrade the estimate. Existing reliable‑symbol selection methods rely solely on physical‑layer statistics and ignore the rich semantic information present in textual payloads.

To exploit this semantic layer, the authors employ a large language model (LLM) – specifically the OpenAI gpt‑4‑mini – to correct typographical errors that arise from channel impairments. The system model assumes a single‑input single‑output (SISO) uplink where a user equipment (UE) sends a sequence of characters. Each character is encoded into a 6‑bit fixed‑length source code and then QPSK‑modulated, forming the data symbol vector (x_t). A Zadoff‑Chu pilot sequence (x_p) of length 16 is transmitted first. The received signal is (y = h x + n), with (h) the complex channel coefficient and (n) AWGN.

An initial least‑squares (LS) estimate (\hat h_{LS}) is obtained from the pilot symbols. Using (\hat h_{LS}), the receiver equalizes the data symbols, demodulates them, and reconstructs an initial text sequence (\hat t). This text may contain errors (e.g., misspelled words) caused by imperfect channel estimation and noise. The LLM is then prompted with strict constraints: the corrected output must have the same length as the input and may only substitute characters; heavily corrupted segments are replaced by a string of ‘X’s. The LLM produces a corrected text (\hat t_{LLM}).

The core semantic‑pilot design compares (\hat t) and (\hat t_{LLM}) character‑by‑character. If a character remains unchanged after LLM correction, the corresponding modulated symbols are deemed error‑free and are collected into a set (x_s), called the semantic pilot. Formally, a selection function (S(\cdot,\cdot)) extracts symbols whose underlying characters satisfy (\hat t(i)=\hat t_{LLM}(i)). The reliability of this selection is extremely high (≈99.94 % error‑free) as shown in simulations.

Channel refinement proceeds in two stages. First, phase refinement solves a joint LS problem using both the conventional pilot symbols and the semantic pilot symbols: \
