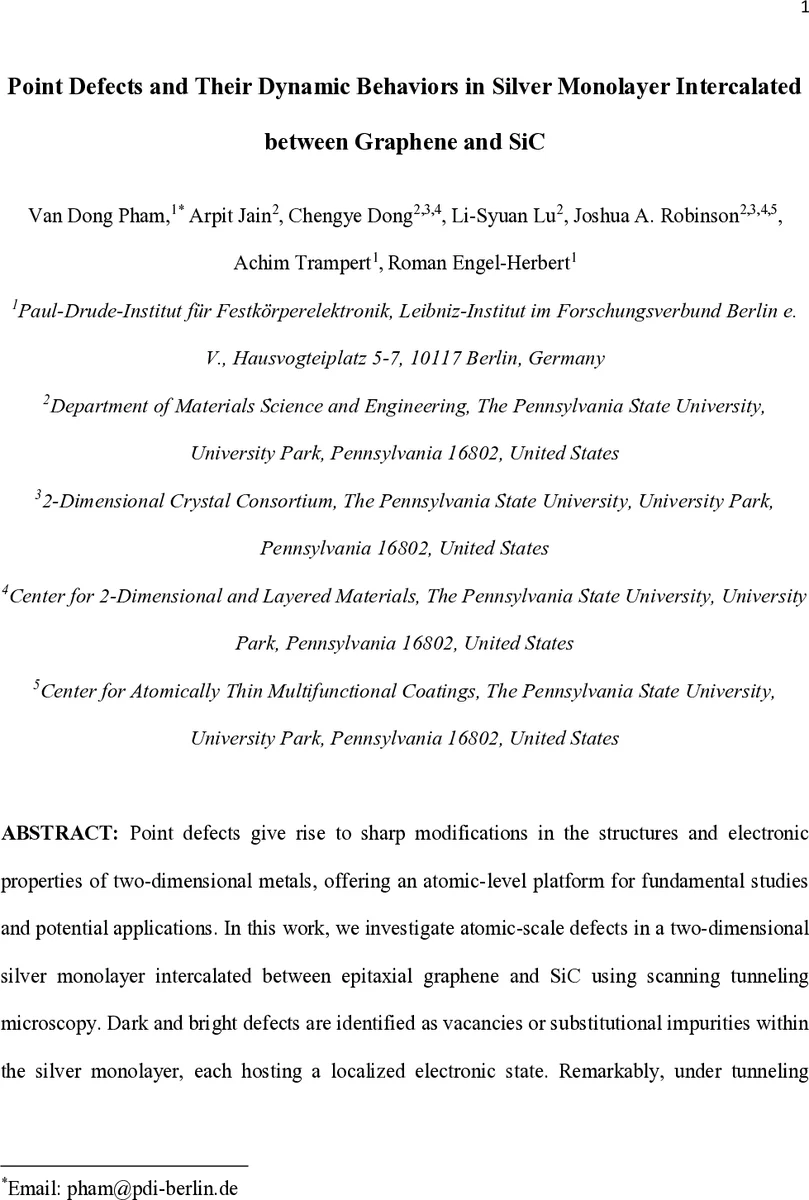

Point defects and their dynamic behaviors in silver monolayer intercalated between graphene and SiC

Point defects give rise to sharp modifications in the structures and electronic properties of two-dimensional metals, offering an atomic-level platform for fundamental studies and potential applications. In this work, we investigate atomic-scale defects in a two-dimensional silver monolayer intercalated between epitaxial graphene and SiC using scanning tunneling microscopy. Dark and bright defects are identified as vacancies or substitutional impurities within the silver monolayer, each hosting a localized electronic state. Remarkably, under tunneling electron excitation at negative bias, the bright defects exhibit dynamic behaviors characterized by inelastic switching between two states. The switching can be reversibly controlled by the microscope tip, enabling the defects to function as atomic-scale two-level conductance switches. Analysis of defect switching reveals possible defect origins and the relationship between dark and bright defect species. Our findings establish a pathway to precise manipulation of defects in two-dimensional metals and uncover previously unexplored dynamics with potential use in nanoelectronics.

💡 Research Summary

In this work the authors investigate point defects in a two‑dimensional silver (Ag) monolayer that is intercalated between epitaxial graphene and a SiC(0001) substrate. The heterostructure is prepared by thermal decomposition of SiC to form zero‑layer graphene, followed by Ag intercalation at 900 °C in an Ar atmosphere, yielding a quasi‑freestanding graphene/Ag/SiC stack. After mild annealing in UHV, the sample is transferred to a cryogenic scanning tunneling microscope (STM) operating at 5 K. Large‑scale STM images taken at –1.3 V reveal a well‑ordered moiré pattern (period ≈ 14.7 Å) that originates from the superposition of the Ag lattice (2.98 Å) with the graphene overlayer. Within this otherwise uniform pattern two distinct point‑defect species are observed: dark (depressed) spots and bright (protruding) spots.

Differential conductance (dI/dV) spectroscopy performed on the three locations (bright defect, dark defect, defect‑free area) shows that the graphene Dirac point remains at –0.75 V in all cases, confirming that the graphene cap stays intact and weakly coupled to the underlying Ag. However, each defect type exhibits a characteristic localized electronic state: a sharp occupied‑state peak for the bright defect (≈ ‑0.4 V) and an unoccupied‑state peak for the dark defect (≈ +0.6 V). These peaks are independent of tip‑sample distance, ruling out tip‑induced charging, and are interpreted as defect‑induced localized states analogous to those found for vacancies in graphene or substitutional impurities in transition‑metal dichalcogenides.

The most striking observation concerns the bright defects under negative bias. When the sample bias is set below the occupied‑state resonance (≈ ‑0.45 V), the bright defects display stochastic fluctuations in the tunneling current, evident as a two‑level telegraph noise. Spatial dI/dV maps confirm that only a subset of bright defects becomes noisy, while dark defects and “stable” bright defects remain quiet. Current–voltage traces recorded with the feedback loop disabled show discrete jumps between a low‑conductance and a high‑conductance level, i.e., a bistable conductance switch. The switching probability increases with more negative bias and higher tunneling current, indicating that inelastic tunneling electrons trigger transitions between two metastable configurations of the defect. No such switching is observed at positive bias or for the dark defects, highlighting the polarity‑dependent nature of the phenomenon.

The authors propose that the bright defects are either Ag vacancies or substitutional impurities (e.g., Si atoms migrating from the SiC substrate) that possess an electronic level resonant with the tunneling electrons. The inelastic excitation of this level at negative bias likely couples to a local vibrational mode, enabling the defect to toggle between two structural or charge states. The dark defects, by contrast, appear to be a different chemical species that does not couple efficiently to the tunneling electrons.

Overall, the study demonstrates that point defects in a 2D metal layer can be identified, characterized, and actively manipulated at the single‑atom level using STM. The ability to induce reversible, two‑state conductance switching in individual defects opens a pathway toward atomic‑scale electronic components such as nanoswitches, memory bits, or quantum bits embedded in a protective graphene cap. Future work involving density‑functional theory calculations, temperature‑dependent measurements, and controlled impurity incorporation will be essential to fully elucidate the atomic configurations and to harness these defect dynamics for practical nanoelectronic applications.
