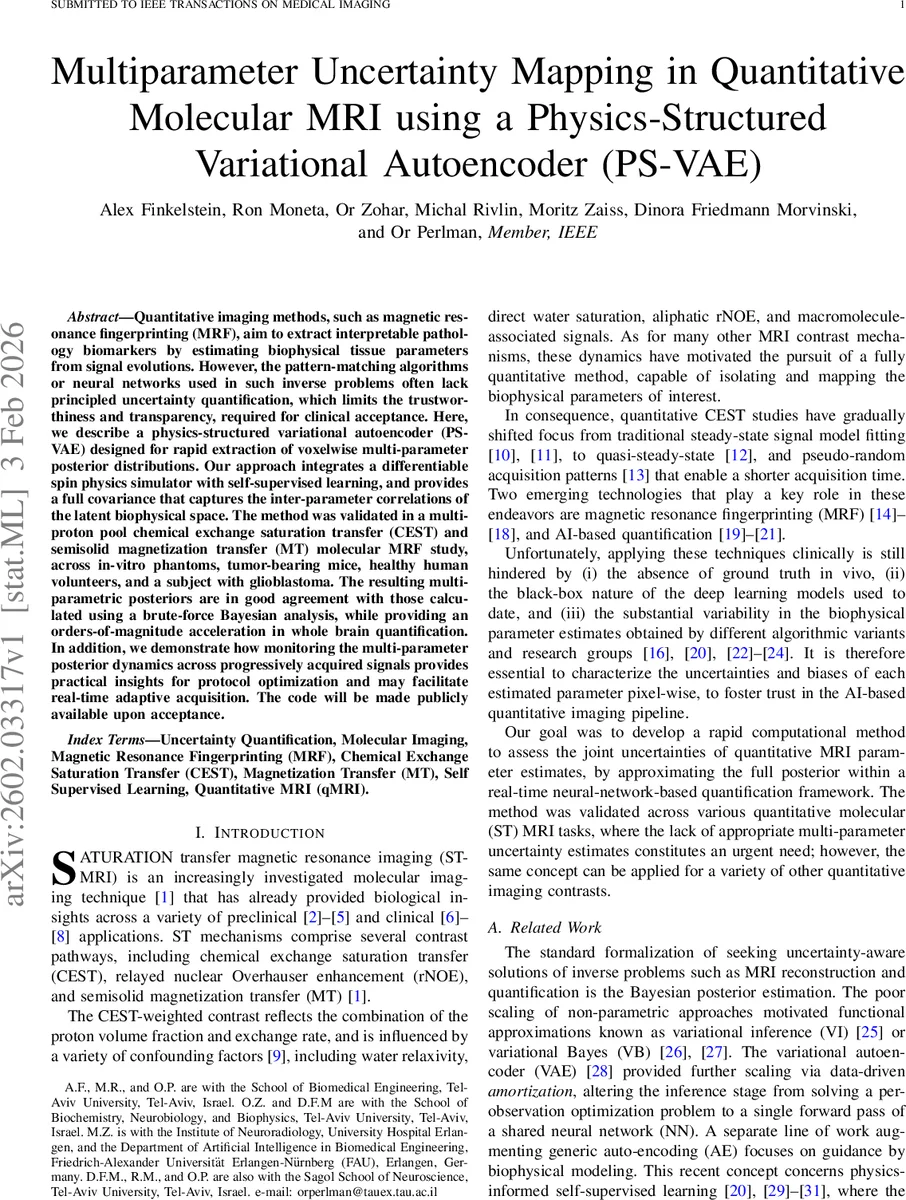

Multiparameter Uncertainty Mapping in Quantitative Molecular MRI using a Physics-Structured Variational Autoencoder (PS-VAE)

Quantitative imaging methods, such as magnetic resonance fingerprinting (MRF), aim to extract interpretable pathology biomarkers by estimating biophysical tissue parameters from signal evolutions. However, the pattern-matching algorithms or neural networks used in such inverse problems often lack principled uncertainty quantification, which limits the trustworthiness and transparency, required for clinical acceptance. Here, we describe a physics-structured variational autoencoder (PS-VAE) designed for rapid extraction of voxelwise multi-parameter posterior distributions. Our approach integrates a differentiable spin physics simulator with self-supervised learning, and provides a full covariance that captures the inter-parameter correlations of the latent biophysical space. The method was validated in a multi-proton pool chemical exchange saturation transfer (CEST) and semisolid magnetization transfer (MT) molecular MRF study, across in-vitro phantoms, tumor-bearing mice, healthy human volunteers, and a subject with glioblastoma. The resulting multi-parametric posteriors are in good agreement with those calculated using a brute-force Bayesian analysis, while providing an orders-of-magnitude acceleration in whole brain quantification. In addition, we demonstrate how monitoring the multi-parameter posterior dynamics across progressively acquired signals provides practical insights for protocol optimization and may facilitate real-time adaptive acquisition.

💡 Research Summary

This paper introduces a physics‑structured variational autoencoder (PS‑VAE) for rapid, voxel‑wise quantification of full posterior distributions in quantitative molecular MRI, specifically in the context of chemical exchange saturation transfer (CEST) and semisolid magnetization transfer (MT) magnetic resonance fingerprinting (MRF). Traditional MRF pipelines typically produce point estimates (e.g., maximum‑likelihood) and lack principled uncertainty quantification, which hampers clinical trust. PS‑VAE addresses this gap by embedding a differentiable spin‑physics simulator as a fixed decoder and training a multilayer perceptron encoder to output both the mean vector μ and a full, non‑diagonal covariance matrix Σ for each measured signal. The resulting Gaussian approximation Qϕ(N(μ,Σ)) serves as an amortized variational posterior P(θ|S), where θ denotes the biophysical tissue parameters and S the observed signal evolution.

The training objective combines two terms: (1) a consistency loss Lc = ‖S – F(θ′)‖², where θ′ is sampled from Qϕ via the re‑parameterization trick (θ′ = μ + USε) and F(·) is the forward physics model; and (2) a regularization term Lreg = –α log det Σ, which prevents collapse of the covariance and plays a role analogous to the KL‑divergence term in standard VAEs. Importantly, the method is self‑supervised: it requires only experimentally acquired signals (Strain) and no synthetic ground‑truth labels, thereby avoiding domain‑shift issues that plague supervised approaches.

To validate the approach, the authors applied PS‑VAE to four experimental settings: (i) in‑vitro phantoms, (ii) tumor‑bearing mice, (iii) healthy human volunteers, and (iv) a glioblastoma patient. For each case, they compared the PS‑VAE posterior (mean, covariance, 95 % confidence ellipses) against a reference “brute‑force Bayesian” method that computes likelihoods on a dense grid of parameters and normalizes to obtain the exact posterior. The comparison showed: – Near‑identical normalized mean‑squared error (NRMSE) between the MAP reconstructions and the reference optimum. – High overlap of univariate confidence intervals (≥85 % of voxels) and close Mahalanobis distance between the two 2‑D confidence regions, indicating accurate capture of inter‑parameter correlations. – Orders‑of‑magnitude speedup: whole‑brain posterior estimation completed in seconds, whereas the grid‑based Bayesian approach required hours to days.

Beyond static mapping, the authors demonstrated that monitoring posterior dynamics as more saturation‑pulse samples are acquired yields practical insight for protocol design. Early‑stage signals already produce informative uncertainty ellipses that shrink with additional data, suggesting a route to adaptive acquisition where acquisition parameters (e.g., B1 amplitude, frequency offset) are modified in real time based on the evolving posterior.

The paper also discusses limitations: reliance on an accurate forward physics model (model mismatch can bias the posterior), scalability challenges when extending Σ to higher‑dimensional parameter spaces, sensitivity to the regularization hyper‑parameter α and prior bounds, and the Gaussian assumption which may not capture multimodal posteriors. Future work is suggested on non‑Gaussian variational families, more robust priors, and broader clinical validation across diverse scanner platforms.

In summary, PS‑VAE provides a principled, fast, and self‑supervised framework for full‑covariance uncertainty quantification in quantitative molecular MRI. By delivering voxel‑wise posterior distributions without synthetic training data, it bridges a critical gap between AI‑driven rapid parameter estimation and the transparency required for clinical adoption, and opens avenues for real‑time, uncertainty‑aware protocol optimization.
