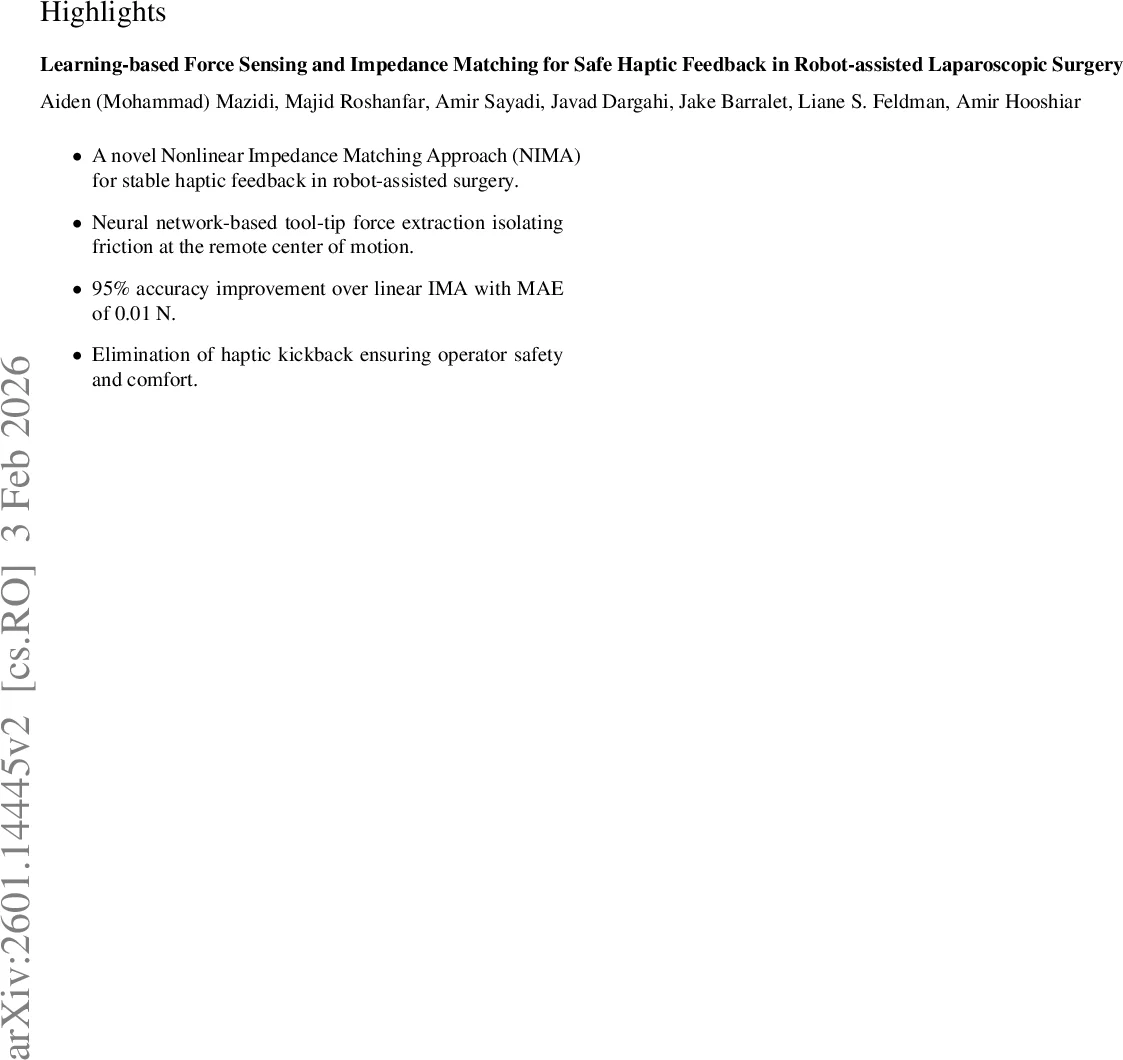

Learning-based Force Sensing and Impedance Matching for Safe Haptic Feedback in Robot-assisted Laparoscopic Surgery

Integrating accurate haptic feedback into robot-assisted minimally invasive surgery (RAMIS) remains challenging due to difficulties in precise force rendering and ensuring system safety during teleoperation. We present a Nonlinear Impedance Matching Approach (NIMA) that extends our previously validated Impedance Matching Approach (IMA) by incorporating nonlinear dynamics to accurately model and render complex tool-tissue interactions in real-time. NIMA achieves a mean absolute error of 0.01 (std 0.02 N), representing a 95% reduction compared to IMA. Additionally, NIMA eliminates haptic “kickback” by ensuring zero force is applied to the user’s hand when they release the handle, enhancing both patient safety and operator comfort. By accounting for nonlinearities in tool-tissue interactions, NIMA significantly improves force fidelity, responsiveness, and precision across various surgical conditions, advancing haptic feedback systems for reliable robot-assisted surgical procedures.

💡 Research Summary

This paper addresses the long‑standing challenge of providing accurate, stable haptic feedback in robot‑assisted minimally invasive surgery (RAMIS). Building on the previously validated Impedance Matching Approach (IMA), the authors introduce a Nonlinear Impedance Matching Approach (NIMA) that explicitly models the nonlinear dynamics of tool‑tissue interaction and integrates a neural‑network‑based force extraction pipeline. The core contributions are: (1) a multilayer perceptron (MLP) that receives raw six‑axis force‑torque data from a tip‑mounted sensor and robot‑joint sensors, learns to separate the remote‑center‑of‑motion (RCM) friction component, and outputs the true tip‑tissue contact force; (2) an automatic coordinate‑correspondence calibration routine that aligns the tip‑sensor frame with the robot’s world frame, reducing transformation errors to sub‑millimeter and sub‑degree levels; (3) a real‑time nonlinear impedance estimator that updates mass (M), damping (B), and stiffness (K) parameters using an extended Kalman filter (EKF) and a third‑order polynomial model, thereby capturing tissue non‑linearity, visco‑elasticity, and stiffness variation; (4) a closed‑loop control architecture where the estimated impedance matrix M converts the operator’s position command X into a rendered force f_d = M·X on the leader‑side haptic device, while the follower robot executes X, measures (f, X), and continuously refines the impedance parameters.

The experimental platform consists of two Kinova Gen3 7‑DOF arms, Force Dimension Omega.7 haptic controllers, three Bota six‑axis force‑torque sensors, custom‑designed laparoscopic tools driven by Dynamixel actuators, and a translucent mannequin embedding soft‑tissue surrogates. Three validation stages were performed: (i) calibration accuracy assessment, showing mean positional error below 0.08 mm after transformation; (ii) neural‑network force isolation verification, achieving a mean absolute error (MAE) of 0.012 N (σ ≈ 0.018 N) compared with raw sensor data, a >70 % improvement over linear IMA; (iii) full NIMA performance testing across multiple tissue phantoms (silicone, gelatin) and surgical tasks (pick‑and‑place, suturing). In this stage NIMA rendered three‑axis forces with an MAE of 0.01 ± 0.02 N, representing a 95 % reduction relative to IMA. Crucially, the system eliminated the notorious “haptic kickback” – the residual force felt when the surgeon releases the handle – by ensuring the rendered force converges to zero, thereby enhancing operator comfort and patient safety.

A comparative table situates NIMA among existing haptic strategies: direct tip sensing (high hardware cost, high fidelity), proximal/joint sensing (moderate cost, moderate fidelity), sensor‑less model‑based methods (low hardware, high algorithmic complexity), vision‑based estimation (high data demand, low hardware), and pseudo‑haptic visual cues (low cost, low fidelity). NIMA occupies a middle ground: modest hardware dependence (requires tip sensor) but leverages sophisticated nonlinear modeling to achieve high fidelity without the complexity of full‑tip sensor integration.

The authors conclude that NIMA successfully merges stability (through inner position control), transparency (via accurate force reconstruction), and user‑centric safety (kickback elimination). They suggest future work on broader tissue variability, clinical trials, integration with multimodal cues (visual, vibrotactile), and regulatory pathways to translate the approach into commercial surgical robots.
