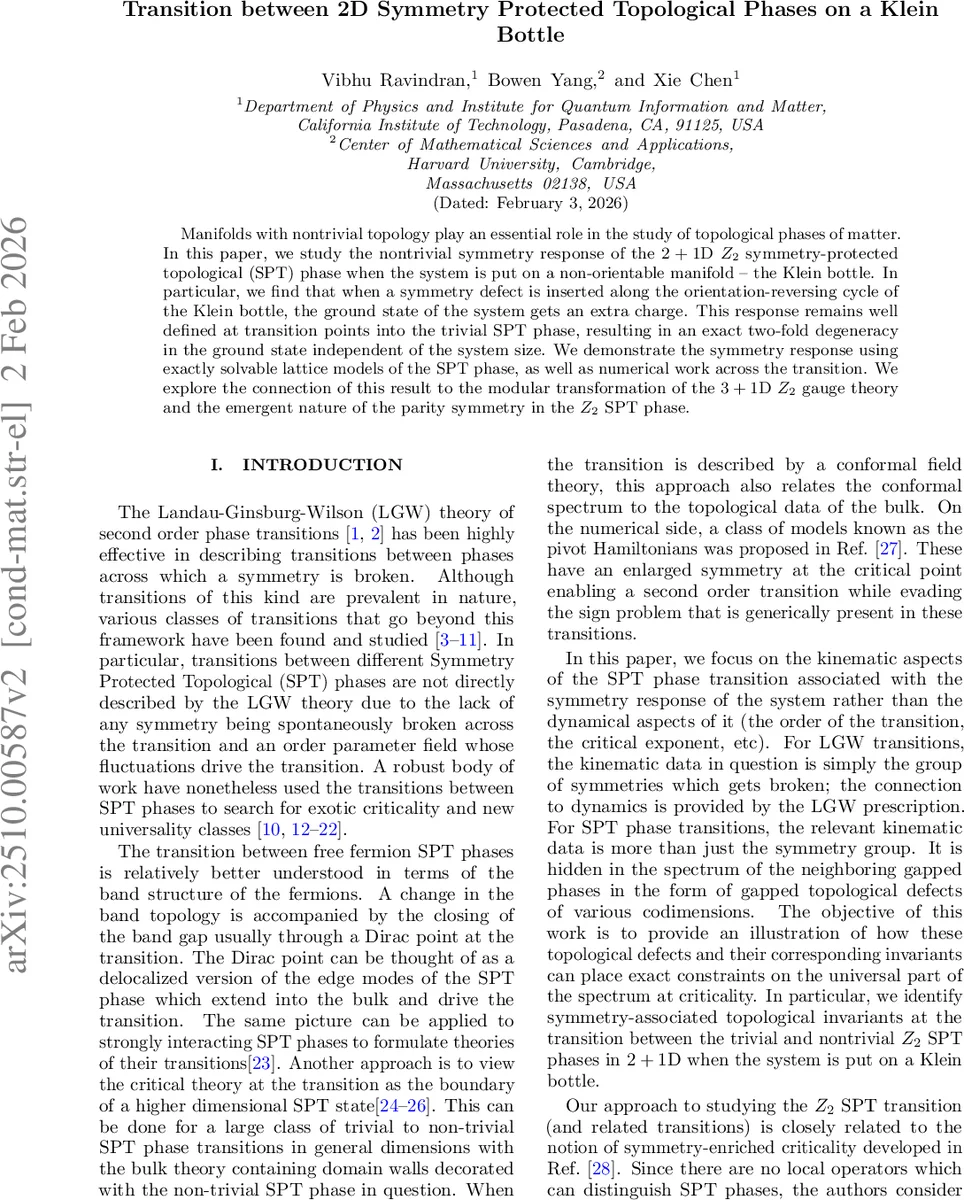

Transition between 2D Symmetry Protected Topological Phases on a Klein Bottle

Manifolds with nontrivial topology play an essential role in the study of topological phases of matter. In this paper, we study the nontrivial symmetry response of the $2+1$D $Z_2$ symmetry-protected topological (SPT) phase when the system is put on a non-orientable manifold – the Klein bottle. In particular, we find that when a symmetry defect is inserted along the orientation-reversing cycle of the Klein bottle, the ground state of the system gets an extra charge. This response remains well defined at transition points into the trivial SPT phase, resulting in an exact two-fold degeneracy in the ground state independent of the system size. We demonstrate the symmetry response using exactly solvable lattice models of the SPT phase, as well as numerical work across the transition. We explore the connection of this result to the modular transformation of the $3+1$D $Z_2$ gauge theory and the emergent nature of the parity symmetry in the $Z_2$ SPT phase.

💡 Research Summary

This paper investigates the response of a two‑dimensional Z₂ symmetry‑protected topological (SPT) phase when placed on a non‑orientable manifold, namely the Klein bottle. The authors focus on the “kinematic” data that characterizes SPT phases – the topological invariants associated with symmetry defects – rather than the dynamical critical exponents of the transition. They show that inserting a Z₂ symmetry defect line along the orientation‑reversing cycle of the Klein bottle induces an extra Z₂ charge in the ground state. This charge is absent on a torus and on a Klein bottle without such a defect, but appears precisely when the defect line threads the non‑orientable cycle.

The work proceeds in several steps. First, a physical picture is given by coupling the SPT to a Z₂ gauge field, which turns the SPT into the twisted Z₂ gauge theory known as the double‑semion model. In this language, the four anyon types (trivial, boson e, semion s, anti‑semion s̄) correspond to the trivial excitation, the Z₂ charge, and the endpoints of a symmetry‑defect line, respectively. When a semion circles the orientation‑reversing cycle of the Klein bottle it is mapped to an anti‑semion; the two fuse into the boson e, i.e., an extra charge appears.

To make the argument concrete, the authors use an exactly solvable lattice model introduced in Ref. 27. The model lives on a tripartite triangular lattice with spin‑½ on each vertex and a global Z₂ Ising symmetry S = ∏ₙXₙ. The Hamiltonian H = −∑ᵥXᵥBᵥ consists of commuting terms Bᵥ that are products of controlled‑Z gates around each vertex. On both the torus and the Klein bottle, the ground state satisfies Bᵥ = 1 for all v, which forces S = +1 (no charge).

When a parity‑defect line (the π‑flux) is introduced, each Bᵥ term intersected by the line is conjugated by the symmetry on one side, which attaches a pair of Z operators to the crossed edges. If the defect line cuts an odd number of triangles, the term acquires an extra minus sign. On a torus the orientation‑preserving identification guarantees that any closed defect loop intersects an even number of triangles, so the sign never appears and the ground state remains neutral. On a Klein bottle, however, the orientation‑reversing identification forces the defect line that threads the non‑orientable cycle to intersect an odd number of triangles, producing a global sign flip QᵥBᵥ′ = −QᵥXᵥ. Consequently the ground state carries Z₂ charge S = −1. This leads to an exact two‑fold degeneracy of the ground state on the Klein bottle, independent of system size.

The same conclusion is reproduced directly in the double‑semion model on a minimal lattice (two vertices, three edges) with torus or Klein‑bottle boundary conditions. Adding a loop operator around the unique plaquette yields a phase factor of –1 on the torus, while on the Klein bottle the loop picks up additional Z operators, again resulting in a charge flip.

The authors then study the transition between the trivial and non‑trivial Z₂ SPT phases by tuning a parameter in the lattice Hamiltonian. Using exact diagonalization and tensor‑network methods they verify that the charge invariant remains well‑defined at the critical point: the two‑fold ground‑state degeneracy persists across the transition, confirming that the invariant is a robust “symmetry response” that survives gap closing.

Beyond the 2+1D setting, the paper connects this phenomenon to the modular transformation properties of a 3+1D Z₂ gauge theory. Within the Symmetry Topological Field Theory framework, the extra charge on the Klein bottle corresponds to a non‑trivial S‑matrix element linking time‑reversal and electric‑magnetic duality in four dimensions. This extends earlier results that related SPT responses on orientable manifolds to modular data.

Finally, the authors discuss generalizations to other 2+1D SPTs (e.g., Z₂ × Z₂, Z₃²) and emphasize the role of emergent parity symmetry in the non‑trivial Z₂ SPT. The parity symmetry is not part of the microscopic symmetry group but appears in the low‑energy effective description, allowing the construction of symmetry‑defect lines that are charged under the original Z₂ symmetry. This emergent symmetry provides a new avenue for defining topological invariants that survive across phase transitions.

In summary, the paper establishes a concrete, exactly calculable topological invariant—an extra Z₂ charge induced by a parity defect on a Klein bottle—that distinguishes trivial and non‑trivial Z₂ SPT phases, remains well‑defined at the critical point, and links 2+1D SPT physics to 3+1D modular transformations. This work deepens our understanding of how non‑orientable geometry and emergent symmetries can be harnessed to probe and classify SPT phase transitions.
