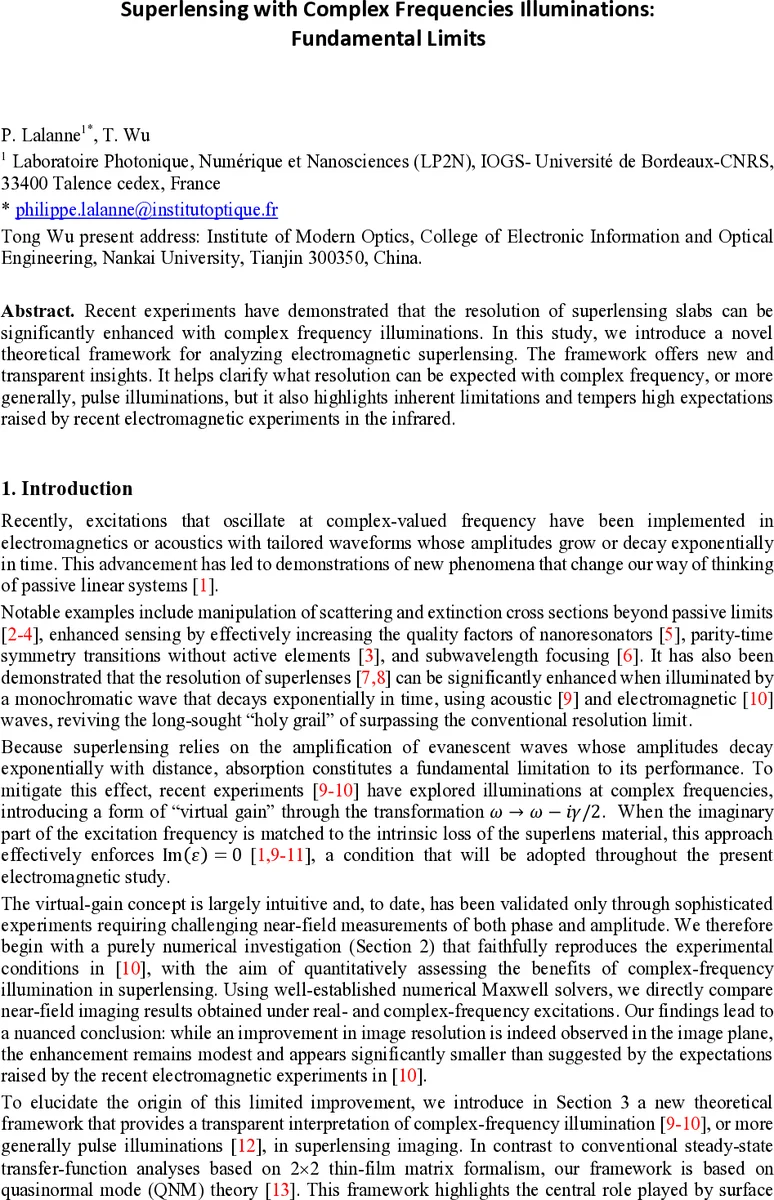

Superlensing with Complex Frequencies Illuminations: Fundamental Limits

Recent experiments have demonstrated that the resolution of superlensing slabs can be significantly enhanced with complex frequency illuminations. In this study, we introduce a novel theoretical framework for analyzing electromagnetic superlensing. The framework offers new and transparent insights. It helps clarify what resolution can be expected with complex frequency, or more generally, pulse illuminations, but it also highlights inherent limitations and tempers high expectations raised by recent electromagnetic experiments in the infrared.

💡 Research Summary

This paper provides a comprehensive assessment of the potential and limits of using complex‑frequency (or pulsed) illumination to improve the resolution of electromagnetic superlenses. Recent infrared experiments have suggested that illuminating a superlens with a wave whose frequency has a non‑zero imaginary part—effectively providing “virtual gain” that compensates material loss—can dramatically surpass the conventional diffraction limit. The authors first reproduce the experimental geometry (a 440 nm SiC slab sandwiched between two 220 nm SiO₂ layers, imaging a 60 nm gold grating with six sub‑wavelength slits) using rigorous coupled‑wave analysis (RCWA) with 401 Fourier harmonics. Three illumination scenarios are compared: (i) a complex‑frequency source tuned so that Im ω matches the intrinsic loss of SiC, (ii) a real‑frequency source with the lossy SiC lens, and (iii) an ideal loss‑free SiC lens at a real frequency. The simulations show that the complex‑frequency case and the loss‑free case produce nearly identical image profiles, confirming that virtual gain can indeed cancel absorption. However, the improvement over the lossy case is modest: contrast increases by a factor of 2–4 and the highest spatial frequency present in the image is roughly doubled. The authors note that the simulated images are smoother than the experimental ones, likely due to the absence of tip‑sample interactions and differences in normalization procedures. They also emphasize the extreme sensitivity of the image to the exact complex frequency used.

Recognizing that steady‑state transfer‑function analyses based on 2 × 2 thin‑film matrices cannot capture the underlying physics, the authors develop a new theoretical framework based on quasinormal modes (QNMs). By solving the transcendental dispersion equation for surface polariton modes of the slab, they identify two dominant QNMs (symmetric and antisymmetric) below the plasma frequency. These modes have complex eigen‑frequencies ω̃ while retaining real in‑plane wavevectors kₓ, even when the excitation frequency ω is complex. The QNM formalism reveals that optimal imaging does not coincide with the simple “Im ω = γ” virtual‑gain condition; instead, both the real and imaginary parts of ω must be jointly optimized to maximize the quality factor of the surface mode and to align the excitation with the modal field distribution. The analysis also clarifies the role of back‑bending in the dispersion curves, showing that it does not directly dictate resolution.

In addition to steady‑state behavior, the paper addresses the transient response that inevitably accompanies an exponentially damped illumination that starts at a finite time. Using the QNM expansion in the time domain, the authors quantify how the transient field can contaminate the steady‑state image, especially when the illumination pulse is short. They conclude that the transient contribution is non‑negligible and must be considered in any realistic assessment of resolution improvement.

Overall, the study concludes that while complex‑frequency illumination can partially mitigate loss and modestly enhance contrast, the achievable resolution gain is far smaller than the “holy‑grail” expectations raised by recent experiments. The improvement is bounded by the intrinsic modal properties of the superlens and by the interplay between steady‑state and transient fields. Future work should focus on designing optimal complex‑frequency spectra, suppressing unwanted transients, and improving experimental measurement techniques to accurately capture the subtle benefits of virtual gain.
