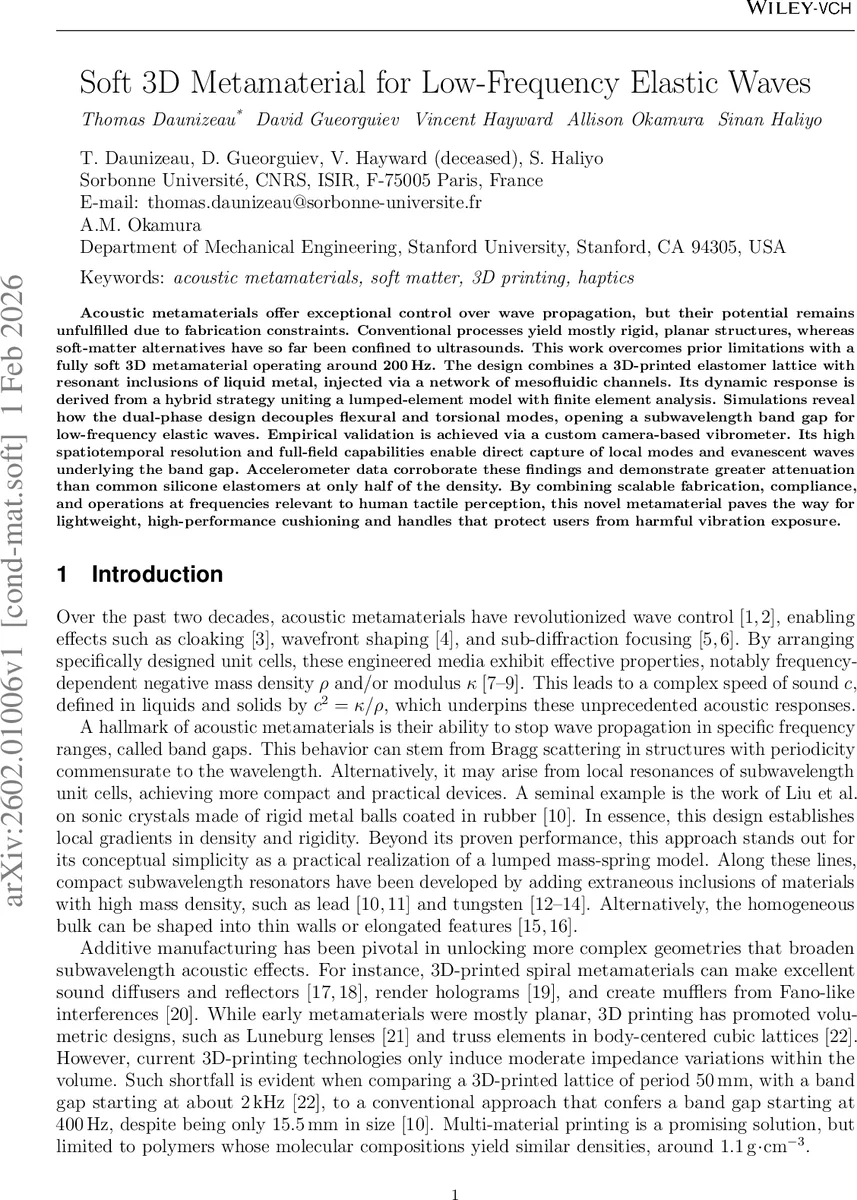

Soft 3D Metamaterial for Low-Frequency Elastic Waves

Acoustic metamaterials offer exceptional control over wave propagation, but their potential remains unfulfilled due to fabrication constraints. Conventional processes yield mostly rigid, planar structures, whereas soft-matter alternatives have so far been confined to ultrasounds. This work overcomes prior limitations with a fully soft 3D metamaterial operating around 200Hz. The design combines a 3D-printed elastomer lattice with resonant inclusions of liquid metal, injected via a network of mesofluidic channels. Its dynamic response is derived from a hybrid strategy uniting a lumped-element model with finite element analysis. Simulations reveal how the dual-phase design decouples flexural and torsional modes, opening a subwavelength band gap for low-frequency elastic waves. Empirical validation is achieved via a custom camera-based vibrometer. Its high spatiotemporal resolution and full-field capabilities enable direct capture of local modes and evanescent waves underlying the band gap. Accelerometer data corroborate these findings and demonstrate greater attenuation than common silicone elastomers at only half of the density. By combining scalable fabrication, compliance, and operations at frequencies relevant to human tactile perception, this novel metamaterial paves the way for lightweight, high-performance cushioning and handles that protect users from harmful vibration exposure.

💡 Research Summary

This paper presents a fully soft three‑dimensional acoustic metamaterial capable of attenuating low‑frequency elastic waves around 200 Hz. The authors address the long‑standing challenge of achieving sub‑wavelength band gaps at frequencies relevant to human tactile perception while maintaining a lightweight, compliant structure. The metamaterial consists of a stereolithography‑printed elastomer lattice formed by orthogonal 1 mm diameter rods arranged in a cubic lattice, and liquid‑metal (Galinstan) resonant inclusions housed in spherical pockets at the rod intersections. The liquid metal, with a density of 6.44 g cm⁻³, is introduced post‑printing through a network of 0.9 mm inner‑diameter U‑shaped mesofluidic channels that run through the lattice, allowing uniform filling and venting.

Design optimization proceeds in two stages. First, a lumped‑element mass‑spring model approximates each unit cell as a rigid mass (the liquid metal) attached to an effective stiffness derived from the elastomer rods, surrounded by an outer shell mass. This analytical framework identifies the lattice constant (a) and inclusion size ratio (r = ϕ/a) that minimize the resonant frequency f₀ and maximize the band‑gap width. Theory predicts an optimal r₀≈0.62, but practical SLA constraints (minimum wall thickness of 1 mm) limit r to the range 0.30–0.55.

Second, a detailed three‑dimensional finite‑element model incorporates hyperelastic material behavior for the elastomer (Neo‑Hookean), Newtonian fluid dynamics for Galinstan, and the geometry of the mesofluidic channels. Periodic Floquet‑Bloch boundary conditions reduce the infinite lattice to a single unit cell, enabling eigenfrequency analysis. Simulations reveal that with a = 16.5 mm and r = 0.42 (ϕ = 7 mm), a complete band gap opens from 185 Hz to 208 Hz, bounded by flexural and torsional modes. The lower edge matches the lumped‑element prediction within +6 %, while the upper edge deviates by –21 % due to torsional effects omitted in the simple model. The dispersion diagram confirms isotropic attenuation across the irreducible Brillouin zone, indicating that the mesofluidic channels have negligible impact on wave propagation direction.

Experimental validation employs two complementary techniques. A custom camera‑based vibrometer using digital image correlation captures full‑field vibration patterns, directly visualizing local resonances and evanescent waves within the band gap. High‑speed imaging resolves sub‑millimeter displacement fields, confirming that wave transmission is strongly suppressed and that the metamaterial exhibits distinct local modes (e.g., monopolar breathing of the liquid core). Simultaneously, miniature accelerometers attached to the sample measure transmission loss, showing more than 10 dB greater attenuation than a standard silicone elastomer (Ecoflex 00‑10) while possessing roughly half the density (≈0.5 g cm⁻³).

Key contributions of this work include: (1) Demonstration of a sub‑wavelength band gap at human‑relevant tactile frequencies using an entirely soft, 3‑D‑printed architecture; (2) Integration of dense liquid‑metal resonators via mesofluidic injection, achieving high mass loading without sacrificing compliance; (3) A hybrid analytical–numerical design methodology that efficiently navigates the large parameter space; (4) Full‑field experimental verification of both band‑gap formation and enhanced attenuation; and (5) Identification of practical applications such as lightweight cushioning, vibration‑isolating handles, and tactile feedback devices that protect users from harmful low‑frequency vibrations (e.g., hand‑arm vibration syndrome).

The authors discuss future directions, including exploring alternative low‑melting alloys or composite inclusions to broaden the band‑gap width, implementing multi‑band designs for broader frequency coverage, and investigating nonlinear dynamic effects for energy harvesting or adaptive damping. They also note the scalability of the combined SLA‑printing and mesofluidic filling process, suggesting that mass‑production of such soft metamaterials is feasible. Overall, the study establishes a versatile platform for low‑frequency elastic‑wave control in soft matter, bridging the gap between acoustic metamaterials and human‑centric haptic technologies.
