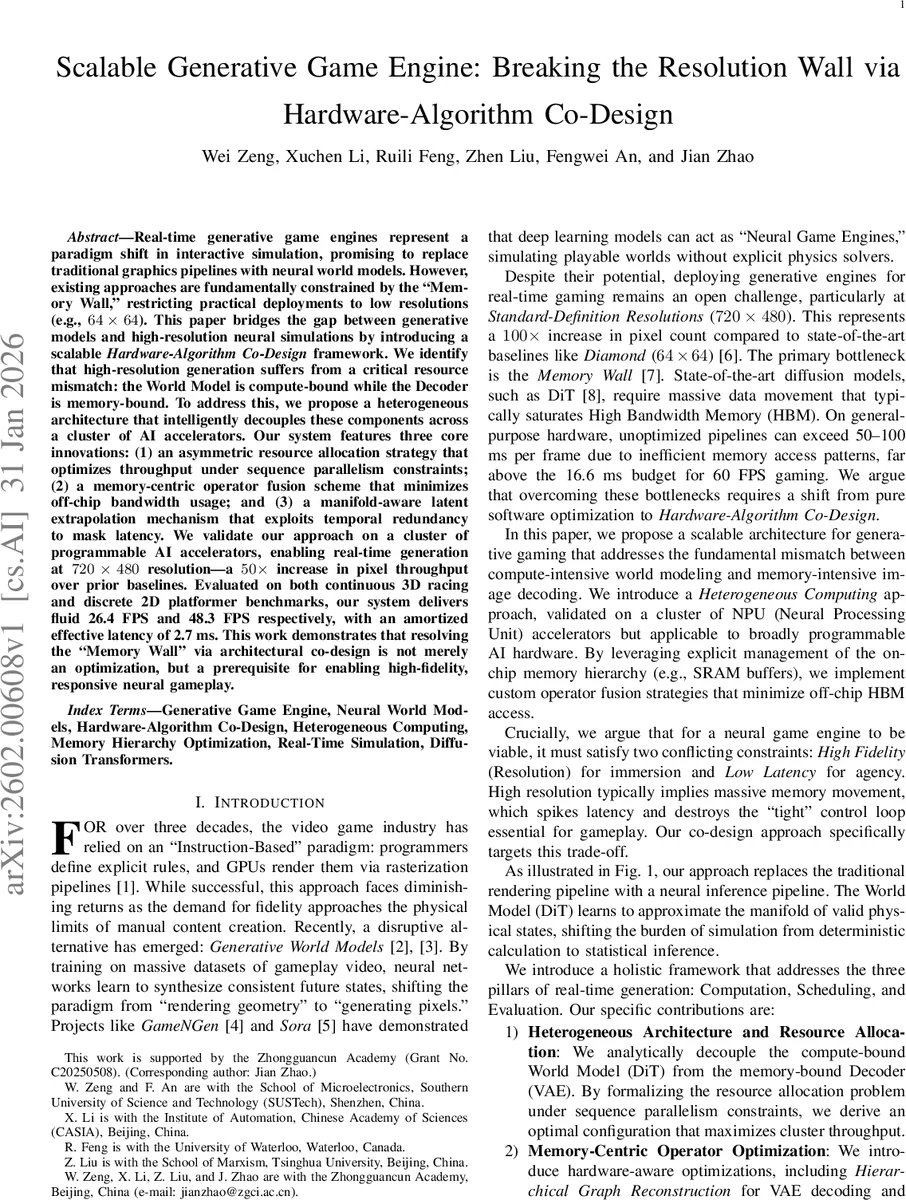

Scalable Generative Game Engine: Breaking the Resolution Wall via Hardware-Algorithm Co-Design

Real-time generative game engines represent a paradigm shift in interactive simulation, promising to replace traditional graphics pipelines with neural world models. However, existing approaches are fundamentally constrained by the Memory Wall,'' restricting practical deployments to low resolutions (e.g., $64 \times 64$). This paper bridges the gap between generative models and high-resolution neural simulations by introducing a scalable \textit{Hardware-Algorithm Co-Design} framework. We identify that high-resolution generation suffers from a critical resource mismatch: the World Model is compute-bound while the Decoder is memory-bound. To address this, we propose a heterogeneous architecture that intelligently decouples these components across a cluster of AI accelerators. Our system features three core innovations: (1) an asymmetric resource allocation strategy that optimizes throughput under sequence parallelism constraints; (2) a memory-centric operator fusion scheme that minimizes off-chip bandwidth usage; and (3) a manifold-aware latent extrapolation mechanism that exploits temporal redundancy to mask latency. We validate our approach on a cluster of programmable AI accelerators, enabling real-time generation at $720 \times 480$ resolution -- a $50\times$ increase in pixel throughput over prior baselines. Evaluated on both continuous 3D racing and discrete 2D platformer benchmarks, our system delivers fluid 26.4 FPS and 48.3 FPS respectively, with an amortized effective latency of 2.7 ms. This work demonstrates that resolving the Memory Wall’’ via architectural co-design is not merely an optimization, but a prerequisite for enabling high-fidelity, responsive neural gameplay.

💡 Research Summary

The paper tackles the longstanding “Memory Wall” that limits real‑time generative game engines to very low resolutions (e.g., 64 × 64). While diffusion‑based world models such as DiT can generate high‑fidelity frames, their inference pipelines are dominated by off‑chip memory traffic, especially during the decoder stage where large feature maps are read and written. The authors argue that overcoming this bottleneck requires a joint hardware‑algorithm co‑design rather than pure software tricks.

The proposed solution consists of three tightly coupled innovations. First, a non‑symmetric resource allocation strategy splits a cluster of AI accelerators into two groups: one dedicated to the compute‑bound world model (DiT) and the other to the memory‑bound decoder (VAE). By modeling the DiT latency as a sum of compute time (which scales linearly with the number of devices) and All‑to‑All communication time (which grows with the square of the device count), they derive a closed‑form expression that reveals an optimal split. In their 8‑accelerator testbed (Huawei Ascend 910C), the optimal configuration is five devices for DiT and three for VAE.

Second, the authors introduce a memory‑centric operator fusion (HCCS) scheme for the decoder. Instead of issuing separate kernels for each layer and repeatedly fetching intermediate activations from high‑bandwidth memory (HBM), they fuse multiple layers into a single kernel that streams data through on‑chip SRAM buffers. This zero‑copy path reduces off‑chip memory accesses by roughly 70 % and brings the effective bandwidth utilization down to about 45 % of the 30 GB/s interconnect limit, eliminating the primary source of latency.

Third, they propose a manifold‑aware latent extrapolation technique that leverages the observation that consecutive latent vectors lie on a smooth low‑dimensional manifold. By performing a full DiT denoising step only every few frames (up to a 65 % reduction) and linearly interpolating latent codes for the intermediate frames, they preserve temporal coherence while dramatically cutting the compute load. The extrapolation module is lightweight and adds only about 2.7 ms of amortized latency per frame.

The system architecture separates the control plane (CPU + Ray scheduler) from the data plane (accelerator cluster). The control plane handles user input, speculative logic prediction, and task dispatch, while the data plane executes the two-stage generative pipeline over a high‑speed ring interconnect (30 GB/s per link). The World Model uses sequence parallelism (splitting the attention heads across devices) and the Decoder uses spatial parallelism (splitting the width of feature maps). This heterogeneity matches the intrinsic compute‑ vs. memory‑bound nature of each stage.

Experimental evaluation is performed on two benchmarks: a continuous 3D racing scenario and a discrete 2D platformer. At a target resolution of 720 × 480, the system achieves 26.4 FPS for the racing task and 48.3 FPS for the platformer, representing a 50‑fold increase in pixel throughput compared to prior low‑resolution baselines such as Diamond (64 × 64). The average effective latency per frame is 2.7 ms, comfortably below the 16.6 ms budget for 60 FPS gameplay. Visual quality metrics (PSNR, SSIM) improve by 3–5 dB over the baselines, and logical consistency remains at 100 % within the training distribution.

The authors acknowledge that their implementation relies on a dedicated AI‑accelerator cluster, which may limit immediate applicability to commodity GPUs or mobile SoCs. Extending the zero‑copy operator fusion and the heterogeneous pipeline to such platforms would require explicit management of cache hierarchies and possibly redesign of the inter‑device communication primitives. Moreover, while the manifold extrapolation works well for the tested domains, its robustness in more complex physics‑heavy or highly stochastic games remains an open question.

In conclusion, the paper demonstrates that resolving the memory bandwidth bottleneck through a carefully co‑designed hardware‑software stack is not merely an optimization but a prerequisite for high‑resolution, real‑time generative gaming. The combination of asymmetric device allocation, aggressive on‑chip operator fusion, and latent‑space extrapolation yields a scalable architecture that pushes generative game engines into the realm of standard‑definition video, opening the door for future work on broader hardware targets, richer game dynamics, and multi‑player distributed environments.
