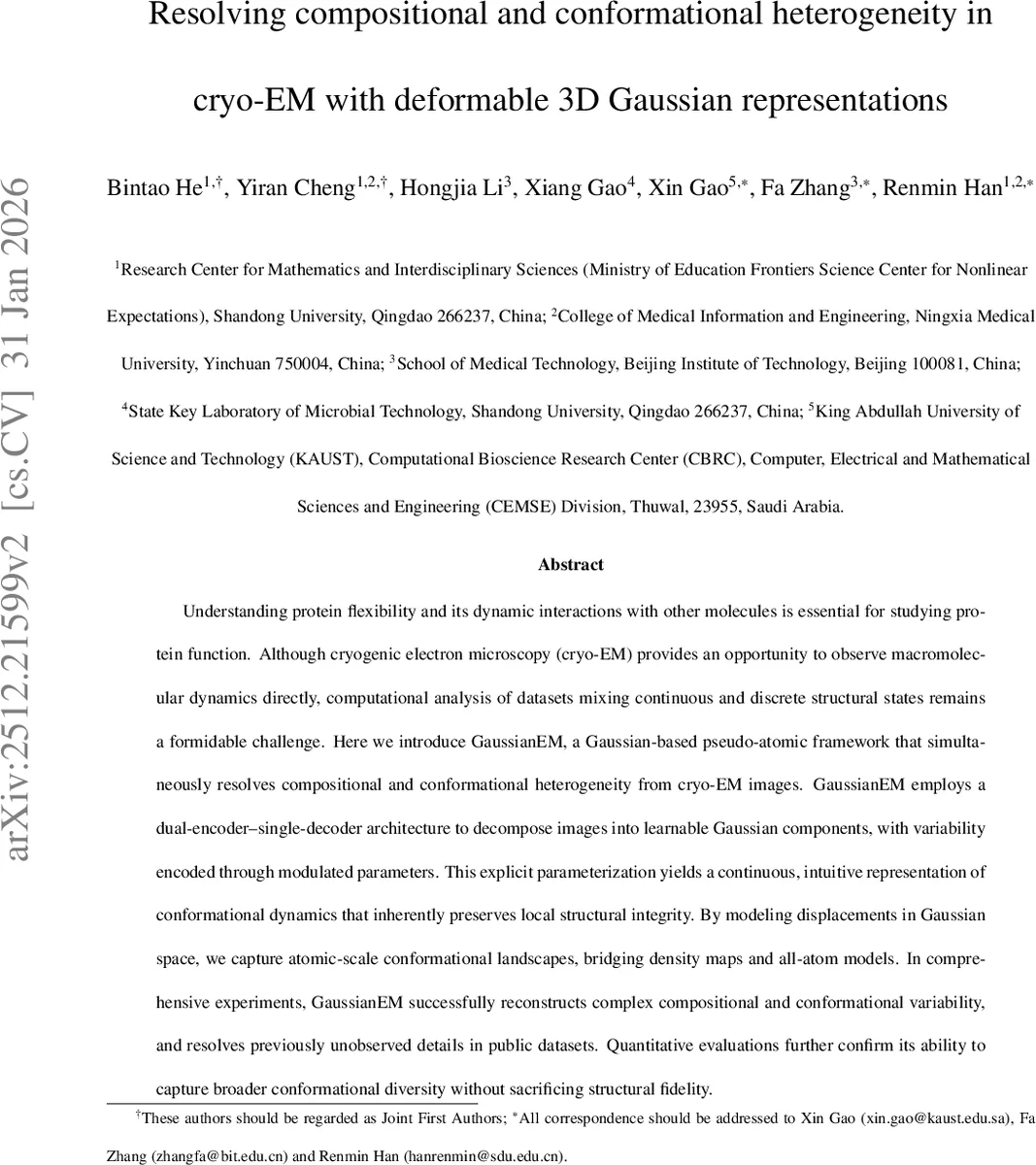

Resolving compositional and conformational heterogeneity in cryo-EM with deformable 3D Gaussian representations

Understanding protein flexibility and its dynamic interactions with other molecules is essential for studying protein function. Although cryogenic electron microscopy(cryo-EM) provides an opportunity to observe macromolecular dynamics directly, computational analysis of datasets mixing continuous and discrete structural states remains a formidable challenge. Here we introduce GaussianEM, a Gaussian-based pseudo-atomic framework that simultaneously resolves compositional and conformational heterogeneity from cryo-EM images. GaussianEM employs a dual-encoder-single-decoder architecture to decompose images into learnable Gaussian components, with variability encoded through modulated parameters. This explicit parameterization yields a continuous, intuitive representation of conformational dynamics that inherently preserves local structural integrity. By modeling displacements in Gaussian space, we capture atomic-scale conformational landscapes, bridging density maps and all-atom models. In comprehensive experiments, GaussianEM successfully reconstructs complex compositional and conformational variability,and resolves previously unobserved details in public datasets. Quantitative evaluations further confirm its ability to capture broader conformational diversity without sacrificing structural fidelity.

💡 Research Summary

The paper introduces GaussianEM, a novel framework for jointly resolving compositional and conformational heterogeneity in single‑particle cryo‑EM datasets. Unlike traditional classification‑based pipelines that rely on discrete classes, or recent neural‑radiance‑field (NeRF) approaches that map images to a continuous latent space but still require voxel‑based volume reconstruction, GaussianEM directly models macromolecular structures as a large set of three‑dimensional Gaussian functions (pseudo‑atoms). Each Gaussian is parameterized by a density value, a 3‑D scale vector (defining its covariance), and a 3‑D position, yielding seven learnable parameters per atom‑like element.

The architecture consists of two encoders and one decoder. The image encoder processes each 2‑D particle image and embeds it into a low‑dimensional continuous latent variable that captures the overall conformation of the particle. The Gaussian encoder receives the current attributes of every Gaussian (density, scale, position) and produces a unique embedding for each Gaussian, effectively learning a contextual representation of the pseudo‑atoms. Positional encoding, borrowed from NeRF, is applied to preserve high‑frequency spatial details. The decoder concatenates the image latent vector with each Gaussian’s embedding and predicts per‑Gaussian parameter updates (Δdensity, Δscale, Δposition). By applying these updates to a consensus Gaussian model, the method generates a deformed 3‑D Gaussian representation for each particle, which can be rendered into a density map or directly mapped onto an atomic model.

Training is performed in real space: rendered projections of the deformed Gaussian model (with known particle poses) are compared to the experimental images after CTF modulation, using an L2 loss. This real‑space comparison yields intuitive, physically meaningful deformation fields and avoids the indirect Fourier‑space reconstruction steps required by CryoDRGN‑type methods. A local rigidity regularization term encourages neighboring Gaussians to undergo similar motions, mitigating unrealistic local distortions that can arise in voxel‑based multi‑body refinements.

The authors evaluate GaussianEM on both simulated and real datasets. In a CryoBench simulation of an IgG antibody undergoing a full 360° rotation of one Fab domain, GaussianEM recovers the circular latent manifold, accurately reconstructs intermediate conformations, and maps Gaussian displacements onto atomic coordinates with an RMSD of 2.26 Å—far surpassing the earlier e2gmm approach, which failed on this large‑scale motion. On five public EMPIAR datasets (ribosome assembly, pre‑catalytic spliceosome, αVβ8 integrin, αVβ8 integrin bound to latent TGF‑β, and a Type VI secretion system effector), GaussianEM captures both discrete compositional differences (e.g., presence or absence of subunits) and continuous motions (e.g., domain swiveling). It discovers previously unresolved conformational states, such as novel T6SS effector configurations, and demonstrates smoother, more consistent local structural transitions compared with CryoDRGN, DynaMight, and 3DFlex. Quantitative assessments using Fourier Shell Correlation (FSC) and RMSD confirm that GaussianEM achieves higher resolution reconstructions while covering a broader conformational landscape.

Computationally, the method handles tens of thousands of Gaussians (sampling at a 2‑voxel interval) on a single RTX 3080 GPU, with training times ranging from 3 to 10 hours depending on dataset size. The approach balances resolution and computational cost by allowing the user to adjust the number of Gaussians; more Gaussians yield finer detail at the expense of longer training.

Key contributions include: (1) a pseudo‑atomic Gaussian representation that simultaneously encodes presence/absence (compositional heterogeneity) and positional shifts (conformational heterogeneity); (2) a dual‑encoder architecture that efficiently learns per‑Gaussian variations without feeding all parameters into a monolithic network; (3) real‑space loss formulation that provides intuitive deformation fields and facilitates direct mapping to atomic models; (4) demonstration of superior performance on both simulated large‑scale motions and challenging experimental datasets, revealing novel structural states.

Limitations noted by the authors involve the reliance on pre‑estimated particle poses (fixed during training), the need for manual selection of Gaussian count, and the current handling of a single, fixed CTF per micrograph. Future work may integrate pose refinement, adaptive Gaussian number selection, and more sophisticated CTF modeling to create a fully end‑to‑end heterogeneous reconstruction pipeline.

Overall, GaussianEM represents a significant advance in cryo‑EM data analysis, offering a physically interpretable, high‑resolution, and computationally tractable solution for dissecting the rich heterogeneity inherent in macromolecular complexes.
