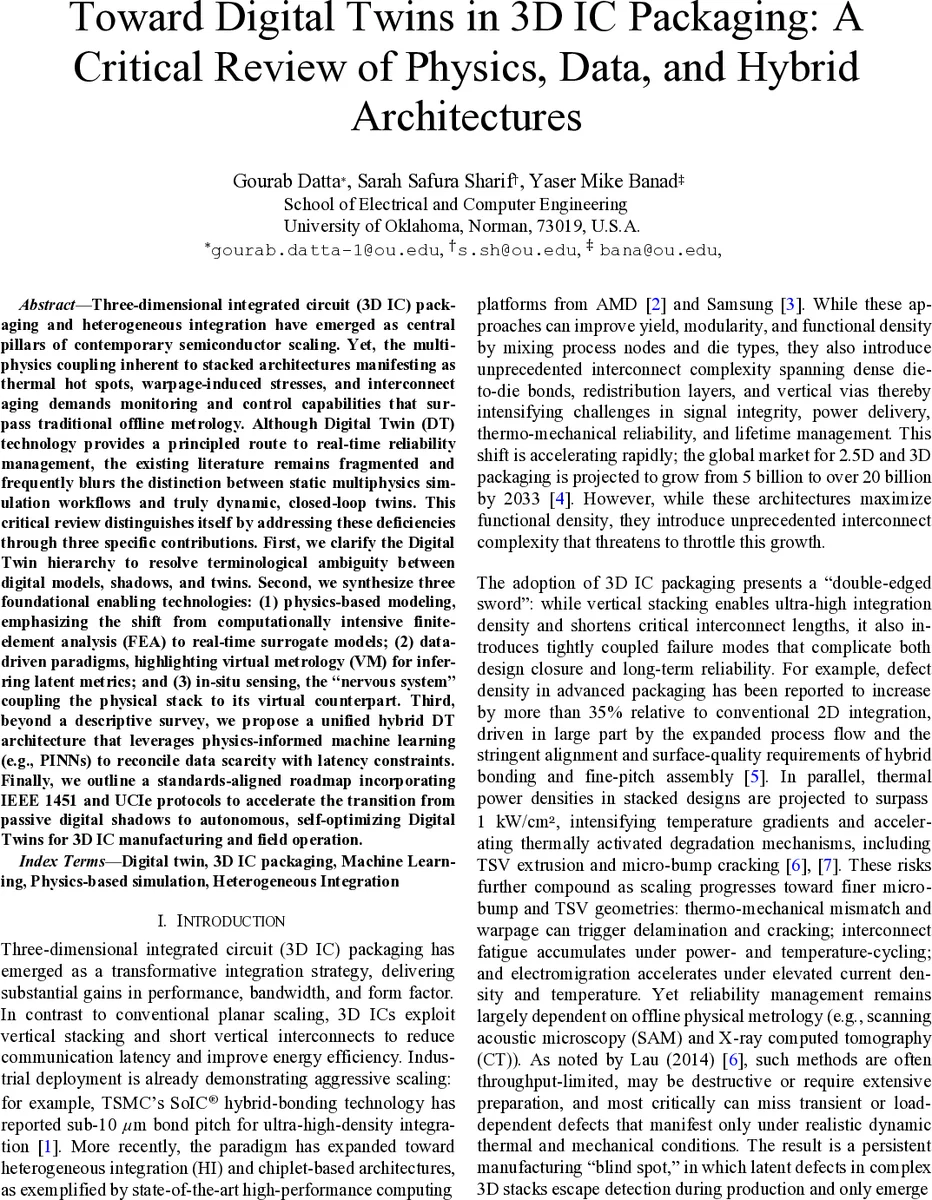

Toward Digital Twins in 3D IC Packaging: A Critical Review of Physics, Data, and Hybrid Architectures

Three-dimensional integrated circuit (3D IC) pack-aging and heterogeneous integration have emerged as central pillars of contemporary semiconductor scaling. Yet, the multi-physics coupling inherent to stacked architectures manifesting as thermal hot spots, warpage-induced stresses, and interconnect aging demands monitoring and control capabilities that surpass traditional offline metrology. Although Digital Twin (DT) technology provides a principled route to real-time reliability management, the existing literature remains fragmented and frequently blurs the distinction between static multiphysics simulation workflows and truly dynamic, closed-loop twins. This critical review distinguishes itself by addressing these deficiencies through three specific contributions. First, we clarify the Digital Twin hierarchy to resolve terminological ambiguity between digital models, shadows, and twins. Second, we synthesize three foundational enabling technologies: (1) physics-based modeling, emphasizing the shift from computationally intensive finite-element analysis (FEA) to real-time surrogate models; (2) data-driven paradigms, highlighting virtual metrology (VM) for inferring latent metrics; and (3) in-situ sensing, the nervous system coupling the physical stack to its virtual counterpart. Third, beyond a descriptive survey, we propose a unified hybrid DT architecture that leverages physics-informed machine learning (e.g., PINNs) to reconcile data scarcity with latency constraints. Finally, we outline a standards-aligned roadmap incorporating IEEE 1451 and UCIe protocols to accelerate the transition from passive digital shadows to autonomous, self-optimizing Digital Twins for 3D IC manufacturing and field operation.

💡 Research Summary

The paper presents a comprehensive critical review of the emerging field of Digital Twins (DTs) for three‑dimensional integrated circuit (3D IC) packaging and heterogeneous integration. It begins by highlighting the unique reliability challenges of stacked semiconductor architectures—thermal hot spots, warpage‑induced stresses, TSV extrusion, micro‑bump cracking, and electromigration—that are exacerbated by the high power densities (>1 kW/cm²) and fine‑pitch interconnects typical of modern chiplet‑based designs. Traditional offline metrology (e.g., scanning acoustic microscopy, X‑ray CT) is shown to be throughput‑limited, often destructive, and incapable of capturing transient, load‑dependent defects, creating a “blind spot” in manufacturing and field operation.

To bridge this gap, the authors adopt the ISO 23247‑aligned taxonomy that distinguishes three hierarchical DT levels: (1) Digital Model – a static, offline simulation (e.g., high‑fidelity FEA) with manual data entry and no automated data flow; (2) Digital Shadow – a one‑way, real‑time synchronization where sensor data updates a virtual replica but the replica does not influence the physical asset; and (3) Digital Twin – a fully closed‑loop system in which the virtual entity continuously mirrors the physical state and autonomously issues control actions to optimize performance. A literature audit reveals that >80 % of reported “digital twins” in 3D IC packaging are in fact Digital Shadows or static models, and true closed‑loop twins remain rare prototypes.

The review then structures the enabling technologies into three foundational pillars:

1. Physics‑Based Pillar – The authors argue that conventional finite‑element analysis, while accurate, is computationally prohibitive for real‑time use. They survey surrogate‑model approaches (reduced‑order models, response‑surface methods) and focus on Physics‑Informed Neural Networks (PINNs) as a promising avenue. PINNs embed governing differential equations directly into the loss function, allowing the network to respect thermomechanical coupling even with limited training data, thereby achieving a favorable fidelity‑latency trade‑off.

2. Data‑Driven Pillar – Virtual Metrology (VM) is presented as the core inferential sensing technique. By correlating process parameters and in‑situ sensor streams with latent quality metrics (temperature gradients, warpage, stress), VM can predict hard‑to‑measure attributes. The paper reviews Bayesian regression, graph neural networks, and temporal deep learning models, and discusses strategies to mitigate data scarcity: transfer learning across device families, multi‑task learning, and active learning to prioritize informative experiments.

3. Sensing Foundation – A “nervous system” is defined that integrates embedded sensors (temperature, strain, current, optical) via standardized interfaces such as IEEE 1451 (Smart Transducer Interface) and the emerging UCIe (Universal Chiplet Interconnect Express) protocol. The authors quantify bandwidth, latency, and security requirements, and propose a modular data‑pipeline architecture that timestamps, tags, and streams multi‑modal telemetry to the digital counterpart.

Building on these pillars, the authors propose a unified Hybrid Digital Twin Architecture. The core engine is a physics‑informed surrogate (PINN or reduced‑order model) that provides rapid predictions of coupled thermomechanical fields. A VM layer continuously calibrates this engine using real‑time sensor data, correcting model drift and compensating for process variations. The closed‑loop controller can be realized via Model Predictive Control (MPC) or Reinforcement Learning (RL), enabling autonomous actions such as adaptive power‑budgeting, TSV stress‑relief scheduling, or dynamic bump‑pitch tuning. The architecture is deliberately modular: each pillar can be upgraded independently, supporting scalability from wafer‑level test to full‑system field deployment.

Finally, the paper outlines a standards‑aligned roadmap in three phases:

• Phase 1 – Digital Model → Digital Shadow: Integrate existing CAD/FEA tools with IEEE 1451‑compliant sensors to create real‑time dashboards (digital shadows). This establishes data collection and synchronization infrastructure without feedback control.
• Phase 2 – Hybrid Shadow: Introduce PINN‑based surrogates and VM calibration to achieve real‑time prediction and error correction, moving toward a bidirectional data flow while still operating in a monitoring‑only mode.
• Phase 3 – Full Digital Twin: Deploy closed‑loop control using RL/MPC, leveraging UCIe for high‑speed intra‑package communication, and conform to emerging industry standards for data models, security, and lifecycle management. This phase targets autonomous reliability management across design, assembly, and field operation.

Throughout, the authors emphasize that the convergence of physics‑based modeling, data‑driven inference, and standardized in‑situ sensing is essential to overcome three fundamental barriers: latency of high‑fidelity solvers, data sparsity of failure events, and limited observability due to packaging opacity. By providing a clear taxonomy, a synthesized set of enabling technologies, a concrete hybrid architecture, and a phased implementation plan anchored in IEEE 1451 and UCIe, the paper delivers a practical blueprint for researchers and industry practitioners aiming to transition from passive monitoring to self‑optimizing Digital Twins in 3D IC packaging.
