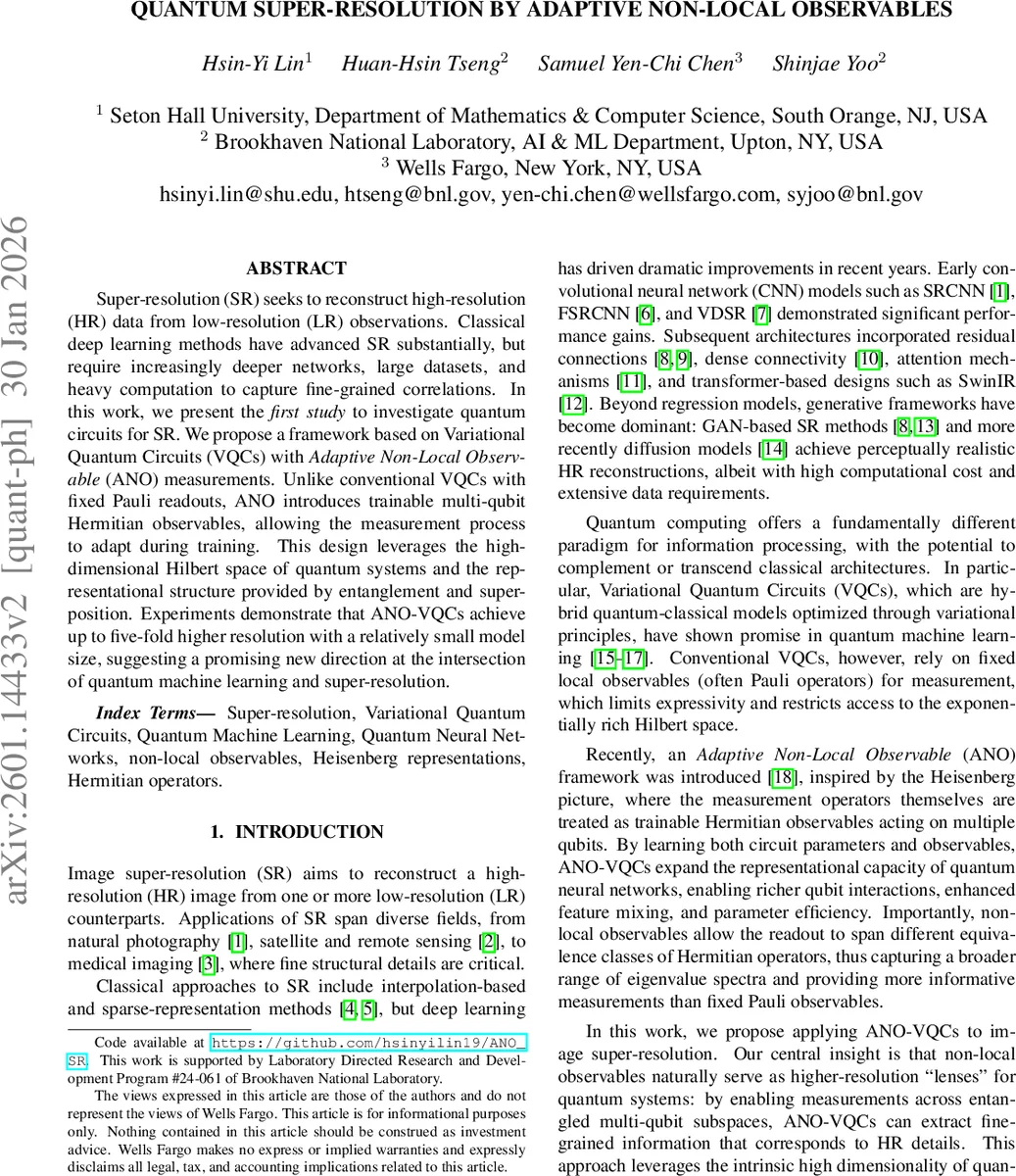

Quantum Super-resolution by Adaptive Non-local Observables

Super-resolution (SR) seeks to reconstruct high-resolution (HR) data from low-resolution (LR) observations. Classical deep learning methods have advanced SR substantially, but require increasingly deeper networks, large datasets, and heavy computation to capture fine-grained correlations. In this work, we present the \emph{first study} to investigate quantum circuits for SR. We propose a framework based on Variational Quantum Circuits (VQCs) with \emph{Adaptive Non-Local Observable} (ANO) measurements. Unlike conventional VQCs with fixed Pauli readouts, ANO introduces trainable multi-qubit Hermitian observables, allowing the measurement process to adapt during training. This design leverages the high-dimensional Hilbert space of quantum systems and the representational structure provided by entanglement and superposition. Experiments demonstrate that ANO-VQCs achieve up to five-fold higher resolution with a relatively small model size, suggesting a promising new direction at the intersection of quantum machine learning and super-resolution.

💡 Research Summary

The paper introduces a novel quantum‑based framework for image super‑resolution (SR) that leverages Variational Quantum Circuits (VQCs) equipped with Adaptive Non‑Local Observables (ANO). Classical SR methods have achieved impressive results using deep convolutional, residual, dense, transformer, GAN, and diffusion architectures, but they increasingly demand deeper networks, larger datasets, and substantial computational resources. The authors propose to address these challenges by moving part of the representation burden into the quantum domain, where the exponentially large Hilbert space can be accessed with relatively few qubits.

In a standard VQC, a classical input vector x is first encoded into a quantum state |ψₓ⟩ by an encoding unitary V(x) (Eq. 3). A parametrized variational unitary U(θ) (Eq. 4) then transforms the state, and finally a fixed observable—typically a Pauli operator—is measured to produce the model output fθ(x)=⟨ψθ,x|H|ψθ,x⟩ (Eq. 1). The key limitation of this scheme is that the measurement operator H is static, which restricts the circuit’s expressive power.

The authors overcome this by making the observable itself trainable. They define a k‑local Hermitian matrix H(ϕ) (Eq. 5) whose entries are real parameters ϕ=(aij,bij,cii). When k>1 the observable acts non‑locally on multiple qubits, allowing the measurement to capture correlations that single‑qubit Pauli operators cannot. This Adaptive Non‑Local Observable (ANO) turns the measurement stage into a learnable component, effectively expanding the function class of the VQC (Fig. 2).

The proposed ANO‑VQC for SR follows three stages: (1) Encoding – each low‑resolution (LR) image is vectorized and embedded into an n‑qubit state via V(x); (2) Variational transformation – a stack of L layers of U(θ) explores the quantum state space; (3) HR reconstruction – the adaptive k‑local observable H(ϕ) is measured repeatedly, and the expectation values are mapped to high‑resolution (HR) pixel intensities. Both θ and ϕ are optimized jointly using a composite loss L(θ,ϕ)=c₁·MSE + c₂·LPIPS (Eq. 6). MSE enforces pixel‑wise fidelity, while LPIPS (Learned Perceptual Image Patch Similarity) encourages perceptual realism by comparing deep features from a pretrained network.

Experiments are conducted on the MNIST dataset. LR inputs are down‑sampled to 4×4, and three up‑sampling factors are tested: ×3 (12×12), ×4 (16×16), and ×5 (20×20). Two variants of the model are evaluated: a 2‑local ANO (observables act on pairs of qubits) and a 3‑local ANO (triplet observables). Quantitative results (Table 1) show that the 3‑local model consistently achieves lower MSE, higher PSNR, and higher SSIM than the 2‑local counterpart across all scaling factors. For the ×3 task, 3‑local ANO‑VQC reaches MSE = 0.35, PSNR = 24.85 dB, SSIM = 0.87, compared with 0.42, 24.13 dB, and 0.84 for the 2‑local model. However, LPIPS is slightly higher (0.17 vs 0.16), indicating a modest perceptual trade‑off: the deeper non‑local measurement captures finer high‑frequency details but may produce slightly less natural textures.

Qualitative visualizations (Fig. 4) confirm that 3‑local ANO‑VQC reconstructs sharper digit strokes and clearer edges, while the 2‑local version yields smoother but somewhat blurrier outputs. The authors argue that the adaptive measurement acts as a “lens” that magnifies subtle features encoded in the entangled quantum state, thereby achieving higher resolution without requiring deeper circuits or more qubits.

The paper concludes that making observables adaptive is a powerful way to boost the expressive capacity of VQCs for vision tasks. It highlights several limitations and future directions: (i) experiments are limited to a simple grayscale dataset; (ii) the circuits are shallow to stay within NISQ hardware constraints, so scalability to larger images and color channels remains open; (iii) robustness to hardware noise and measurement errors needs systematic study; (iv) integration with classical post‑processing (e.g., refinement networks) could further improve quality; and (v) theoretical analysis of the observable’s spectral properties could guide more efficient ANO designs.

Overall, the work presents a compelling proof‑of‑concept that adaptive, non‑local quantum measurements can be harnessed for super‑resolution, opening a new research avenue at the intersection of quantum machine learning and computational imaging.
