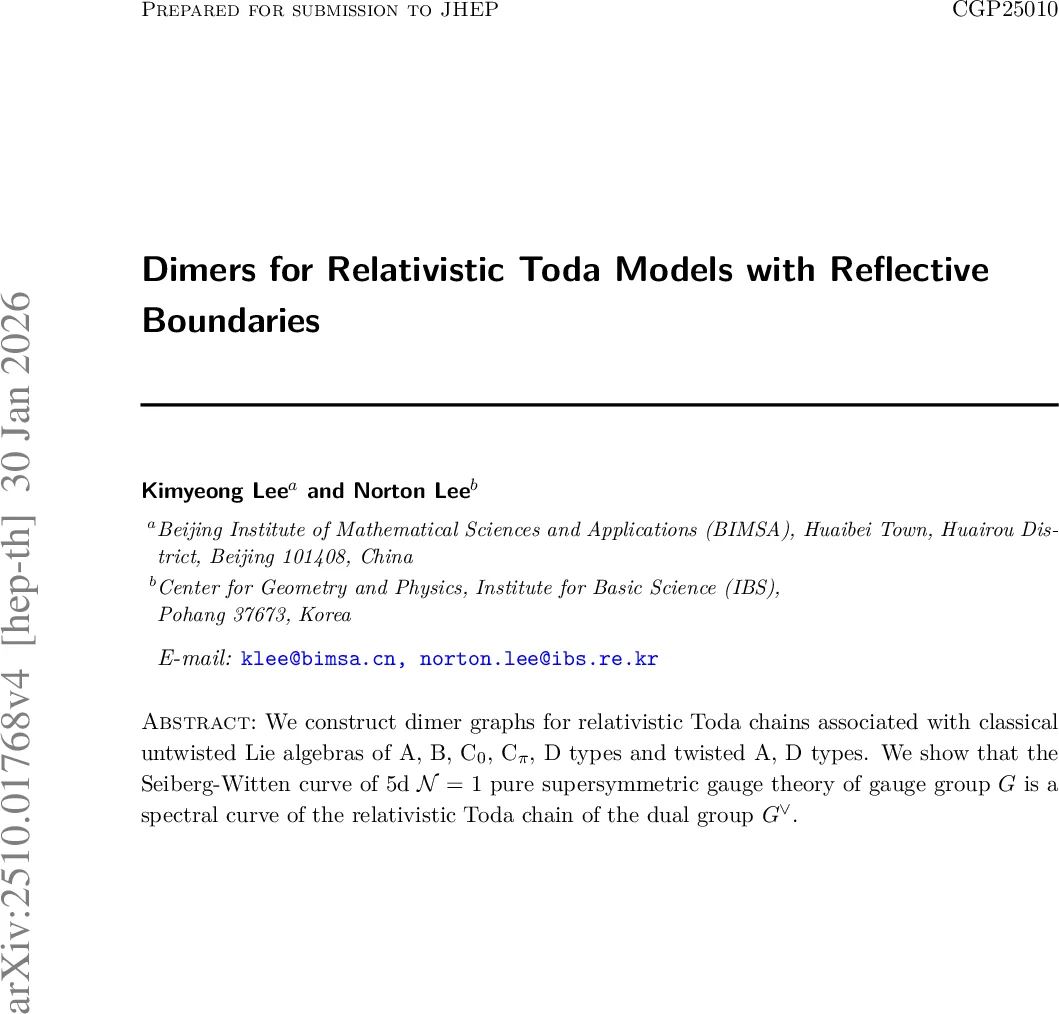

Dimers for Relativistic Toda Models with Reflective Boundaries

We construct dimer graphs for relativistic Toda chains associated with classical untwisted Lie algebras of A, B, C$_0$, C$_π$, D types and twisted A, D types. We show that the Seiberg-Witten curve of 5d $\mathcal{N}=1$ pure supersymmetric gauge theory of gauge group $G$ is a spectral curve of the relativistic Toda chain of the dual group $G^\vee$.

💡 Research Summary

The paper presents a comprehensive construction of dimer (bipartite graph) models for relativistic Toda chains (RTCs) associated with all classical untwisted Lie algebras (A, B, C₀, Cπ, D) and their twisted counterparts (twisted A and D). Starting from the well‑known Seiberg–Witten (SW) framework, the authors recall that the low‑energy dynamics of a five‑dimensional N=1 supersymmetric gauge theory with gauge group G can be encoded in an integrable system whose spectral curve coincides with the SW curve. For 5d theories the relevant integrable systems are relativistic Toda chains, originally introduced for the A‑type root system and later generalized to other classical algebras.

In Section 2 the authors review the Lax formalism for RTCs. The 2 × 2 Lax matrix L(x; qₙ, pₙ) satisfies Sklyanin’s quadratic RLL relation with the trigonometric R‑matrix. The monodromy matrix t_N(x) is built as an ordered product of Lax matrices, and its trace yields the spectral curve y + det t_N(x) y = Tr t_N(x). The Hamiltonians Hₙ are extracted from the expansion of the trace and are in involution.

Section 2.1 introduces reflective boundary conditions that allow B, C, and D‑type Toda chains to be viewed as A‑type chains with additional “walls”. The authors write down the most general reflection matrices K⁺(x) and K⁻(x) obeying the reflection equation, then specialize to three families of boundary conditions:

• C‑type (long root at an end) with K matrices reducing to a simple permutation σ,
• B‑type (short root) with two sub‑cases (B‑1 and B‑2) distinguished by the choice of parameters α, β, δ,
• D‑type (both ends have long roots) where K depends on the dynamical variables (q, p) and shortens the effective chain length by one site.

Each boundary contributes extra terms J⁺, J⁻ to the Hamiltonian, reproducing the known Toda potentials for the corresponding Lie algebra.

Section 3 connects these algebraic constructions to cluster integrable systems defined on dimer graphs. A convex Newton polygon Δ determines a polynomial f_Δ(x,y) whose zero set is the spectral curve. The area of Δ gives the dimension of the X‑cluster Poisson variety, while the number of interior lattice points equals the genus. The quiver Q encodes the Poisson brackets ε_{ij}, and its planar dual Γ is a bipartite dimer on a torus. Face variables on Γ are identified with cluster variables; the Kasteleyn matrix D(x,y) of Γ yields the same spectral curve via det D(x,y)=0. The authors emphasize three equivalences: (i) SL(2,ℤ) modular transformations of (x,y) correspond to torus diffeomorphisms of the dimer, (ii) Hanany–Witten moves translate into birational cluster transformations (x, y)→(x,(x+a) y), and (iii) ordinary cluster mutations relate different seeds but preserve the integrable system.

In Section 3.1 the canonical dimer for the affine A₁^{(N)} (the Y_{N,0} model) is described. It has 2N faces, 2N black/white nodes, and 4N edges. The Poisson brackets among face variables reproduce the Cartan matrix of \widehat{sl}_N, with two Casimirs and four zig‑zag loops generating the center of the cluster algebra.

Section 4 provides explicit dimer constructions for each classical algebra. For each case the authors start from the A‑type dimer and modify it according to the appropriate reflection matrix:

• C₁^{N} (type C boundary) adds a σ‑type edge,
• (C₁^{N})^∨ = D₂^{N+1} (dual description) uses a D‑type boundary with dynamical K,
• A₂^{2N} (pure A‑type) reproduces the known Y_{2N,0} graph,
• B₁^{N} (type B boundary) introduces frozen vertices or a “plug” depending on the sub‑case,
• (B₁^{N})^∨ = A₂^{2N‑1} demonstrates Langlands duality at the level of dimers,
• D₁^{N} (type D boundary) inserts a coordinate‑dependent K‑matrix that shortens the chain.

In each example the authors verify that the determinant of the Kasteleyn matrix matches the spectral curve obtained from the Lax/Reflection formalism, thereby confirming that the Seiberg–Witten curve of the 5d N=1 pure gauge theory with gauge group G coincides with the spectral curve of the relativistic Toda chain of the Langlands dual group G^∨.

The concluding Section 5 summarizes the achievements and outlines future directions. The authors note that extending the construction to exceptional algebras (E₆, E₇, E₈) and to more general twisted affine algebras remains open. They also suggest that the dimer‑brane‑web correspondence could be exploited to study 5d SCFTs, 6d (2,0) theories, and their compactifications, as the dimer provides a combinatorial handle on the underlying integrable structure.

Overall, the paper unifies three powerful frameworks—Sklyanin’s R‑matrix/Lax approach, cluster algebras, and dimer models—to deliver a complete graphical realization of relativistic Toda chains for all classical Lie algebras, and it establishes a clear bridge between five‑dimensional supersymmetric gauge dynamics and the spectral theory of integrable systems.
