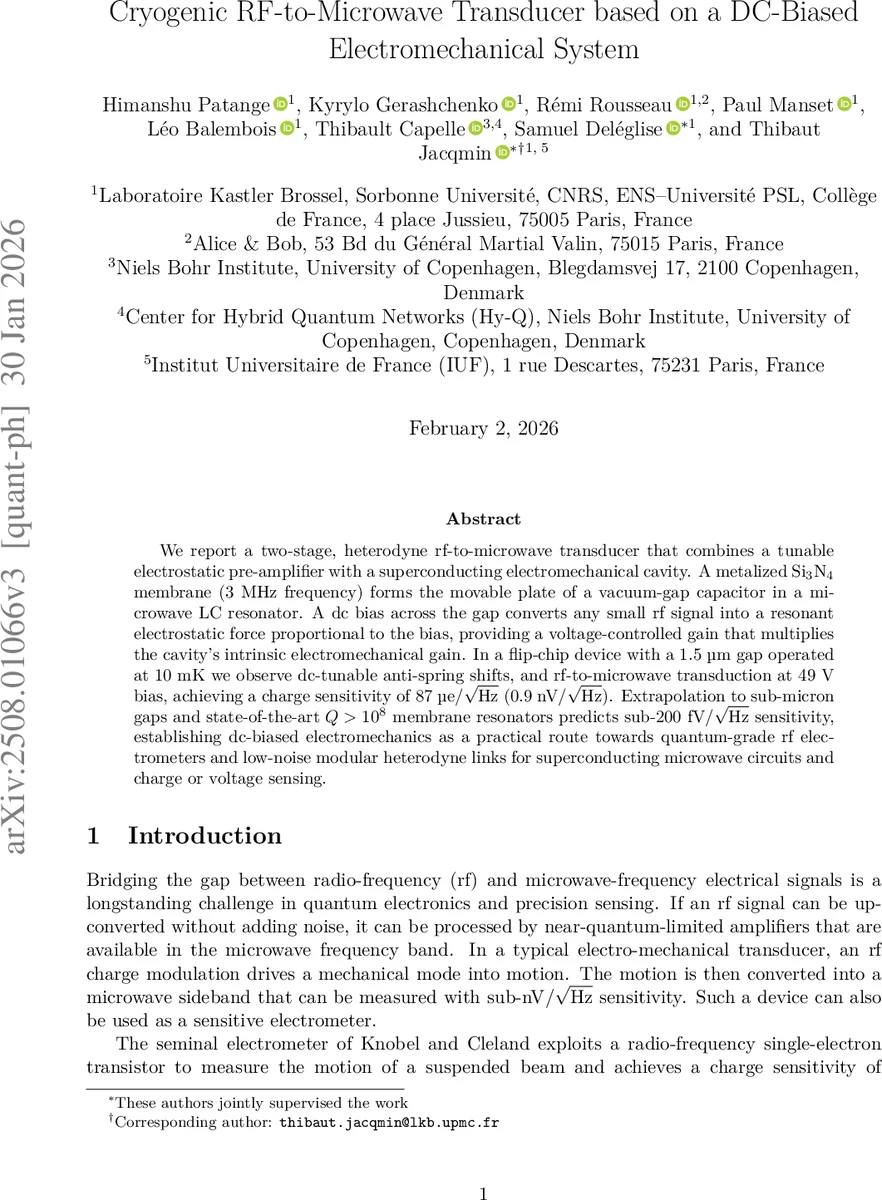

Cryogenic rf-to-microwave transducer based on a dc-biased electromechanical system

We report a two-stage, heterodyne rf-to-microwave transducer that combines a tunable electrostatic pre-amplifier with a superconducting electromechanical cavity. A metalized Si$_3$N$_4$ membrane (3 MHz frequency) forms the movable plate of a vacuum-gap capacitor in a microwave LC resonator. A dc bias across the gap converts any small rf signal into a resonant electrostatic force proportional to the bias, providing a voltage-controlled gain that multiplies the cavity’s intrinsic electromechanical gain. In a flip-chip device with a 1.5 $\mathrmμ$m gap operated at 10 mK we observe dc-tunable anti-spring shifts, and rf-to-microwave transduction at 49 V bias, achieving a charge sensitivity of 87 $\mathrmμ$e/$\sqrt{\mathrm{Hz}}$ (0.9 nV/$\sqrt{\mathrm{Hz}}$). Extrapolation to sub-micron gaps and state-of-the-art $Q>10^8$ membrane resonators predicts sub-200 fV/$\sqrt{\mathrm{Hz}}$ sensitivity, establishing dc-biased electromechanics as a practical route towards quantum-grade rf electrometers and low-noise modular heterodyne links for superconducting microwave circuits and charge or voltage sensing.

💡 Research Summary

The authors present a two‑stage, heterodyne rf‑to‑microwave transducer that combines a voltage‑tunable electrostatic pre‑amplifier with a superconducting electromechanical cavity. The device consists of a metalized high‑stress Si₃N₄ membrane (fundamental drum mode ≈ 3 MHz) that forms one plate of a vacuum‑gap capacitor embedded in a lumped‑element LC resonator at ≈ 6 GHz. A dc bias V applied across the gap converts a small rf voltage δV on the same line into a resonant electrostatic force proportional to V, providing an electrostatic gain G_V that scales linearly with the bias and peaks at the mechanical resonance. This force drives the membrane motion, which in turn modulates the microwave cavity frequency via the electromechanical coupling G = ∂ω_c/∂x. The cavity is probed with a red‑detuned pump (ω_d ≈ ω_c − Ω_m) so that the reflected signal contains sidebands at ω_d ± Ω_m. The sideband amplitude is amplified by the electromechanical gain G_em, which depends on the intracavity photon number n and the linearized coupling g₀ = G x_zpf. The total transduction gain is the product G_tot = G_V × G_em, allowing independent optimization of the electrostatic stage (via V) and the microwave stage (via pump power).

A comprehensive noise analysis includes thermal force noise, electrical force noise from the rf source, and back‑action noise from the cavity. In the low‑cooperativity limit (C ≪ 1) back‑action can be neglected, and the ultimate voltage sensitivity is given by S_min = √
