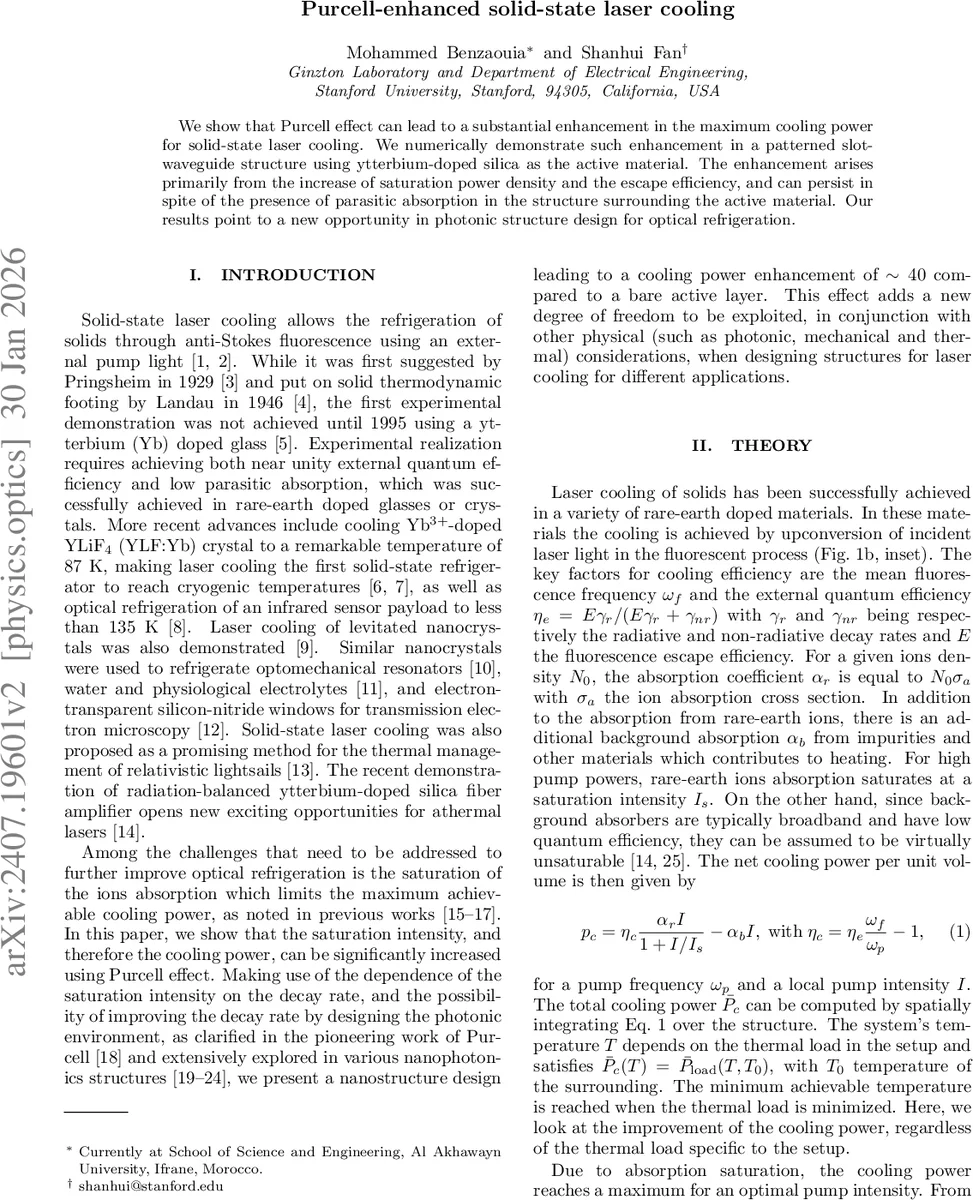

Purcell-enhanced solid-state laser cooling

We show that Purcell effect can lead to a substantial enhancement in the maximum cooling power for solid-state laser cooling. We numerically demonstrate such enhancement in a patterned slot-waveguide structure using ytterbium-doped silica as the active material. The enhancement arises primarily from the increase of saturation power density and the escape efficiency, and can persist in spite of the presence of parasitic absorption in the structure surrounding the active material. Our results point to a new opportunity in photonic structure design for optical refrigeration.

💡 Research Summary

The paper investigates how the Purcell effect—a modification of spontaneous emission rates by tailoring the photonic environment—can be harnessed to dramatically increase the maximum cooling power of solid‑state laser refrigeration. Conventional solid‑state laser cooling relies on anti‑Stokes fluorescence from rare‑earth ions (most commonly Yb³⁺) pumped by an external laser. The cooling power per unit volume is limited by the saturation intensity I_s of the ion absorption; once the pump intensity exceeds I_s, the absorption saturates and further increase in pump power does not translate into higher cooling. The authors point out that I_s is inversely proportional to the total radiative decay rate γ_r (see Eq. 3), and therefore any mechanism that increases γ_r will raise I_s and allow higher pump intensities before saturation occurs.

To exploit this, the authors design a nanophotonic “slot‑waveguide” structure. A thin (10 nm) Yb‑doped silica active layer is sandwiched between high‑index cladding layers (n≈4, thickness 86 nm). The cladding surfaces are patterned with a square lattice of air holes (period 0.91 µm, diameter 0.39 µm, depth 13 nm on each side). This geometry provides two crucial benefits: (i) strong confinement of the optical field inside the ultra‑thin active layer, leading to a broadband Purcell factor F≈18 averaged over the emission spectrum; (ii) a patterned surface that couples the emitted fluorescence efficiently to free space, giving an escape efficiency E≈1, whereas a plain slab would trap roughly half of the fluorescence (E≈0.5).

Using rigorous electromagnetic simulations (MESH code for Purcell factor, RCWA for pump field distribution), the authors compute the modified radiative decay rate γ′_r = F·γ_r, the shifted fluorescence frequency ω′_f, and the new saturation intensity I′_s = I_s·F (plus a small correction for quantum efficiency). They then evaluate the cooling power density p_c = η_c α_r I/(1+I/I_s) – α_b I, where η_c incorporates external quantum efficiency, fluorescence frequency, and pump frequency, α_r = N_0 σ_a is the resonant absorption, and α_b is background (parasitic) absorption.

Key results:

1. Cooling Power Enhancement – For the slot‑waveguide, the optimal pump wavelength (≈1.036 µm) and optimal pump intensity yield a cooling‑power density that is ~40× larger than that of a bare active slab. The dominant factor is the increased saturation intensity due to the Purcell‑enhanced radiative rate.

2. Robustness to Parasitic Loss – Even when the cladding’s background absorption α_b,clad is increased up to nine times the active‑layer absorption, the slot structure still outperforms the bare slab, although the absolute cooling power declines with higher loss.

3. Ion Concentration Trade‑off – Varying the Yb³⁺ concentration N_0 shows a classic trade‑off: higher N_0 raises resonant absorption α_r but reduces internal quantum efficiency η_q because of concentration quenching (modeled with a critical concentration N_C). The slot design provides higher cooling power across a broad range of N_0, indicating that the Purcell benefit is not limited to a narrow doping level.

4. Temperature Dependence – The slot‑waveguide delivers higher maximum cooling power at all examined temperatures (room temperature down to cryogenic). The minimum achievable temperature (MAT) is modestly reduced, mainly because the escape efficiency and slight blue‑shift of the fluorescence improve cooling in the unsaturated regime.

5. Physical Insight – By increasing the spontaneous emission rate, the Purcell effect effectively speeds up the extraction of thermal energy per photon (each anti‑Stokes photon removes η_c ħω_p β of heat). Faster emission means more photons per unit time, thus higher cooling power, without changing the energy per photon.

The authors conclude that Purcell‑enhanced radiative cooling opens a new degree of freedom for designing optical refrigeration devices. By engineering nanophotonic environments that provide high Purcell factors while maintaining low parasitic absorption and high escape efficiency, one can overcome the traditional saturation‑limited ceiling on cooling power. This approach could be combined with other strategies—such as optimizing material composition, waveguide geometry, or integrating with athermal laser architectures—to push solid‑state laser cooling toward higher powers and lower temperatures, enabling applications in high‑power lasers, space‑based sensors, cryogenic detectors, and quantum technologies.
