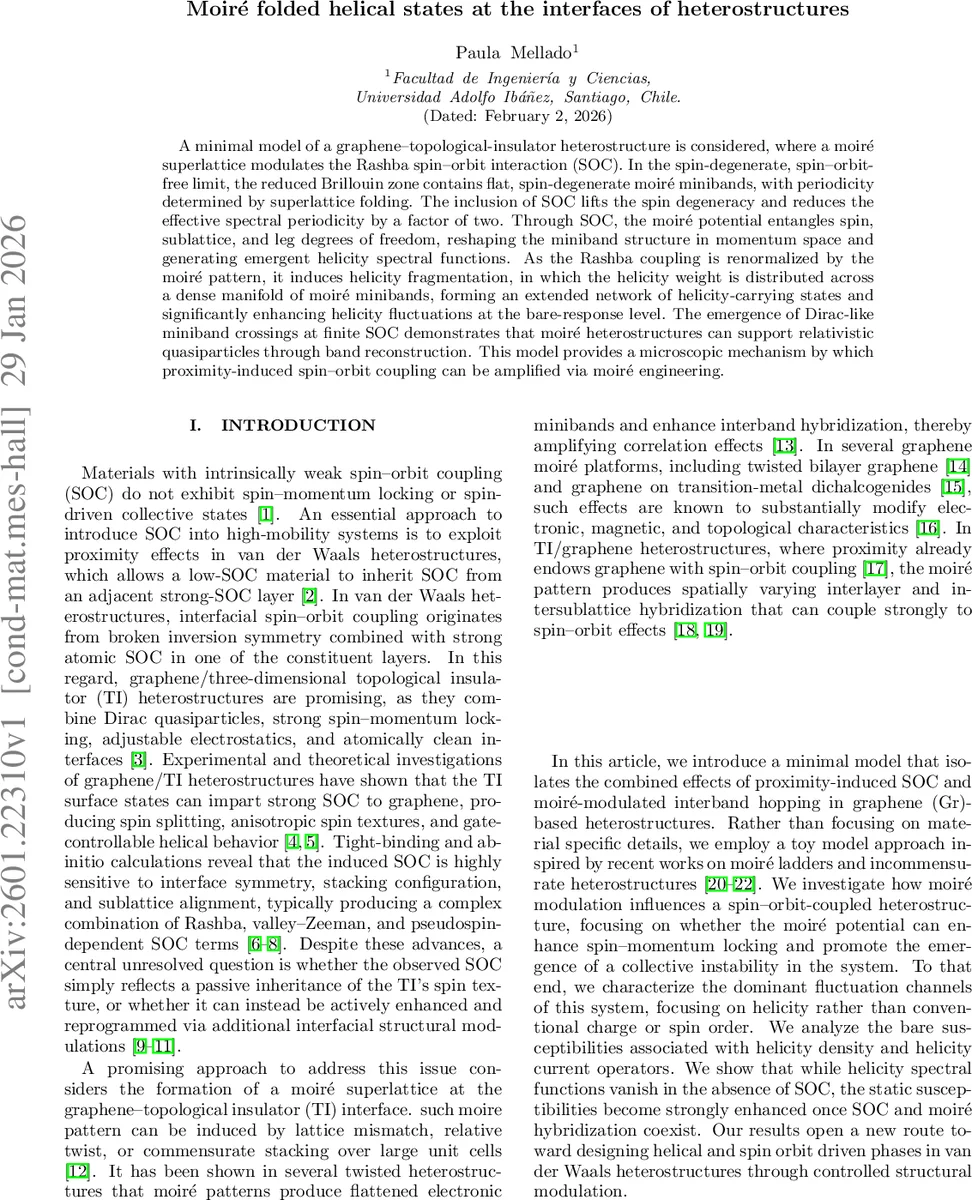

Moire folded helical states at the interfaces of heterostructures

A minimal model of a graphene topological insulator heterostructure is considered, where a moire superlattice modulates the Rashba spin orbit interaction. In the spin degenerate, spin orbit free limit, the reduced Brillouin zone contains flat, spin degenerate moire minibands, with periodicity determined by superlattice folding. The inclusion of spin orbit interaction lifts the spin degeneracy and reduces the effective spectral periodicity by a factor of two. Through spin orbit interaction, the moire potential entangles spin, sublattice, and leg degrees of freedom, reshaping the miniband structure in momentum space and generating emergent helicity spectral functions. As the Rashba coupling is renormalized by the moire pattern, it induces helicity fragmentation, in which the helicity weight is distributed across a dense manifold of moire minibands, forming an extended network of helicity carrying states and significantly enhancing helicity fluctuations at the bare response level. The emergence of Dirac like miniband crossings at finite spin orbit interaction demonstrates that moire heterostructures can support relativistic quasiparticles through band reconstruction. This model provides a microscopic mechanism by which proximity induced spin orbit coupling can be amplified via moire engineering.

💡 Research Summary

In this work the author presents a minimal theoretical model for a graphene–topological‑insulator (TI) heterostructure in which a moiré superlattice modulates a Rashba‑type spin‑orbit coupling (SOC). The system is mapped onto a two‑leg ladder: each leg represents one of the two graphene surfaces (top and bottom) and each leg contains two sub‑lattice sites (A and B). The hopping along leg 1 is uniform (t‖ = t), while hopping along leg 2 is dimerized by a rational mismatch parameter δ = p/q (e.g. δ = 19/20). This dimerization introduces a phase factor e^{−iπδ} and reduces the hopping amplitude to t(1 − δ). The inter‑leg (rung) tunneling is taken to be on average t⊥ ≈ t but acquires a spatial modulation t⊥(n) = t + t₁ cos(2πn/q) with t₁ = (1 − δ)t, thereby generating a moiré periodicity of q unit cells (real‑space supercell length L_s = 2q, reciprocal vector b_s = π/q).

The Rashba SOC is introduced as H_SOC = α∑j (c†{j+1} iσ_y c_j − h.c.). In leg 1 this yields the familiar momentum‑odd term ∝ sin k, while in leg 2 the dimerization shifts the momentum by πδ, giving a term ∝ sin(k − πδ) e^{iϕ(k)} with ϕ(k) = k(1 − δ)+πδ. Consequently the two legs carry opposite helicities (±σ_y), which the author encodes as a composite symmetry ˜T = T_{G_m} · R_y(π), i.e. a translation by a moiré reciprocal vector combined with a π‑rotation about the y‑axis in spin space. This symmetry squares to a translation by 2G_m and therefore halves the fundamental periodicity of the extended Brillouin zone (EBZ).

When SOC is absent (α = 0) the spectrum consists of q copies of the four‑band ladder (leg × sublattice × spin) folded into the EBZ. The bands are spin‑degenerate and essentially flat, producing a dense set of minibands whose periodicity is set by the moiré reciprocal vector. Small gaps open at the crossing points because the dimerization (δ ≠ 1) breaks inversion symmetry, leading to a density of states (DOS) with softened Van Hove singularities and a linear‑in‑energy “η‑shaped” background near the Fermi level.

Turning on Rashba SOC (α ≈ t) lifts the spin degeneracy. The momentum‑odd Rashba term changes sign under k → k + G_m, so pure moiré translations cease to be symmetries; only the combined operation ˜T remains. As a result the EBZ periodicity is reduced by a factor of two, which is clearly visible in the band plots. More importantly, the SOC entangles spin, sublattice, and leg degrees of freedom, producing avoided crossings throughout the miniband manifold. Because ˜T classifies states into two sectors, bands belonging to different sectors cannot hybridize at the same momentum, and when the moiré folding brings them together they cross linearly, forming Dirac‑like nodes. These nodes are symmetry‑protected and constitute emergent relativistic quasiparticles within an otherwise heavily folded miniband structure.

A central finding is the concept of “helicity fragmentation”. The Rashba coupling, now modulated by the moiré pattern, spreads the helicity weight (the expectation value of the helicity operator, defined as the difference of spin densities on the two legs) over a dense manifold of minibands rather than concentrating it in a few bands. This fragmentation dramatically enhances the bare helicity susceptibility. The author computes the Lindhard response functions for both helicity density and helicity current operators. In the SOC‑free case the helicity spectral functions vanish; with SOC and moiré modulation they become large, both statically (ω → 0) and dynamically (finite ω), indicating strong helicity fluctuations already at the non‑interacting level.

The paper therefore identifies three intertwined mechanisms: (1) a composite spin‑translation symmetry that halves the Brillouin‑zone periodicity, (2) SOC‑induced entanglement that fragments helicity across many minibands and amplifies helicity fluctuations, and (3) symmetry‑protected Dirac‑like crossings that endow the system with relativistic dispersion.

From an experimental perspective, the model suggests that by controlling the twist angle, lattice mismatch, or external electric field (which tunes α) in graphene‑TI stacks, one can engineer the moiré parameter δ and the Rashba strength simultaneously. This provides a route to amplify proximity‑induced SOC far beyond the simple transfer from the TI, to generate robust helical channels, and potentially to drive interaction‑driven phases such as quantum spin Hall states or spin‑density waves. The work thus offers a microscopic blueprint for moiré‑engineered spin‑orbit physics in van‑der‑Waals heterostructures and points toward new design principles for 2D spintronic and topological devices.
