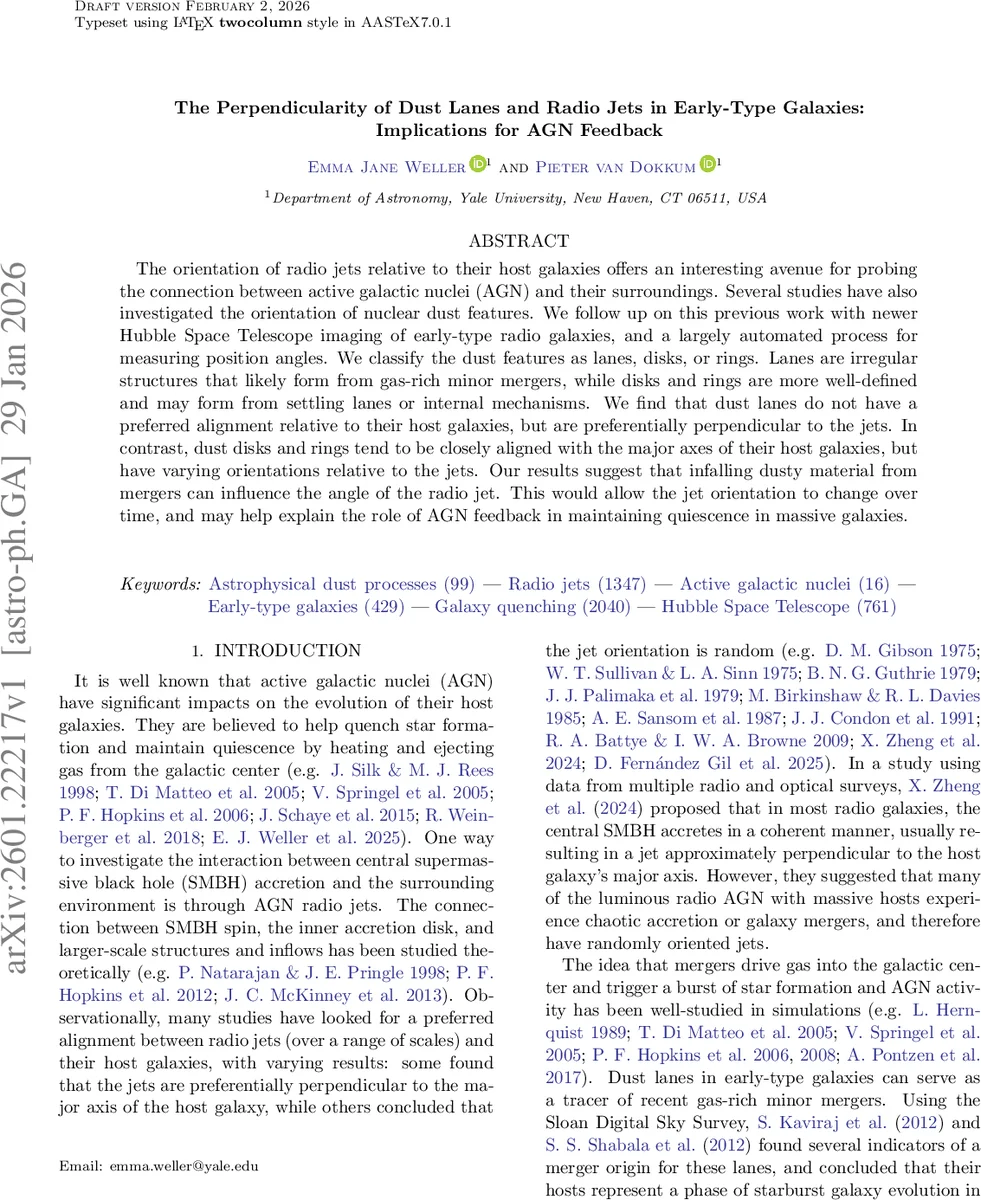

The Perpendicularity of Dust Lanes and Radio Jets in Early-Type Galaxies: Implications for AGN Feedback

The orientation of radio jets relative to their host galaxies offers an interesting avenue for probing the connection between active galactic nuclei (AGN) and their surroundings. Several studies have also investigated the orientation of nuclear dust features. We follow up on this previous work with newer Hubble Space Telescope imaging of early-type radio galaxies, and a largely automated process for measuring position angles. We classify the dust features as lanes, disks, or rings. Lanes are irregular structures that likely form from gas-rich minor mergers, while disks and rings are more well-defined and may form from settling lanes or internal mechanisms. We find that dust lanes do not have a preferred alignment relative to their host galaxies, but are preferentially perpendicular to the jets. In contrast, dust disks and rings tend to be closely aligned with the major axes of their host galaxies, but have varying orientations relative to the jets. Our results suggest that infalling dusty material from mergers can influence the angle of the radio jet. This would allow the jet orientation to change over time, and may help explain the role of AGN feedback in maintaining quiescence in massive galaxies.

💡 Research Summary

The paper investigates the geometric relationship between nuclear dust structures and radio jets in a sample of 32 early‑type radio galaxies, aiming to shed light on how active galactic nucleus (AGN) feedback is linked to the host galaxy’s morphology and recent merger activity. Using archival Hubble Space Telescope (HST) imaging (ACS/HRC, ACS/WFC, WFPC2/PC) and radio maps from the NRAO VLA Sky Survey (NVSS) and the Faint Images of the Radio Sky at Twenty‑Centimeters (FIRST), the authors develop a largely automated pipeline to measure position angles (PAs) for the host galaxy’s major axis, the dust feature, and the radio jet.

The image processing begins by clipping the brightest 0.01 % of pixels to define a maximum intensity, then employing the Photutils package to locate the galaxy and compute its PA. Dust detection proceeds by fitting and subtracting a Gaussian model of the galaxy, inverting the image, and applying a 20th‑percentile threshold to isolate absorption features. A second Photutils run with a 10σ detection threshold identifies the brightest residual source as the dust lane, disk, or ring, from which the dust PA is extracted. When the automated routine fails—particularly for irregular lanes—the authors manually adjust the PA. Radio jets are identified with PyBDSF; the brightest component nearest the optical nucleus is taken as the jet, and its PA is recorded. In cases where PyBDSF returns the PA of an extended lobe rather than the innermost jet, a manual measurement is performed. All PAs are reported in the range 0°–180°, measured east of north.

Dust morphologies are classified by visual inspection into four categories: lanes (irregular, likely recent minor‑merger remnants), disks (compact, settled structures), rings (more circular, possibly evolved disks), and “unclear” when the feature is ambiguous. Table 1 lists each galaxy’s redshift, dust PA, galaxy PA, jet PA, and literature values for comparison. The sample spans redshifts 0.003 – 0.1, with disks preferentially found at lower redshift because their compactness makes them harder to resolve at larger distances.

Statistical analysis reveals two distinct alignment regimes. First, dust lanes show no preferred orientation relative to the host galaxy’s major axis (ΔPA_gal‑dust is uniformly distributed), but they are preferentially perpendicular to the radio jet, with ΔPA_jet‑dust clustering around 60°–90°. This reproduces the classic result of Kotanyi & Ekers (1979) for a small sample and supports the notion that freshly accreted, unsettled material tends to lie in a plane orthogonal to the jet axis. Second, dust disks and rings are tightly aligned with the host galaxy’s major axis (ΔPA_gal‑dust ≲ 15°), yet their relative angles to the jet span the full 0°–180° range, indicating no systematic jet‑disk alignment. Some disks are nearly perpendicular to the jet, while others are almost parallel.

The authors interpret these findings in the context of AGN fueling and feedback. Gas‑rich minor mergers deposit fresh, misaligned material into the central kiloparsec, forming irregular lanes. The angular momentum of this infalling gas can torque the inner accretion flow and, consequently, the SMBH spin axis, causing the jet to re‑orient. As the gas settles, it forms more regular disks or rings that align with the host galaxy’s stellar potential, while the jet may retain the orientation set during the earlier merger‑driven phase. This scenario explains why jets are often perpendicular to lanes but show a wide range of angles relative to settled disks. The perpendicular configuration also maximizes the jet’s ability to sweep away or heat the inflowing gas, thereby contributing to the maintenance of quiescence in massive early‑type galaxies—a key aspect of AGN feedback.

Methodologically, the study demonstrates the feasibility of semi‑automated PA measurements across heterogeneous datasets, though it acknowledges limitations: irregular dust morphologies sometimes defeat the algorithm, and radio resolution (NVSS ≈ 45″, FIRST ≈ 5″) can blur inner jet structures, necessitating manual corrections. The authors suggest that future work with higher‑resolution radio interferometry (e.g., VLBI) and infrared imaging (e.g., JWST) could map the three‑dimensional geometry of dust and jets more precisely, allowing tests of jet precession models and the timescales of dust settling.

In summary, the paper confirms that dust lanes in early‑type radio galaxies are preferentially perpendicular to radio jets, while dust disks and rings align with the host galaxy’s major axis but display diverse jet angles. These results support a picture in which minor mergers supply misaligned gas that can re‑orient the SMBH spin and jet direction, and where the subsequent settling of this gas into disks does not necessarily realign the jet. The work thus links the observed geometry of dust and jets to the broader narrative of AGN feedback, galaxy quenching, and the evolutionary role of minor mergers in massive early‑type systems.
