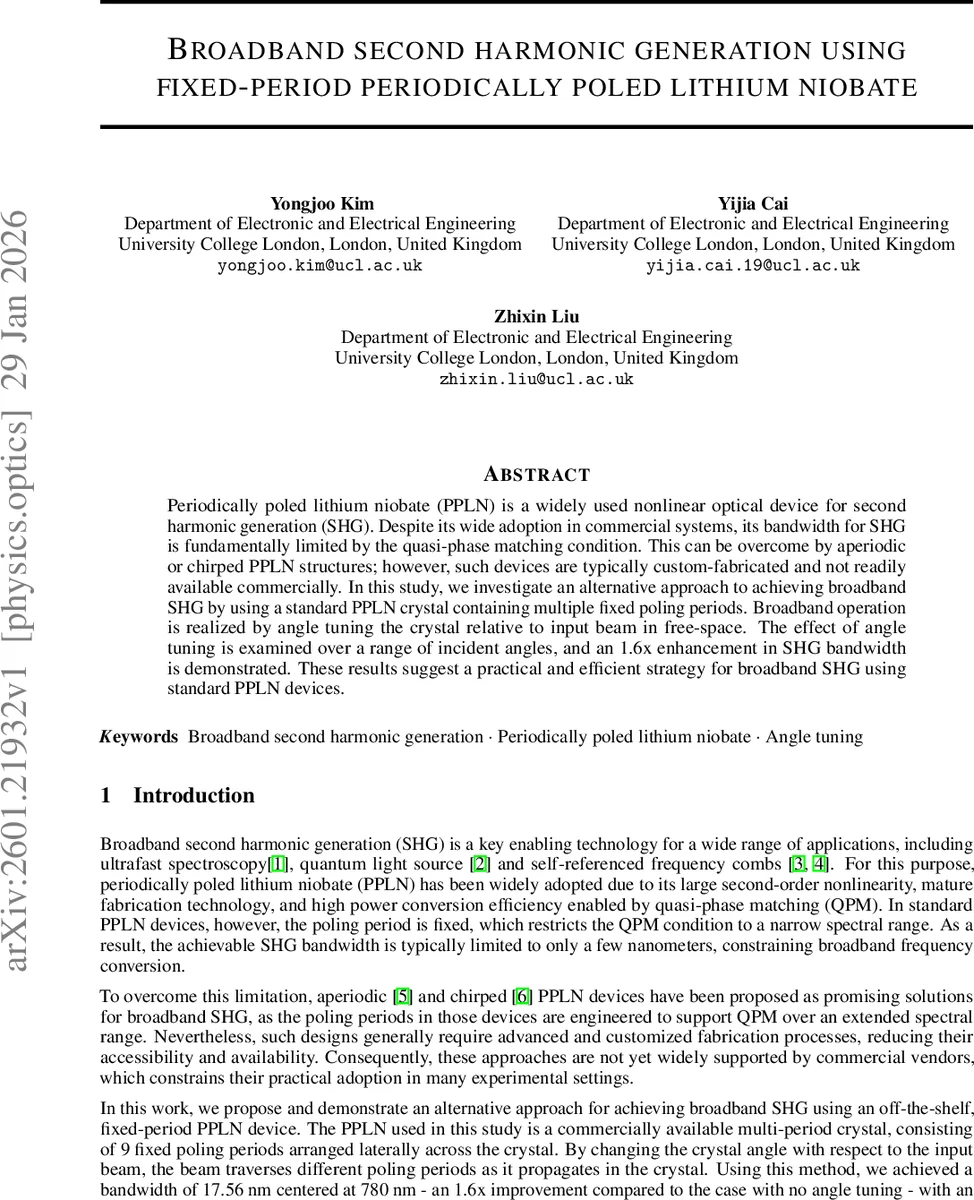

Broadband Second Harmonic Generation using Fixed-Period Periodically Poled Lithium Niobate

Periodically poled lithium niobate (PPLN) is a widely used nonlinear optical device for second harmonic generation (SHG). Despite its wide adoption in commercial systems, its bandwidth for SHG is fundamentally limited by the quasi-phase matching condition. This can be overcome by aperiodic or chirped PPLN structures; however, such devices are typically custom-fabricated and not readily available commercially. In this study, we investigate an alternative approach to achieving broadband SHG by using a standard PPLN crystal containing multiple fixed poling periods. Broadband operation is realized by angle tuning the crystal relative to input beam in free-space. The effect of angle tuning is examined over a range of incident angles, and an 1.6x enhancement in SHG bandwidth is demonstrated. These results suggest a practical and efficient strategy for broadband SHG using standard PPLN devices.

💡 Research Summary

In this work the authors demonstrate a practical route to broadband second‑harmonic generation (SHG) using a commercially available, multi‑period periodically poled lithium niobate (PPLN) crystal. Conventional PPLN devices employ a single, fixed poling period, which restricts quasi‑phase‑matching (QPM) to a narrow spectral window—typically only a few nanometres—thereby limiting their usefulness for broadband applications such as ultrafast spectroscopy, quantum light sources, or self‑referenced frequency combs. While aperiodic or chirped PPLN structures can broaden the phase‑matching bandwidth, they require custom fabrication and are not widely stocked by vendors.

The authors instead exploit a standard “multi‑period” PPLN that contains nine laterally arranged poling periods across the crystal face. By tilting the crystal relative to the incoming beam (angle‑tuning), the focused beam traverses different poling periods as it propagates, effectively sampling a set of distinct QPM conditions within a single pass. The experimental platform consists of a 1555 nm, 2.5 GHz repetition‑rate mode‑locked laser (MENHIR‑1550) amplified to 1 W by an erbium‑doped fiber amplifier (EDFA). The beam is free‑space focused to a 15 µm waist inside a 1 mm‑long PPLN crystal, a size chosen to stay below the damage threshold while remaining close to the Boyd‑Kleinman optimum. The crystal is mounted on a two‑axis translation stage and a rotation stage, allowing precise control of the beam‑crystal interaction point and tilt angle (θ). The generated 780 nm SH light is collected, relayed through imaging optics, and coupled into a 780 nm single‑mode fiber for spectral analysis.

Measurements were performed for tilt angles ranging from 0° to 40° in 10° increments. At normal incidence (θ = 0°) the SH spectrum shows a dominant lobe centered at 780 nm with pronounced side‑lobes, and a 10‑dB bandwidth of only 10.66 nm. As the tilt angle increases, the side‑lobes are progressively suppressed and the main lobe broadens: 15.75 nm at 10°, 16.91 nm at 20°, and 17.56 nm at 30°. This represents a 1.6‑fold increase in bandwidth compared with the untuned case. The authors attribute the broadening to two concurrent effects: (1) the effective interaction length within each individual poling period is reduced when the beam traverses the crystal at an angle, which relaxes the QPM bandwidth constraint; and (2) coherent superposition of SH contributions from successive periods along the beam path further widens the overall response. At θ = 40°, however, the trend reverses, suggesting that excessive tilt may limit the number of periods sampled or introduce geometric phase‑mismatch that degrades the constructive interference.

A trade‑off between bandwidth and conversion efficiency is observed, consistent with prior reports on broadband SHG in chirped PPLN. As the phase‑matching bandwidth expands, the peak nonlinear gain per unit length diminishes, leading to lower SH output power. Nevertheless, with a 1 W pump and modest focusing, the system remains well below the crystal’s damage threshold, delivering sufficient visible power for many practical applications.

The paper concludes that angle‑tuned, multi‑period PPLN offers a simple, low‑cost, and immediately deployable solution for broadband frequency doubling, eliminating the need for custom‑fabricated aperiodic gratings. The authors suggest that even broader SH spectra could be achieved by employing a source with a wider fundamental bandwidth (e.g., a supercontinuum) and by refining the theoretical model to include beam Rayleigh range, period spacing, grating aperture, and angular dependence. Future work may also explore simultaneous second‑ and third‑harmonic generation, or integration with waveguide platforms, to further expand the utility of this approach in visible and near‑infrared photonics.
