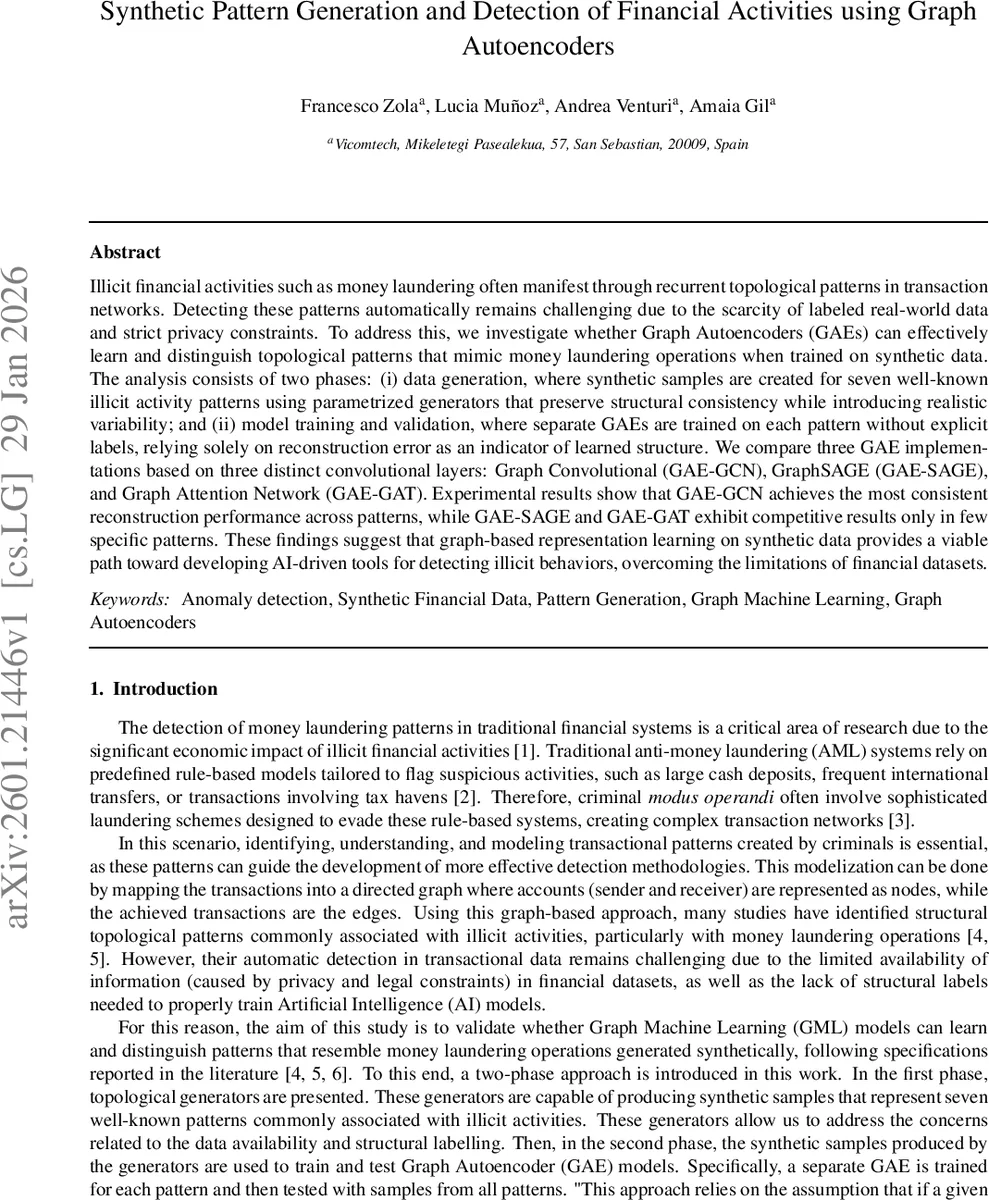

Synthetic Pattern Generation and Detection of Financial Activities using Graph Autoencoders

Illicit financial activities such as money laundering often manifest through recurrent topological patterns in transaction networks. Detecting these patterns automatically remains challenging due to the scarcity of labeled real-world data and strict privacy constraints. To address this, we investigate whether Graph Autoencoders (GAEs) can effectively learn and distinguish topological patterns that mimic money laundering operations when trained on synthetic data. The analysis consists of two phases: (i) data generation, where synthetic samples are created for seven well-known illicit activity patterns using parametrized generators that preserve structural consistency while introducing realistic variability; and (ii) model training and validation, where separate GAEs are trained on each pattern without explicit labels, relying solely on reconstruction error as an indicator of learned structure. We compare three GAE implementations based on three distinct convolutional layers: Graph Convolutional (GAE-GCN), GraphSAGE (GAE-SAGE), and Graph Attention Network (GAE-GAT). Experimental results show that GAE-GCN achieves the most consistent reconstruction performance across patterns, while GAE-SAGE and GAE-GAT exhibit competitive results only in few specific patterns. These findings suggest that graph-based representation learning on synthetic data provides a viable path toward developing AI-driven tools for detecting illicit behaviors, overcoming the limitations of financial datasets.

💡 Research Summary

The paper tackles the problem of automatically detecting illicit financial activity patterns—particularly those associated with money laundering—by leveraging graph autoencoders (GAEs) trained on synthetic transaction network data. Recognizing that real‑world AML datasets are scarce, heavily anonymized, and lack explicit sub‑graph labels, the authors propose a two‑phase methodology.

In Phase 1 they define seven canonical topological motifs that frequently appear in suspicious financial flows: Collector, Sink, Collusion, Scatter‑Gather, Gather‑Scatter, Cyclic, and Branching. For each motif a parametrized Python generator creates synthetic directed graphs. The generators randomize the number of input and output nodes, add noisy auxiliary nodes with controlled probabilities, and vary edge counts to mimic the structural variability observed in real transaction networks. Fifteen thousand graphs are generated per motif, yielding a total of 105 k synthetic samples. The dataset is split 80 % for training and 20 % for validation, ensuring that each graph carries a clear structural label.

Phase 2 trains three distinct GAE variants, each differing only in the encoder’s convolutional operation: (i) a Graph Convolutional Network (GCN) encoder (GAE‑GCN), (ii) a GraphSAGE encoder (GAE‑SAGE), and (iii) a Graph Attention Network encoder (GAE‑GAT). Input features comprise nine node‑level centrality measures (in‑degree, out‑degree, closeness, betweenness, harmonic, second‑order, Laplacian, constraint, and reciprocity) concatenated with the adjacency matrix, providing a rich representation of graph topology. Models are trained for up to 100 epochs with early stopping (patience = 3), batch size 25, and the Adam optimizer.

Evaluation relies on reconstruction error: after training on graphs of a single motif, each GAE attempts to reconstruct graphs from all seven motifs. Low error on the “self” motif (diagonal of the error matrix) indicates successful learning, while higher error on other motifs suggests discriminative capability. Results show that GAE‑GCN consistently achieves the lowest diagonal errors across most motifs, especially for the more complex multi‑step patterns (Cyclic, Branching). GAE‑SAGE performs competitively on Collector and Scatter‑Gather, whereas GAE‑GAT excels on Collusion and Branching but lags elsewhere. The superior performance of GCN is attributed to its direct use of the normalized Laplacian, which captures global structural similarity more effectively than the sampling‑based or attention‑based mechanisms of the other encoders.

The study demonstrates that synthetic, topology‑aware graph data can be used to pre‑train GAE models that reliably reconstruct known illicit patterns. By treating reconstruction error as an anomaly score, these models could flag unseen transaction sub‑graphs that deviate from learned benign or known suspicious structures, offering a label‑free detection tool for real‑time AML monitoring.

Limitations include the synthetic nature of the data, which does not capture temporal dynamics, transaction amounts, or account‑level attributes present in real financial systems. Moreover, training a separate GAE per motif may not scale to environments where multiple patterns coexist within a single transaction flow. Future work should explore multi‑task or hierarchical GAE architectures, incorporate temporal graph neural networks, and apply domain adaptation techniques to bridge the gap between synthetic and real datasets.

In summary, the paper provides a proof‑of‑concept that graph autoencoders, when trained on carefully generated synthetic topologies, can learn and differentiate the structural signatures of illicit financial activities, paving the way for privacy‑preserving, structure‑driven AML solutions.
