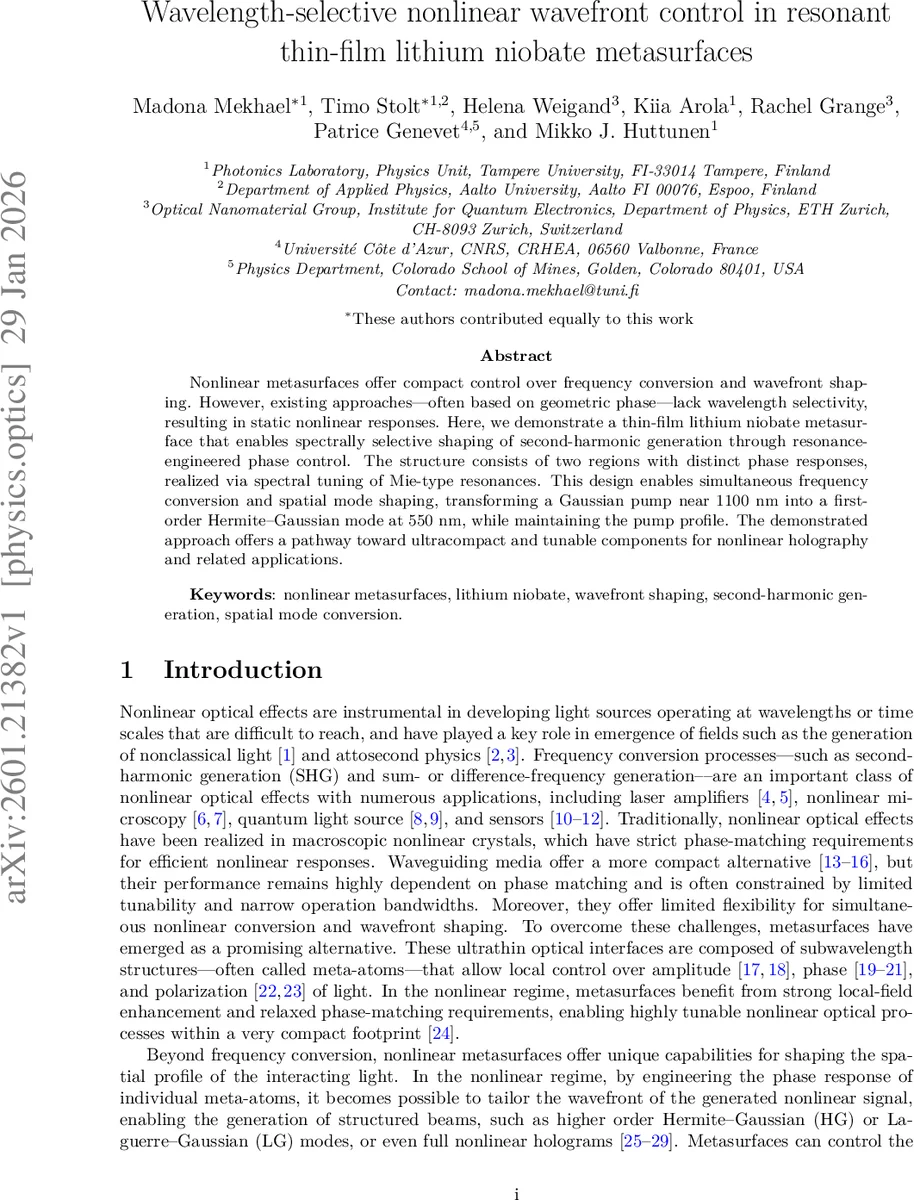

Wavelength-selective nonlinear wavefront control in resonant thin-film lithium niobate metasurfaces

Nonlinear metasurfaces offer compact control over frequency conversion and wavefront shaping. However, existing approaches, often based on geometric phase, lack wavelength selectivity, resulting in static nonlinear responses. Here, we demonstrate a thin-film lithium niobate metasurface that enables spectrally selective shaping of second-harmonic generation through resonance-engineered phase control. The structure consists of two regions with distinct phase responses, realized via spectral tuning of Mie-type resonances. This design enables simultaneous frequency conversion and spatial mode shaping, transforming a Gaussian pump near 1100 nm into a first-order Hermite-Gaussian mode at 550 nm, while maintaining the pump profile. The demonstrated approach offers a pathway toward ultracompact and tunable components for nonlinear holography and related applications.

💡 Research Summary

In this work the authors address a central limitation of current nonlinear metasurfaces – the lack of wavelength selectivity in the phase control of the generated harmonic signal. While geometric (Pancharatnam‑Berry) phase metasurfaces provide broadband operation, they impose the same phase profile on all wavelengths, making it impossible to tailor the wavefront of a nonlinear signal independently of the pump. By exploiting the broad transparency window (UV to mid‑IR), high second‑order susceptibility, and low loss of thin‑film lithium niobate (TFLN), the authors demonstrate a resonant‑phase approach that yields strong wavelength‑dependent phase shifts only at the second‑harmonic (SH) wavelength, leaving the pump untouched.

The metasurface consists of two laterally adjacent regions (A and B) patterned with truncated lithium‑niobate nanopyramids of different side lengths (≈170 nm for region A and ≈260 nm for region B). Finite‑difference time‑domain (FDTD) simulations guided the selection of a lattice constant p = 340 nm, pillar height h = 135 nm, and etch angle α ≈ 75°, which produce Mie‑type resonances near 530 nm and 565 nm. The two designs generate distinct complex polarizabilities α₁(λ) and α₂(λ); fitting the measured transmission spectra with Lorentzian functions allows reconstruction of the full complex polarizability and extraction of the resonant phase φ₁(λ) and φ₂(λ). At the target SH wavelength of 550 nm the phase difference Δφ = |φ₁ − φ₂| reaches ≈0.85π, sufficient to impose a π‑type phase step across the metasurface for the SH field while the pump (≈1100 nm) experiences no resonance and therefore no phase modulation.

Fabrication was performed without electron‑beam exposure, using soft nano‑imprint lithography to define the nanopatterns in a polymer resist, transfer into a silicon‑nitride hard mask, and subsequent inductively coupled plasma etching of the TFLN layer on quartz. This approach avoids metal contamination and enables large‑area (>0.1 mm²) devices. Scanning electron microscopy confirms the intended geometry, albeit with modest deviations (e.g., measured side lengths ≈252 nm and 195 nm, heights ≈136 nm and 119 nm) that slightly shift the resonances relative to the design.

Nonlinear optical measurements were carried out by focusing a tunable femtosecond laser (1000–1300 nm) onto the metasurface and imaging the SH emission (≈550 nm). When the pump spot is fully within region A or B, the SH beam exhibits a fundamental Gaussian (HG₀₀) profile. As the spot is translated across the interface, the SH pattern gradually morphs into a first‑order Hermite‑Gaussian (HG₀₁) mode, with a maximum overlap of ≈0.8 with an ideal HG₀₁ profile at the interface. Wavelength scans reveal that the best mode conversion occurs for pump wavelengths between 1100 nm and 1200 nm, consistent with the spectral region where Δφ ≈ π. The residual imperfections—phase difference below π, unequal SH intensities from the two regions, and diffraction from the micrometer‑scale gap—explain the observed deviations from a perfect HG₀₁ beam.

The authors emphasize that the resonant‑phase strategy is fundamentally scalable: by arranging more than two phase domains, one could generate higher‑order Hermite‑Gaussian, Laguerre‑Gaussian (carrying orbital angular momentum), or even arbitrary holographic wavefronts in the nonlinear signal. Moreover, the same principle can be transferred to other nonlinear processes such as sum‑frequency, difference‑frequency, or third‑harmonic generation, provided the resonances are engineered at the desired output wavelength. Active tuning could be introduced via electro‑optic modulation of the TFLN refractive index, enabling dynamic control of the phase contrast and thus of the generated beam shape.

In summary, this paper demonstrates that thin‑film lithium‑niobate metasurfaces can provide wavelength‑selective resonant phase control of second‑harmonic generation, allowing simultaneous frequency conversion and spatial mode shaping in a single ultrathin element. The work opens a pathway toward compact, multifunctional nonlinear photonic components such as wavelength‑dependent holograms, beam steerers, and on‑chip nonlinear imaging elements, while highlighting the practical advantages of TFLN (low loss, high χ^(2), broadband transparency) and the feasibility of large‑scale, mask‑based fabrication. Future directions include multi‑layer metasurfaces for full 2‑D phase engineering, integration with active tuning mechanisms, and extension to a broader family of nonlinear optical interactions.
