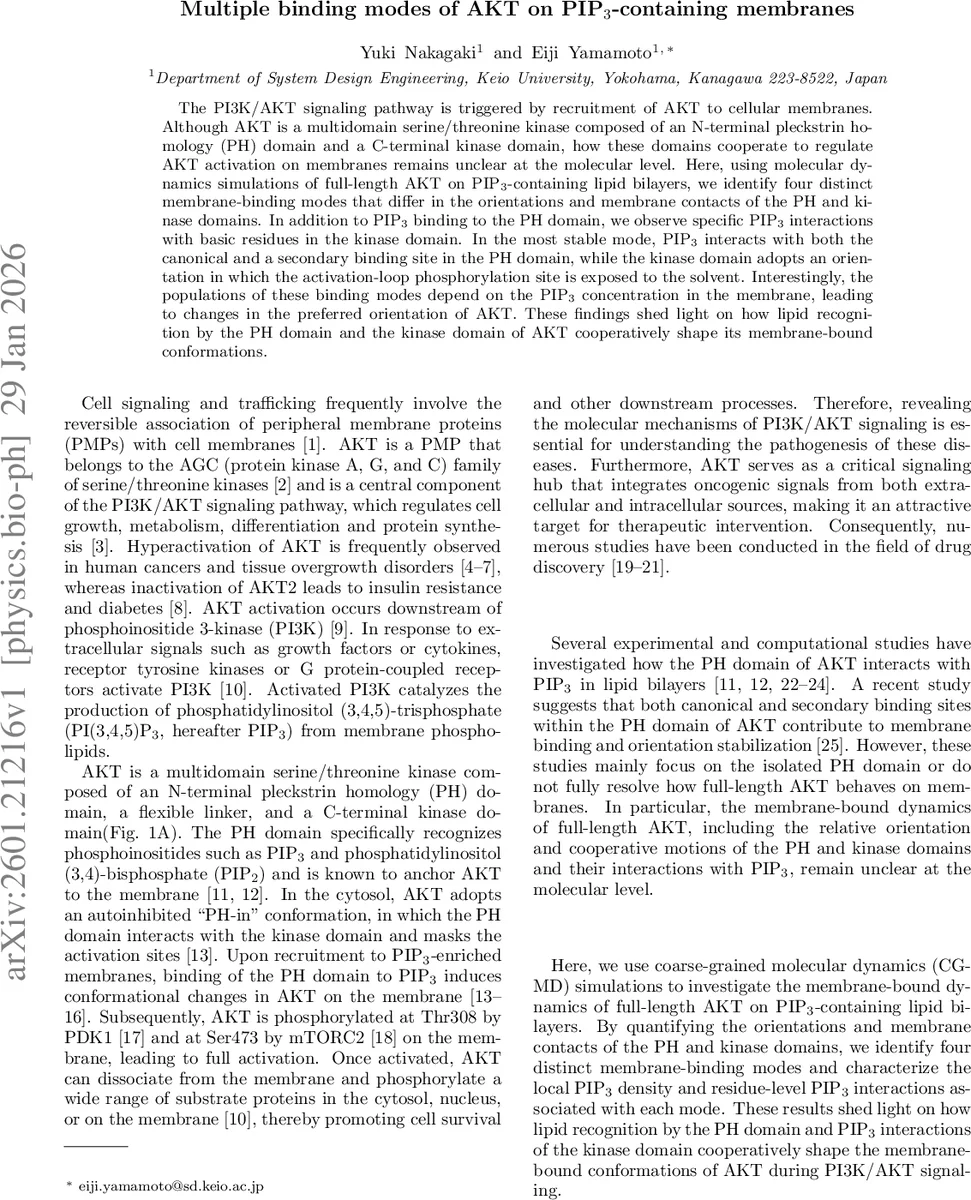

Multiple binding modes of AKT on PIP$_3$-containing membranes

The PI3K/AKT signaling pathway is triggered by recruitment of AKT to cellular membranes. Although AKT is a multidomain serine/threonine kinase composed of an N-terminal pleckstrin homology (PH) domain and a C-terminal kinase domain, how these domains cooperate to regulate AKT activation on membranes remains unclear at the molecular level. Here, using molecular dynamics simulations of full-length AKT on PIP$_3$-containing lipid bilayers, we identify four distinct membrane-binding modes that differ in the orientations and membrane contacts of the PH and kinase domains. In addition to PIP$_3$ binding to the PH domain, we observe specific PIP$_3$ interactions with basic residues in the kinase domain. In the most stable mode, PIP$_3$ interacts with both the canonical and a secondary binding site in the PH domain, while the kinase domain adopts an orientation in which the activation-loop phosphorylation site is exposed to the solvent. Interestingly, the populations of these binding modes depend on the PIP$_3$ concentration in the membrane, leading to changes in the preferred orientation of AKT. These findings shed light on how lipid recognition by the PH domain and the kinase domain of AKT cooperatively shape its membrane-bound conformations.

💡 Research Summary

This study investigates how the full‑length serine/threonine kinase AKT engages phosphatidylinositol‑(3,4,5)-trisphosphate (PIP₃)‑containing membranes, using extensive coarse‑grained molecular dynamics (CG‑MD) simulations. Ten independent 50‑µs trajectories were initiated with AKT positioned ~15 nm above a lipid bilayer containing varying amounts of PIP₃. Within ~2 µs, the N‑terminal pleckstrin homology (PH) domain makes the first stable contact with the membrane, confirming the PH domain as the primary membrane‑anchoring element.

By tracking the center‑of‑mass (COM) distances of the PH and kinase domains from the bilayer and measuring two orientation angles (θ for the PH domain, ϕ for the kinase domain), the authors constructed two‑dimensional probability density maps. Principal component analysis (PCA) followed by DBSCAN clustering identified four distinct membrane‑binding modes, designated Cluster I–IV, which together account for >88 % of all membrane‑bound conformations (Cluster I = 67 %, II = 11 %, III = 7 %, IV = 3 %).

Cluster I (most populated, most stable) – The PH domain stands upright (θ ≈ 45°) with its C‑lobe contacting the bilayer while the N‑lobe points away. The kinase domain is oriented nearly perpendicular to the membrane (ϕ ≈ 90°). PIP₃ binds simultaneously to the canonical site (K14, R15, K20, R23, R25, K39) and a secondary site (K64, R67, R86) on the PH domain, creating a high‑density lipid interaction surface. A positively charged patch on the C‑lobe of the kinase domain (e.g., R367, R370) also contacts PIP₃, albeit more diffusely. Importantly, the activation‑loop residues Thr308 and Ser473 are solvent‑exposed, positioning them optimally for phosphorylation by upstream kinases PDK1 and mTORC2.

Cluster II – The PH domain is slightly tilted (θ ≈ 30–45°) and the kinase domain leans toward the membrane, preserving strong PIP₃ contacts at both canonical and secondary PH sites. The overall geometry is similar to Cluster I but with a modestly different inter‑domain orientation.

Cluster III – The PH domain lies parallel to the membrane with its binding surface facing downward. In this orientation, a different PH residue (R76) engages PIP₃, while both N‑ and C‑lobes of the kinase domain are close to the bilayer. Direct PIP₃ contacts with the kinase domain remain weak and distributed over a positively charged surface.

Cluster IV – The PH domain’s binding surface faces upward, resulting in unstable PH‑PIP₃ interactions. Consequently, the kinase domain’s positively charged surface becomes the dominant PIP₃‑binding region, though contacts are still relatively weak.

To probe the effect of lipid composition, the authors repeated simulations with reduced PIP₃ fractions. Lower PIP₃ concentrations shift the population toward Clusters III and IV, whereas higher PIP₃ levels favor Clusters I and II. This demonstrates that competition for a limited pool of PIP₃ molecules can modulate AKT’s membrane orientation and, by extension, its accessibility to activating kinases.

The study provides several key insights:

1. Multimodal membrane binding – AKT does not adopt a single static pose on the membrane; instead, it samples four distinct conformations that differ in PH‑kinase domain orientation and lipid contacts.
2. Cooperative lipid recognition – While the PH domain supplies high‑affinity, well‑defined canonical and secondary PIP₃ binding sites, the kinase domain contributes a broader, electrostatically driven PIP₃‑binding surface that becomes more relevant at low PIP₃ densities.
3. Activation‑loop exposure – The most stable binding mode (Cluster I) aligns the activation loop (Thr308, Ser473) toward the solvent, rationalizing how membrane recruitment facilitates rapid phosphorylation by PDK1 and mTORC2.
4. Implications for disease and drug design – Since AKT hyper‑activation underlies many cancers and metabolic disorders, understanding the structural determinants of its membrane engagement opens avenues for designing inhibitors that simultaneously disrupt PH‑domain PIP₃ binding and kinase‑domain lipid interactions, potentially achieving greater specificity than agents targeting a single site.

Overall, this work advances the molecular picture of AKT membrane recruitment, highlighting the importance of both domain‑specific and domain‑cross‑talk lipid interactions and establishing a framework for future experimental and therapeutic investigations.
