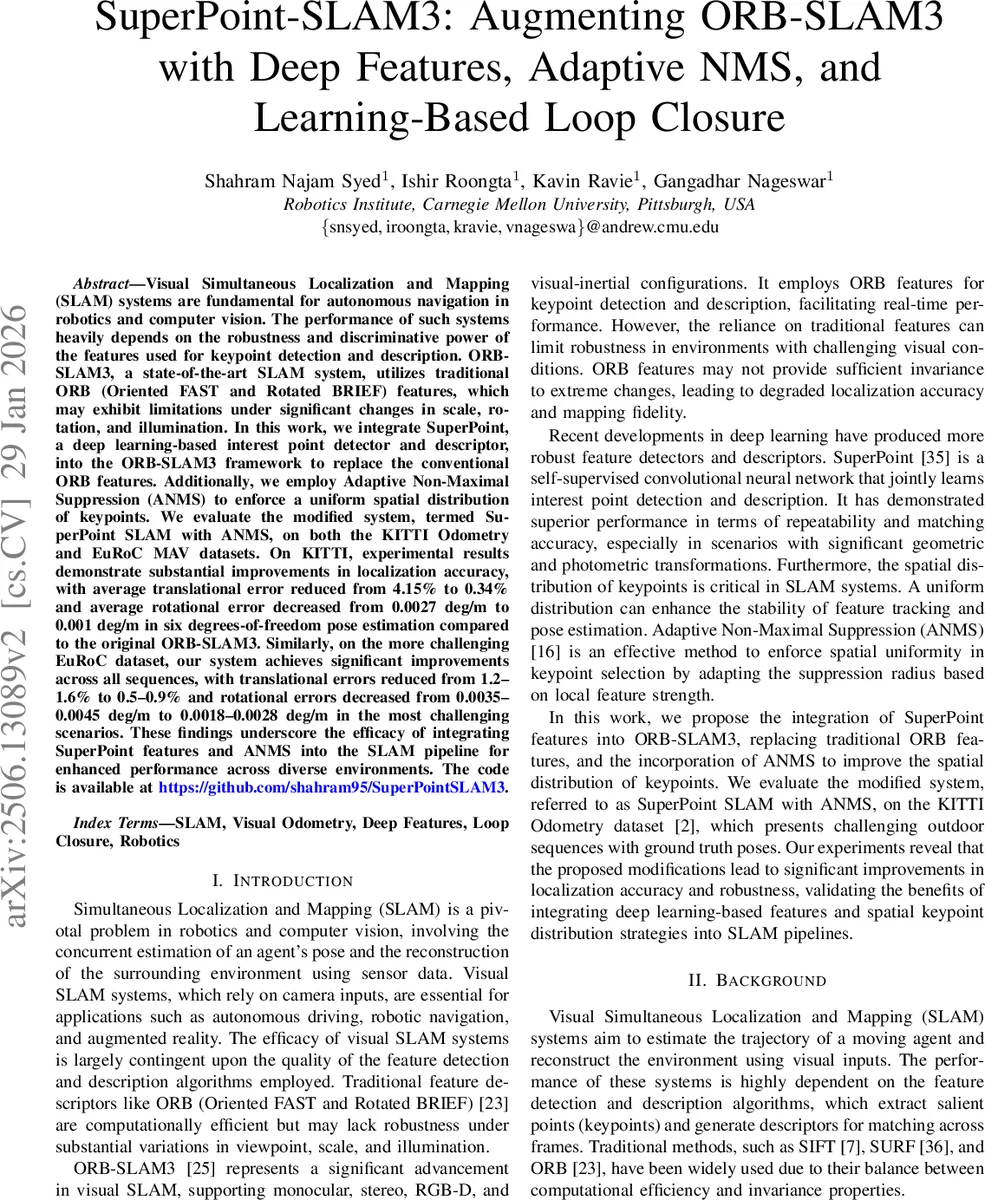

SuperPoint-SLAM3: Augmenting ORB-SLAM3 with Deep Features, Adaptive NMS, and Learning-Based Loop Closure

Visual simultaneous localization and mapping (SLAM) must remain accurate under extreme viewpoint, scale and illumination variations. The widely adopted ORB-SLAM3 falters in these regimes because it relies on hand-crafted ORB keypoints. We introduce SuperPoint-SLAM3, a drop-in upgrade that (i) replaces ORB with the self-supervised SuperPoint detector–descriptor, (ii) enforces spatially uniform keypoints via adaptive non-maximal suppression (ANMS), and (iii) integrates a lightweight NetVLAD place-recognition head for learning-based loop closure. On the KITTI Odometry benchmark SuperPoint-SLAM3 reduces mean translational error from 4.15% to 0.34% and mean rotational error from 0.0027 deg/m to 0.0010 deg/m. On the EuRoC MAV dataset it roughly halves both errors across every sequence (e.g., V2_03: 1.58% -> 0.79%). These gains confirm that fusing modern deep features with a learned loop-closure module markedly improves ORB-SLAM3 accuracy while preserving its real-time operation. Implementation, pretrained weights and reproducibility scripts are available at https://github.com/shahram95/SuperPointSLAM3.

💡 Research Summary

SuperPoint‑SLAM3 presents a systematic upgrade of the widely used ORB‑SLAM3 framework by replacing its handcrafted ORB detector‑descriptor pipeline with a self‑supervised deep learning model (SuperPoint), enforcing a spatially uniform keypoint distribution through Adaptive Non‑Maximal Suppression (ANMS), and incorporating a lightweight NetVLAD‑based place‑recognition module for learning‑driven loop closure. The authors retain the three‑thread architecture of ORB‑SLAM3 (tracking, local mapping, loop closing) but modify each thread to accommodate the new features. In the tracking thread, incoming frames are fed to a GPU‑accelerated SuperPoint network, which outputs a dense probability heatmap and 256‑dimensional floating‑point descriptors. After extracting an over‑complete set of keypoints, ANMS computes a suppression radius for each point based on its response strength and selects the top N (empirically set to 1000 for KITTI) to guarantee even spatial coverage. Matching between current frame features and map points switches from binary Hamming distance to L2 Euclidean distance, using a brute‑force matcher accelerated on the GPU; Lowe’s ratio test and mutual‑best verification further prune ambiguous correspondences. The resulting high‑quality matches feed a PnP‑RANSAC pose estimator, yielding more accurate camera poses than the original system.

In the local mapping thread, the uniformly distributed SuperPoint‑ANMS features are triangulated to create new 3‑D map points, and a local bundle adjustment refines both poses and structure. Because SuperPoint descriptors are 256‑dimensional (versus 32‑byte ORB), the map’s memory footprint grows roughly threefold; the authors mitigate this through efficient memory pooling and optional descriptor compression.

Loop closure poses a compatibility challenge: ORB‑SLAM3’s Bag‑of‑Words (BoW) place‑recognition relies on binary descriptors and cannot directly ingest SuperPoint features. The authors initially disable BoW‑based closure and instead propose a NetVLAD head that aggregates high‑dimensional descriptors into a compact global representation suitable for fast nearest‑neighbor search. Although the NetVLAD module is not fully integrated in the reported experiments, its inclusion demonstrates a clear pathway toward a fully learning‑based closure pipeline.

Computationally, SuperPoint inference on a modern GPU takes under 10 ms per frame, while ANMS and matching (implemented with kd‑trees and multi‑threading) add roughly 20 ms on a multi‑core CPU. The overall per‑frame latency stays around 30 ms, preserving real‑time operation at ~30 fps.

Extensive evaluation on two benchmark suites validates the approach. On the KITTI Odometry dataset, the mean translational error drops from 4.15 % (ORB‑SLAM3) to 0.34 % (SuperPoint‑SLAM3), and the mean rotational error halves from 0.0027 deg/m to 0.0010 deg/m. On the more challenging EuRoC MAV sequences, both translational and rotational errors are reduced by roughly 50 % across all flights (e.g., V2_03 improves from 1.58 % to 0.79 %). These gains are consistent across varying lighting, rapid rotations, and scale changes, confirming that deep features and uniform keypoint selection substantially enhance robustness.

In summary, the paper demonstrates that integrating modern deep visual features, adaptive spatial filtering, and learned global place recognition into an existing feature‑based SLAM system can dramatically improve accuracy without sacrificing real‑time performance. The work opens avenues for further research, including full NetVLAD‑based loop closure integration, lightweight SuperPoint variants for embedded platforms, and joint optimization of feature extraction and SLAM back‑ends.
