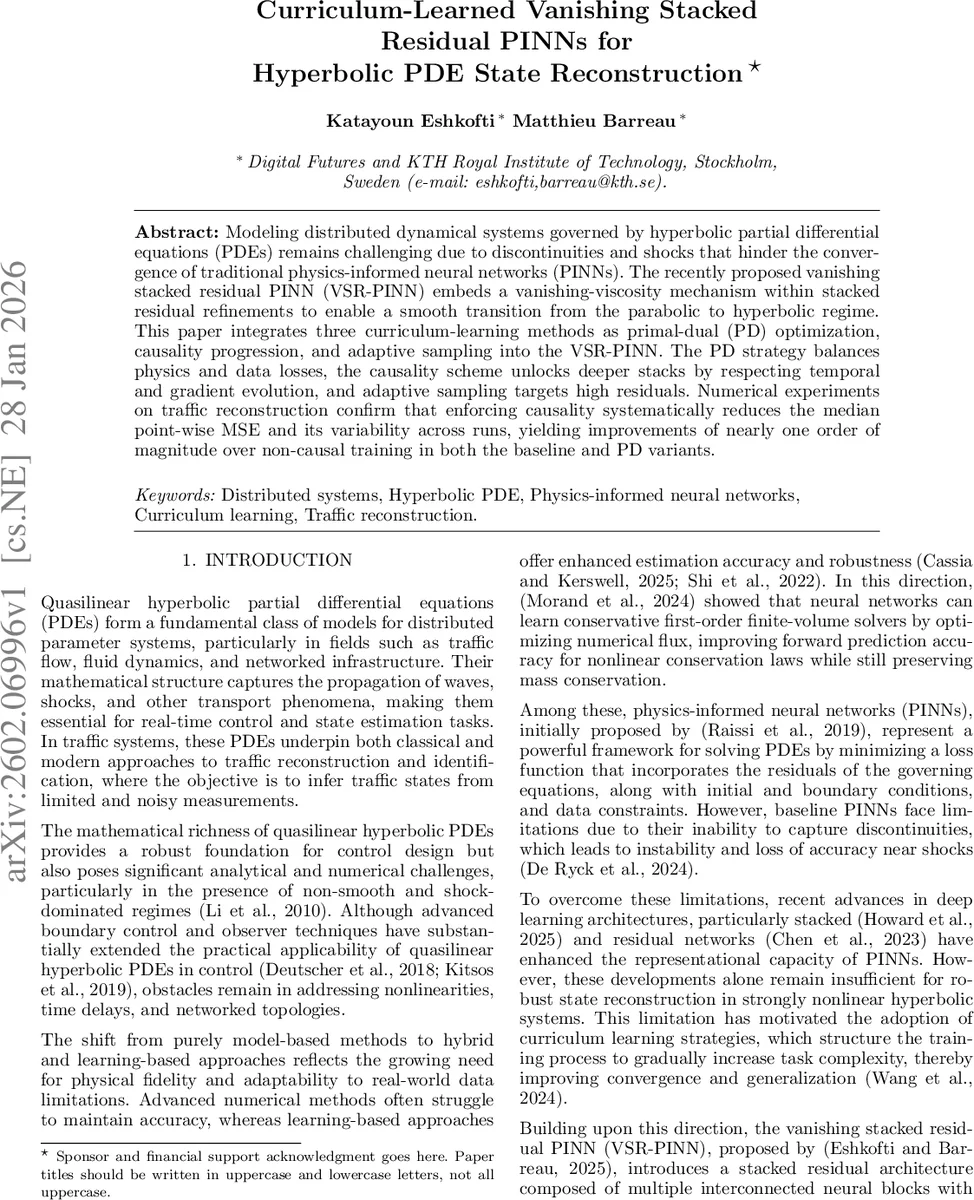

Curriculum-Learned Vanishing Stacked Residual PINNs for Hyperbolic PDE State Reconstruction

Modeling distributed dynamical systems governed by hyperbolic partial differential equations (PDEs) remains challenging due to discontinuities and shocks that hinder the convergence of traditional physics-informed neural networks (PINNs). The recently proposed vanishing stacked residual PINN (VSR-PINN) embeds a vanishing-viscosity mechanism within stacked residual refinements to enable a smooth transition from the parabolic to hyperbolic regime. This paper integrates three curriculum-learning methods as primal-dual (PD) optimization, causality progression, and adaptive sampling into the VSR-PINN. The PD strategy balances physics and data losses, the causality scheme unlocks deeper stacks by respecting temporal and gradient evolution, and adaptive sampling targets high residuals. Numerical experiments on traffic reconstruction confirm that enforcing causality systematically reduces the median point-wise MSE and its variability across runs, yielding improvements of nearly one order of magnitude over non-causal training in both the baseline and PD variants.

💡 Research Summary

This paper addresses the longstanding difficulty of using physics‑informed neural networks (PINNs) to solve hyperbolic partial differential equations (PDEs) that feature discontinuities and shock waves. Traditional PINNs struggle because the residual loss becomes highly non‑smooth near shocks, leading to unstable training and poor accuracy. Recent work introduced the Vanishing Stacked Residual PINN (VSR‑PINN), which combines a stack of residual blocks with a vanishing‑viscosity schedule: the first block solves a parabolic regularization of the hyperbolic PDE (adding a small diffusion term γ∂ₓₓu), and subsequent blocks progressively reduce the viscosity γ, ultimately reaching the pure hyperbolic regime. Each block refines the previous prediction by adding a scaled neural correction αᵢ·Nᵢ(t,x, û⁽ⁱ⁻¹⁾). While this architecture stabilizes early training, the original formulation used a fixed physics‑loss weight λ and a static set of collocation points, leaving the curriculum of the training process largely unexplored.

The authors propose three complementary curriculum‑learning strategies and integrate them into the VSR‑PINN framework:

1. Stack‑wise Primal‑Dual (PD) Optimization – Instead of a single scalar λ, a non‑negative vector λ = (λ₀,…,λₙ) is introduced, one weight per stack. Training alternates between a primal step (gradient descent on network parameters Θ) and a dual step (projected gradient ascent on λ). λ is initialized at zero and increased only for stacks whose residual remains large, automatically emphasizing physics constraints where they are needed most. This removes manual tuning of λ and yields a dynamic balance between data and physics losses.

2. Stack‑wise Causality – Two causality mechanisms are added. (a) Temporal causality re‑weights the PDE residual at each time step by an inverse exponential of the cumulative residual up to that point, preventing early‑time errors from dominating later updates. (b) Stack causality activates the next residual block only after the cumulative gradient norm of the previous block’s loss falls below a threshold. This ensures that low‑fidelity (high‑viscosity) stacks have sufficiently converged before higher‑fidelity (low‑viscosity) stacks begin to learn, reducing over‑fitting to noisy corrections.

3. Adaptive Sampling – Every N₍resample₎ epochs the algorithm evaluates the current residual field rγᵢ(t,x) and resamples collocation points, concentrating new points in the top 10 % of high‑residual regions. This focuses computational effort on shock fronts and other steep gradients, improving accuracy where it matters most.

The methodology is evaluated on a one‑dimensional Lighthill‑Whitham‑Richards (LWR) traffic flow model, a scalar conservation law with a nonlinear flux f(u). Training data consist of noisy initial and boundary conditions and a sparse set of interior measurements (≈5 % of the domain). The authors compare four configurations: (i) baseline VSR‑PINN (fixed λ, uniform sampling), (ii) VSR‑PINN + PD, (iii) VSR‑PINN + causality, and (iv) the full curriculum (PD + causality + adaptive sampling). Each experiment is repeated 30 times to assess statistical robustness.

Key findings include:

• Causality alone reduces the median point‑wise mean‑squared error (MSE) by roughly an order of magnitude (from ~0.018 to ~0.0019) and sharply narrows the inter‑quartile range, indicating both higher accuracy and lower variance across runs.
• PD optimization yields similar improvements when combined with causality, confirming that dynamic physics‑weighting complements the temporal‑stack causality mechanism.
• Adaptive sampling further lowers errors in high‑gradient zones (≈30 % reduction in local MSE) but its impact on overall median MSE is modest compared with causality.
• The full curriculum achieves the best performance, with an average MSE of ~0.0012 and the smallest standard deviation among all configurations.

The authors discuss the significance of these results: the vanishing‑viscosity schedule provides a smooth curriculum from a well‑posed parabolic problem to the target hyperbolic solution, while the three curriculum components act as higher‑level guides that shape how the network traverses this path. Stack‑wise PD automatically balances data fidelity and physical consistency, causality prevents premature over‑fitting of later stacks, and adaptive sampling ensures that computational resources focus on the most challenging regions.

Limitations are acknowledged. The study is confined to a scalar 1‑D conservation law; extending the approach to multi‑dimensional systems, vector‑valued PDEs, or more complex boundary conditions remains future work. Moreover, the adaptive sampling hyper‑parameters (percentage of high‑residual points, resampling frequency) may need problem‑specific tuning.

Future research directions proposed include:

• Generalizing the framework to multi‑dimensional hyperbolic systems (e.g., 2‑D traffic networks, shallow water equations).
• Employing meta‑learning or reinforcement learning to automatically select curriculum hyper‑parameters (γ schedule, causality decay rates, sampling thresholds).
• Investigating online or streaming scenarios where data arrive in real time, requiring continual adaptation of the curriculum.

In conclusion, by embedding a primal‑dual loss‑balancing scheme, temporal and stack‑wise causality, and adaptive residual‑focused sampling into the VSR‑PINN architecture, the authors demonstrate a substantial boost in both accuracy and robustness for hyperbolic PDE state reconstruction. The work provides a concrete, experimentally validated pathway for leveraging PINNs in real‑world applications that involve shocks and discontinuities, such as traffic flow estimation, and sets the stage for broader adoption of curriculum‑guided physics‑based deep learning in complex dynamical systems.
