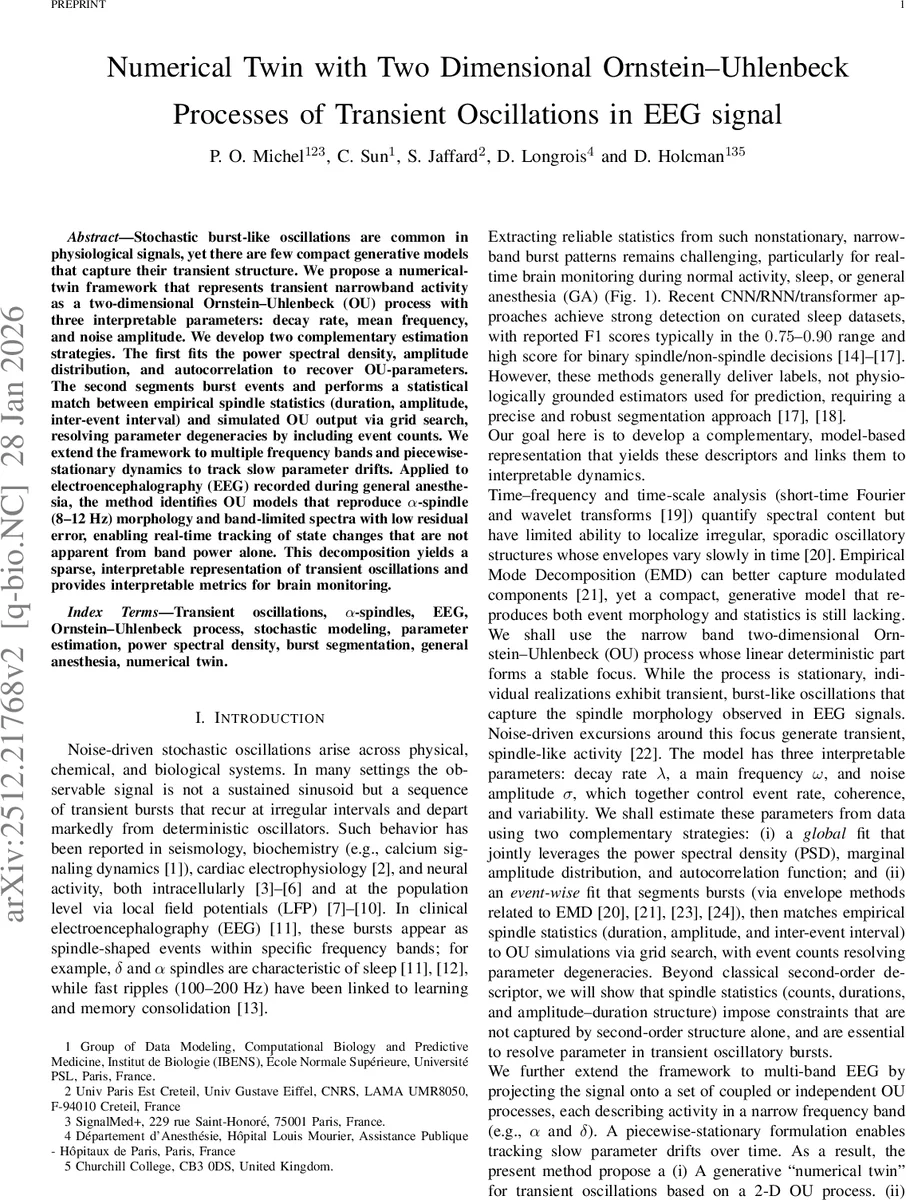

Numerical Twin with Two Dimensional Ornstein--Uhlenbeck Processes of Transient Oscillations in EEG signal

Stochastic burst-like oscillations are common in physiological signals, yet there are few compact generative models that capture their transient structure. We propose a numerical-twin framework that represents transient narrowband activity as a two-dimensional Ornstein-Uhlenbeck (OU) process with three interpretable parameters: decay rate, mean frequency, and noise amplitude. We develop two complementary estimation strategies. The first fits the power spectral density, amplitude distribution, and autocorrelation to recover OU-parameters. The second segments burst events and performs a statistical match between empirical spindle statistics (duration, amplitude, inter-event interval) and simulated OU output via grid search, resolving parameter degeneracies by including event counts. We extend the framework to multiple frequency bands and piecewise-stationary dynamics to track slow parameter drifts. Applied to electroencephalography (EEG) recorded during general anesthesia, the method identifies OU models that reproduce alpha-spindle (8-12 Hz) morphology and band-limited spectra with low residual error, enabling real-time tracking of state changes that are not apparent from band power alone. This decomposition yields a sparse, interpretable representation of transient oscillations and provides interpretable metrics for brain monitoring.

💡 Research Summary

The manuscript introduces a compact, generative framework for modeling transient, narrow‑band oscillations such as alpha‑spindles observed in electroencephalography (EEG). The core of the approach is a two‑dimensional Ornstein‑Uhlenbeck (OU) stochastic differential equation: (\dot{s}=As+\sqrt{2\sigma},\dot{w}), where (s=(x,y)^{\top}), (A=\begin{bmatrix}-\lambda & \omega\ -\omega & -\lambda\end{bmatrix}), (\lambda>0) is the decay rate, (\omega) the mean angular frequency, and (\sigma) the noise amplitude. Although the OU process is stationary in the statistical sense, individual realizations exhibit burst‑like, waxing‑waning oscillations that closely resemble physiological spindles.

Two complementary parameter‑estimation strategies are presented. The first, a “global fit,” simultaneously leverages three second‑order descriptors of the data: (i) the power spectral density (PSD), which for the OU process takes a Lorentzian form with peak at (\omega/2\pi) and bandwidth (\lambda); (ii) the marginal amplitude distribution, which is Gaussian with variance (\sigma/\lambda); and (iii) the autocorrelation function (C_{xx}(\tau)=\frac{\sigma}{\lambda}e^{-\lambda|\tau|}\cos(\omega\tau)). By fitting the empirical PSD, histogram, and autocorrelation, the authors obtain initial estimates of (\lambda), (\omega), and (\sigma).

The second, an “event‑wise fit,” addresses the fact that second‑order statistics alone cannot uniquely determine all three parameters, especially when (\sigma) is small. The authors first extract spindle events using an envelope‑based segmentation pipeline: Empirical Mode Decomposition provides a smooth amplitude envelope, LOESS smoothing yields upper and lower envelopes, and a double‑threshold rule (based on the signal’s standard deviation) isolates intervals bounded by local minima and containing a local maximum. For each spindle they compute duration, peak amplitude, and inter‑event interval. These empirical statistics are then compared to those generated by OU simulations across a dense grid of ((\lambda,\omega,\sigma)) values. The grid search minimizes a loss that includes both the discrepancy of the three statistics and the difference in event counts, thereby breaking parameter degeneracies.

The framework is extended to multi‑band EEG by representing each narrow band (e.g., δ, α) with an independent OU component, and by allowing the parameters to evolve piecewise‑stationarily. A sliding‑window implementation tracks slow drifts in (\lambda,\omega,\sigma) over time, providing a real‑time “numerical twin” of the ongoing brain activity.

Application to EEG recorded during general anesthesia demonstrates that the fitted OU models reproduce the morphology of alpha‑spindles, match the band‑limited PSD with residual errors well below 1 dB, and capture the empirical distributions of spindle duration, amplitude, and inter‑spindle interval. Importantly, the parameter trajectories reveal state transitions (e.g., deepening versus lightening of anesthesia) that are invisible to conventional band‑power measures.

The authors argue that their approach offers several advantages over black‑box deep‑learning classifiers: (1) it yields physiologically interpretable parameters that can be monitored continuously; (2) it captures transient dynamics that are lost in purely spectral analyses; and (3) it is computationally lightweight enough for bedside deployment. Limitations include the linear nature of the OU model, which may not fully describe highly nonlinear events such as seizures, and the assumption of Gaussian noise, which may be violated in the presence of heavy‑tailed artifacts. Future work is suggested to incorporate nonlinear extensions, coupled OU networks, and more sophisticated aperiodic background models to broaden applicability. Overall, the paper provides a rigorous, analytically tractable, and practically useful method for real‑time monitoring of transient oscillatory brain activity.
