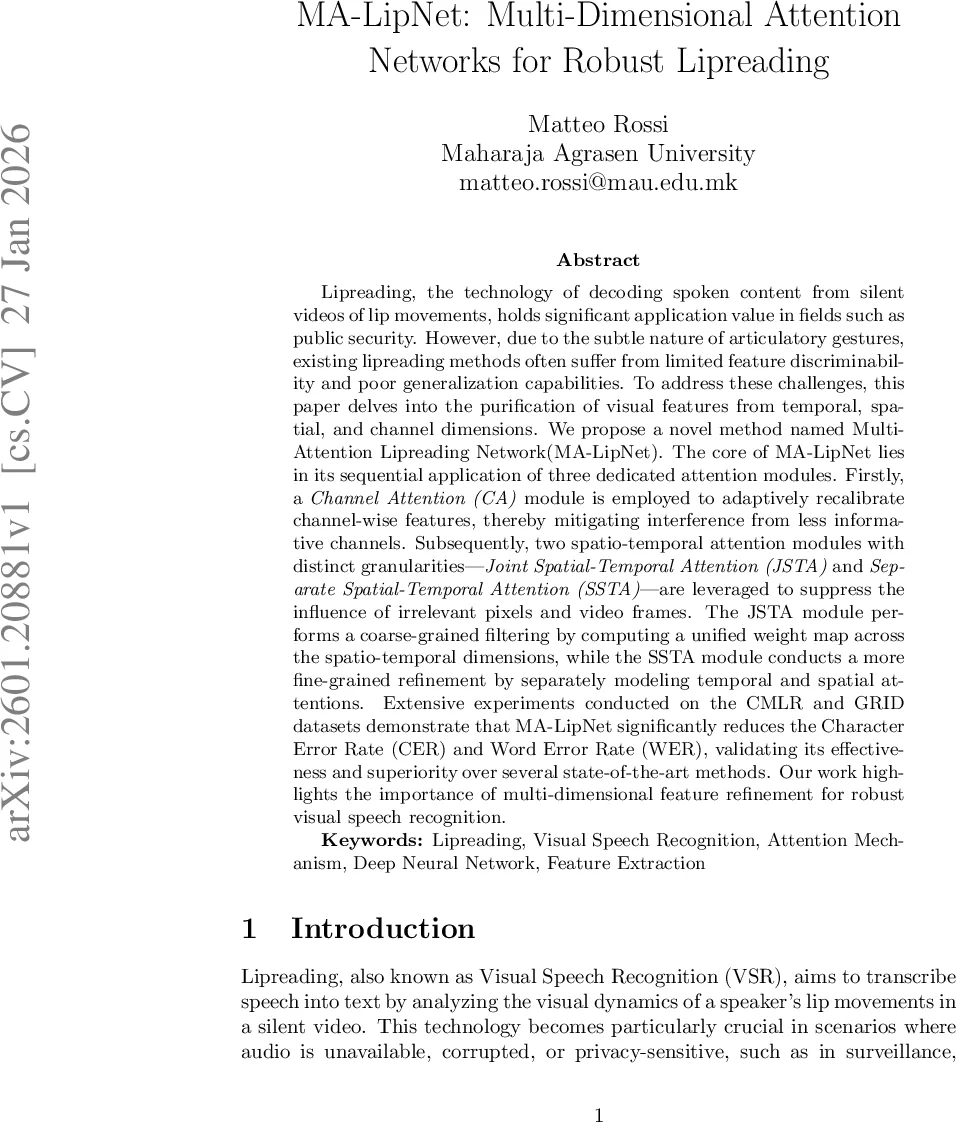

MA-LipNet: Multi-Dimensional Attention Networks for Robust Lipreading

Lipreading, the technology of decoding spoken content from silent videos of lip movements, holds significant application value in fields such as public security. However, due to the subtle nature of articulatory gestures, existing lipreading methods often suffer from limited feature discriminability and poor generalization capabilities. To address these challenges, this paper delves into the purification of visual features from temporal, spatial, and channel dimensions. We propose a novel method named Multi-Attention Lipreading Network(MA-LipNet). The core of MA-LipNet lies in its sequential application of three dedicated attention modules. Firstly, a \textit{Channel Attention (CA)} module is employed to adaptively recalibrate channel-wise features, thereby mitigating interference from less informative channels. Subsequently, two spatio-temporal attention modules with distinct granularities-\textit{Joint Spatial-Temporal Attention (JSTA)} and \textit{Separate Spatial-Temporal Attention (SSTA)}-are leveraged to suppress the influence of irrelevant pixels and video frames. The JSTA module performs a coarse-grained filtering by computing a unified weight map across the spatio-temporal dimensions, while the SSTA module conducts a more fine-grained refinement by separately modeling temporal and spatial attentions. Extensive experiments conducted on the CMLR and GRID datasets demonstrate that MA-LipNet significantly reduces the Character Error Rate (CER) and Word Error Rate (WER), validating its effectiveness and superiority over several state-of-the-art methods. Our work highlights the importance of multi-dimensional feature refinement for robust visual speech recognition.

💡 Research Summary

The paper introduces MA‑LipNet, a novel lip‑reading framework that tackles the pervasive issue of redundant and noisy visual features by applying attention mechanisms across three dimensions: channel, spatial, and temporal. Traditional lip‑reading pipelines typically consist of a visual front‑end (often a 3‑D CNN) followed by a sequence decoder (RNN, Transformer, or CTC‑based models). However, these approaches treat the extracted feature maps as a whole, ignoring that many channels, pixels, or frames may carry little or even misleading information for speech content. MA‑LipNet addresses this by inserting three dedicated attention modules directly into the visual encoding stage, before any recurrent or transformer decoding takes place.

1. Channel Attention (CA) – Inspired by the Squeeze‑and‑Excitation (SE) block, CA first aggregates global spatio‑temporal information using 3‑D max‑pooling and average‑pooling, producing two channel‑wise descriptors. These descriptors are passed through a shared two‑layer MLP (implemented as 1×1×1 convolutions) that first reduces the channel dimension by a factor of 16 and then restores it. A sigmoid activation yields per‑channel weights (A_C) that are multiplied element‑wise with the original feature map, effectively amplifying channels that encode lip‑relevant patterns while suppressing those that respond to background textures or irrelevant cues.

2. Joint Spatial‑Temporal Attention (JSTA) – After channel recalibration, JSTA collapses the channel dimension (via max‑ and average‑pooling) to obtain a two‑channel spatio‑temporal descriptor of shape B×1×T′×H′×W′. A single 1×1×1 3‑D convolution fuses these descriptors into a unified attention map A_J, which is then sigmoid‑scaled. This map is applied uniformly across all channels, performing a coarse‑grained filtering that down‑weights entire regions of the video that are unlikely to contain speech (e.g., background, non‑articulatory frames).

3. Separate Spatial‑Temporal Attention (SSTA) – To achieve fine‑grained refinement, SSTA splits the JSTA‑processed tensor into two parallel branches. The spatial branch reshapes the tensor to (B·T′)×C×H′×W′ and applies N (e.g., 3) sub‑branches, each consisting of a 2‑D convolution (3×3) followed by a sigmoid to generate spatial attention maps A_i^S. The temporal branch reshapes to B×(C·H′·W′)×T′ and uses N sub‑branches of 1‑D convolutions (kernel size 3) to produce temporal attention maps A_i^T. Each sub‑branch’s attended features are reshaped back to a common dimension, L2‑normalized, and summed across all sub‑branches, yielding the final refined feature Y_SSTA. This design enables the model to capture diverse spatio‑temporal contexts, such as subtle lip shape changes across frames, while still suppressing irrelevant pixels.

The refined feature sequence Y_SSTA is flattened across spatial and channel dimensions and fed into a two‑layer bidirectional GRU encoder, which models long‑range temporal dependencies. An additive attention mechanism links the encoder states to a two‑layer unidirectional GRU decoder. At each decoding step, the decoder state and the context vector (a weighted sum of encoder hidden states) are concatenated and passed through a linear layer followed by softmax to predict the next character or word token. The training objective is the negative log‑likelihood of the correct token sequence, optimized with Adam and a scheduled learning rate.

Experimental Setup – The authors evaluate on two benchmark sentence‑level lip‑reading datasets: CMLR (Chinese Mandarin, 102,072 videos from 11 speakers) and GRID (English, 32,823 videos from 34 speakers). Frames are pre‑processed by detecting facial landmarks with Dlib, cropping an 80×160 mouth region, and resizing to 64×128. Training is performed on a single NVIDIA RTX 3070 GPU. Key hyper‑parameters include 60 epochs (CMLR) / 30 epochs (GRID), batch sizes of 8 / 16, learning rates of 2e‑4 / 3e‑4, and N=3 (CMLR) / 4 (GRID) for the SSTA sub‑branches. Beam search with width K=6 is applied during inference.

Results – MA‑LipNet achieves a Character Error Rate (CER) of 21.49 % on CMLR and a Word Error Rate (WER) of 1.09 % on GRID, outperforming prior state‑of‑the‑art methods such as LipNet, LCANet, DualLip, and others. The improvement is especially notable given that the baseline (no attention) records CER 31.51 % and WER 2.69 % on the two datasets respectively.

Ablation Studies – Removing any of the three attention modules degrades performance, confirming their complementary contributions. The channel attention alone reduces CER by ~2.9 %p, JSTA by ~2.7 %p, and SSTA by the largest single gain (~5.4 %p). Combining CA+JSTA, CA+SSTA, or JSTA+SSTA yields intermediate improvements, while the full trio without beam search still outperforms the baseline by a substantial margin (CER 24.90 %, WER 1.56 %). Adding beam search further lowers the error rates to the reported best figures.

Visualization – Saliency maps illustrate that the baseline’s attention is diffuse across the frame, whereas JSTA focuses coarsely on the mouth region, SSTA sharpens this focus, and the complete MA‑LipNet localizes attention precisely on lip pixels while suppressing background. Temporal attention visualizations show that MA‑LipNet assigns low weights to non‑speech frames (e.g., silence at the start/end), confirming its ability to filter out irrelevant temporal segments.

Discussion and Limitations – The proposed multi‑dimensional attention strategy effectively purifies visual features, leading to robust lip‑reading under both Mandarin and English datasets. However, experiments are limited to speaker‑dependent splits; cross‑speaker generalization remains to be validated. The 3‑D CNN backbone is relatively shallow (three layers), which may restrict the capture of complex articulatory dynamics. Future work could explore deeper video backbones (e.g., I3D, SlowFast), speaker‑independent training regimes, and multimodal fusion with audio to further enhance robustness and applicability in real‑world scenarios.

In summary, MA‑LipNet demonstrates that systematic attention across channel, spatial, and temporal dimensions can substantially improve visual speech recognition, setting new performance benchmarks and providing a clear roadmap for next‑generation lip‑reading systems.
