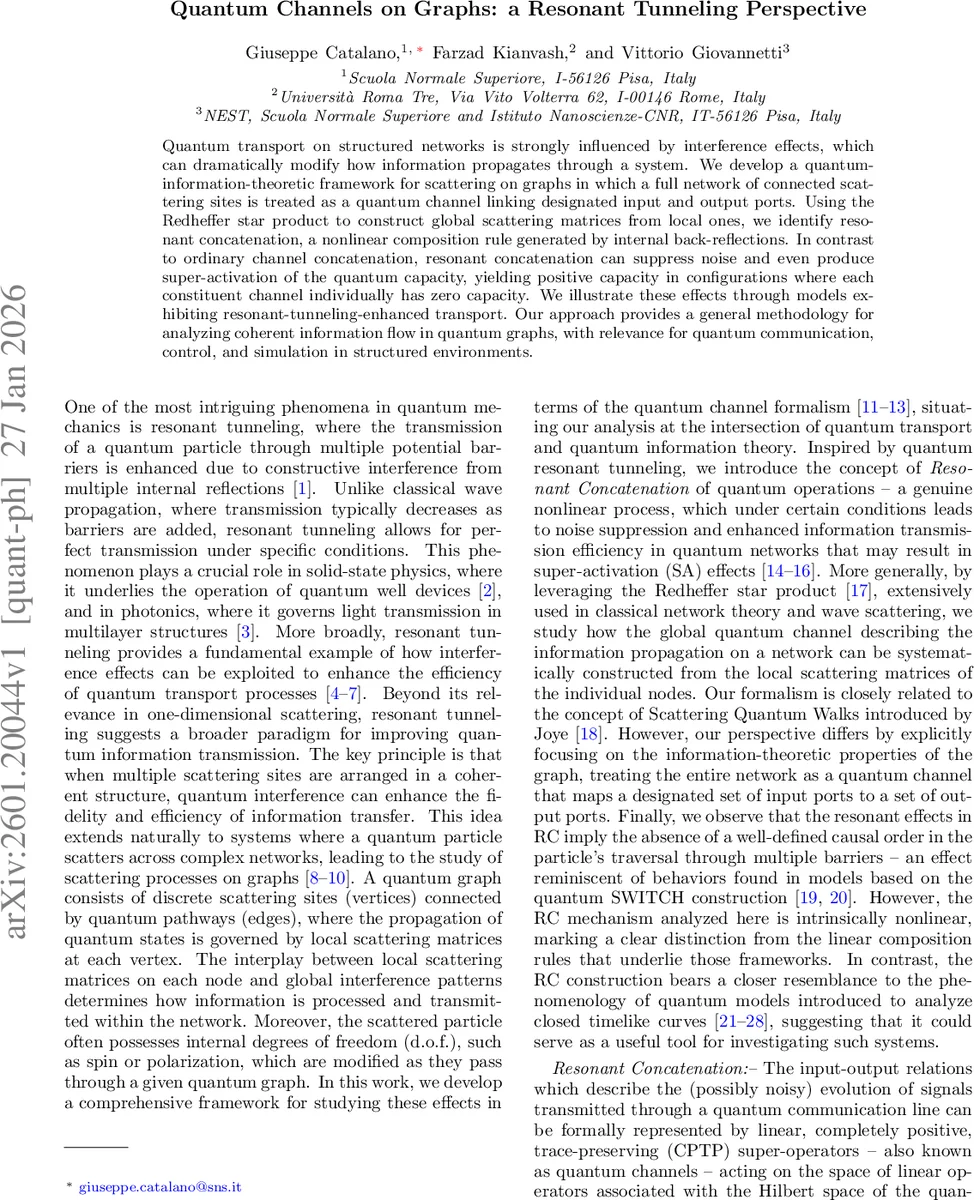

Quantum Channels on Graphs: a Resonant Tunneling Perspective

Quantum transport on structured networks is strongly influenced by interference effects, which can dramatically modify how information propagates through a system. We develop a quantum-information-theoretic framework for scattering on graphs in which a full network of connected scattering sites is treated as a quantum channel linking designated input and output ports. Using the Redheffer star product to construct global scattering matrices from local ones, we identify resonant concatenation, a nonlinear composition rule generated by internal back-reflections. In contrast to ordinary channel concatenation, resonant concatenation can suppress noise and even produce super-activation of the quantum capacity, yielding positive capacity in configurations where each constituent channel individually has zero capacity. We illustrate these effects through models exhibiting resonant-tunneling-enhanced transport. Our approach provides a general methodology for analyzing coherent information flow in quantum graphs, with relevance for quantum communication, control, and simulation in structured environments.

💡 Research Summary

The paper introduces a quantum‑information‑theoretic framework for describing scattering on arbitrary graphs, treating the entire network of connected scattering sites as a single quantum channel that maps designated input ports to output ports. The authors begin by recalling the phenomenon of resonant tunnelling, where constructive interference among multiple internal reflections can lead to perfect transmission through a series of potential barriers—a striking departure from classical wave behaviour. They then formalize the scattering process at each vertex by a unitary scattering matrix (S) of size (2d\times 2d), where (d) is the dimension of the internal degree of freedom (spin, polarization, etc.). The matrix is partitioned into four blocks (S_{11}, S_{12}, S_{21}, S_{22}) describing the amplitudes for transitions between incoming and outgoing channels on either side of the vertex.

To combine local scattering matrices into a global description, the authors employ the Redheffer star product (denoted (★)). This operation accounts for all possible internal back‑reflections by summing an infinite series of multiple‑bounce paths, which mathematically appears as an inverse factor ((I - S^{(A)}{22} S^{(B)}{11})^{-1}). The resulting global matrix (S_{\text{eff}}) contains terms that are nonlinear in the constituent matrices, reflecting the feedback loops created by internal reflections.

Mapping the scattering description to quantum information theory, each scattering matrix defines a completely positive trace‑preserving (CPTP) map (\Phi) acting on the space of operators of the input Hilbert space. Ordinary channel concatenation corresponds to the linear composition (\Phi_2\circ\Phi_1). However, because of the internal feedback captured by the star product, the authors define a new composition rule—Resonant Concatenation (RC)—written (\Phi_2\circ_R\Phi_1). RC is intrinsically nonlinear: the effective channel depends on the interplay of the two local channels and the phase‑dependent feedback term.

The central results concern two remarkable properties of RC:

1. Noise Suppression – By tuning the phases and reflection amplitudes of the constituent scattering sites, the feedback can cause destructive interference of noise‑producing pathways. In the language of quantum channels, the Kraus operator set of the composite channel can be reduced, and the overall channel can become less noisy than either component alone.

2. Super‑Activation of Quantum Capacity – The authors prove that there exist pairs of channels (\Phi_1) and (\Phi_2) each having zero quantum capacity (Q(\Phi_i)=0) (for example, completely depolarising or erasure channels) such that their resonant concatenation satisfies (Q(\Phi_2\circ_R\Phi_1)>0). This phenomenon, called super‑activation, is impossible under ordinary linear concatenation and demonstrates that the internal resonant structure can generate a genuinely new resource for quantum communication.

To illustrate these effects, a concrete model of a one‑dimensional multi‑barrier system is analyzed. Each barrier is described by a 2×2 scattering matrix with reflection coefficient (r) and transmission coefficient (t). When the product of the two reflections and the accumulated phase satisfies the resonant condition (r_1 r_2 e^{i\phi}=1), the effective transmission becomes unity, i.e., perfect resonant tunnelling. In this regime the global channel approaches a unitary channel, achieving maximal coherent information transmission and positive quantum capacity. Conversely, away from resonance the channel behaves like a highly lossy map with zero capacity.

The paper also discusses the relationship between RC and previously studied indefinite‑causal structures such as the quantum SWITCH. While both exhibit a lack of a fixed causal order, the SWITCH relies on a linear control qubit to coherently superpose two possible orders, whereas RC’s indefinite order emerges from nonlinear feedback loops inherent to the scattering network. This distinction suggests that RC could be employed to simulate closed‑timelike‑curve (CTC) dynamics, as the feedback effectively creates a self‑referential evolution.

Finally, the authors consider experimental implementation. They point out that superconducting microwave circuits, multilayer photonic structures, and arrays of quantum dots can realize the required precise control over reflection amplitudes and internal phases. In particular, photonic waveguides with engineered polarization‑dependent reflectors allow for fine tuning of the resonant condition, making laboratory verification of RC feasible.

In conclusion, the work expands the theory of quantum channels on networks by introducing resonant concatenation, a nonlinear composition rule that leverages internal back‑reflections to suppress noise and enable super‑activation of quantum capacity. This provides a new design principle for quantum communication systems, quantum control architectures, and quantum simulators operating in structured, coherent environments.
