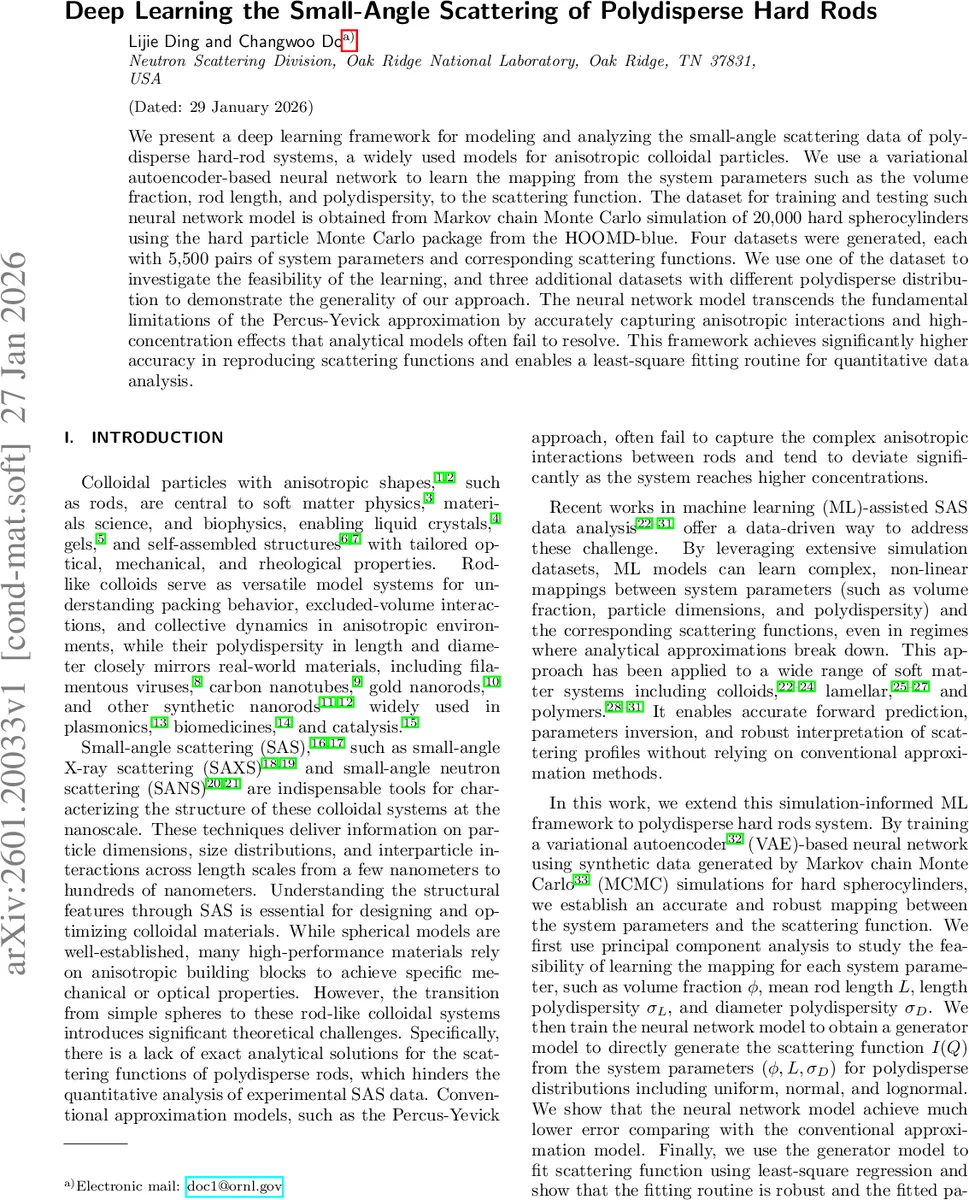

Deep Learning the Small-Angle Scattering of Polydisperse Hard Rods

We present a deep learning framework for modeling and analyzing the small-angle scattering data of polydisperse hard-rod systems, a widely used models for anisotropic colloidal particles. We use a variational autoencoder-based neural network to learn the mapping from the system parameters such as the volume fraction, rod length, and polydispersity, to the scattering function. The dataset for training and testing such neural network model is obtained from Markov chain Monte Carlo simulation of 20,000 hard spherocylinders using the hard particle Monte Carlo package from the HOOMD-blue. Four datasets were generated, each with 5,500 pairs of system parameters and corresponding scattering functions. We use one of the dataset to investigate the feasibility of the learning, and three additional datasets with different polydisperse distribution to demonstrate the generality of our approach. The neural network model transcends the fundamental limitations of the Percus-Yevick approximation by accurately capturing anisotropic interactions and high-concentration effects that analytical models often fail to resolve. This framework achieves significantly higher accuracy in reproducing scattering functions and enables a least-square fitting routine for quantitative data analysis.

💡 Research Summary

This paper introduces a deep‑learning framework for forward modeling and inverse analysis of small‑angle scattering (SAS) from polydisperse hard‑rod (spherocylinder) systems, which serve as prototypical anisotropic colloids. The authors employ a variational auto‑encoder (VAE) combined with a multilayer perceptron (MLP) to learn the highly non‑linear mapping between a set of physical parameters—volume fraction (ϕ), mean rod length (L), and diameter polydispersity (σ_D)—and the scattering intensity I(Q).

Data generation is performed with the hard‑particle Monte‑Carlo (HPMC) engine in HOOMD‑blue. Twenty‑thousand rods are simulated in the canonical (NVT) ensemble with periodic boundaries. Lengths and diameters are drawn independently from three probability distributions (uniform, normal, log‑normal). Four datasets are created, each containing 5 500 parameter–intensity pairs; one dataset includes simultaneous length and diameter polydispersity, while the other three keep length polydispersity zero and vary only the diameter distribution. The volume fraction spans 0.01–0.30 and the mean length 0.5–5 (in reduced units). After a rapid compression stage and equilibration, scattering functions are computed from 100 independent configurations per run.

The neural architecture consists of three blocks. The encoder contains two 1‑D convolutional layers (kernel size 9, stride 2, 30 and 60 channels) that compress the 100‑point I(Q) vector into a 1500‑dimensional feature, which is then projected to a three‑dimensional latent space (mean μ and standard deviation σ). The decoder mirrors the encoder with transposed convolutions to reconstruct I′(Q). The MLP takes the physical parameters as input and outputs latent variables (μ̂, σ̂); together with the decoder it forms a generator that directly produces scattering curves from the parameters. Training proceeds in three stages: 2000 epochs for the VAE alone, 300 epochs for the MLP while freezing the decoder, and a final 300‑epoch fine‑tuning of the full generator. The loss function is the mean‑squared error between log10 I(Q) and log10 I′(Q) averaged over all Q values.

Before training, principal component analysis (PCA) on the log‑intensity data reveals that most variance is captured by the first three singular vectors, confirming that the scattering information resides in a low‑dimensional subspace. Visualizing the projected data shows clear ordering with respect to ϕ, L, and σ_D, whereas length polydispersity σ_L appears random, explaining its exclusion from the final model.

Performance evaluation shows that the VAE‑based reconstruction error is roughly two to three times lower than that of the traditional Percus‑Yevick (PY) approximation, especially in the low‑Q region where inter‑rod correlations dominate. The generator is then used in a least‑squares fitting routine: synthetic “experimental” I(Q) curves are fitted by optimizing (ϕ, L, σ_D) to minimize the squared difference with the generated curves. The recovered parameters have relative errors below 5 %, demonstrating accurate inverse capability. Importantly, the same network architecture successfully generalizes across the three diameter‑distribution types, indicating robustness to changes in the underlying polydispersity model.

The authors discuss several implications. First, the combination of large‑scale Monte‑Carlo data and a VAE enables the capture of anisotropic interactions and high‑concentration effects that are inaccessible to analytic theories. Second, the generator provides a fast, differentiable forward model that can be embedded in optimization or Bayesian inference pipelines for experimental SAS data. Third, the approach is extensible: with modest retraining, it could be applied to other anisotropic shapes such as nanoplates, ellipsoids, or core‑shell rods. Limitations include the current inability to resolve length polydispersity and the reliance on simulated data; future work will focus on incorporating experimental noise, extending the latent space to include σ_L, and exploring physics‑informed neural networks to enforce known sum rules or conservation laws.

In conclusion, the study demonstrates that a VAE‑based deep learning model, trained on high‑fidelity Monte‑Carlo simulations, can surpass traditional analytical approximations in both forward prediction and inverse parameter extraction for polydisperse hard‑rod systems. This work paves the way for data‑driven SAS analysis across a broad class of soft‑matter and nanomaterial systems, offering a powerful tool for researchers seeking quantitative structural insight from scattering experiments.
