Tuning the Electronic Structure of Graphene by Controlling Spatial Confinement

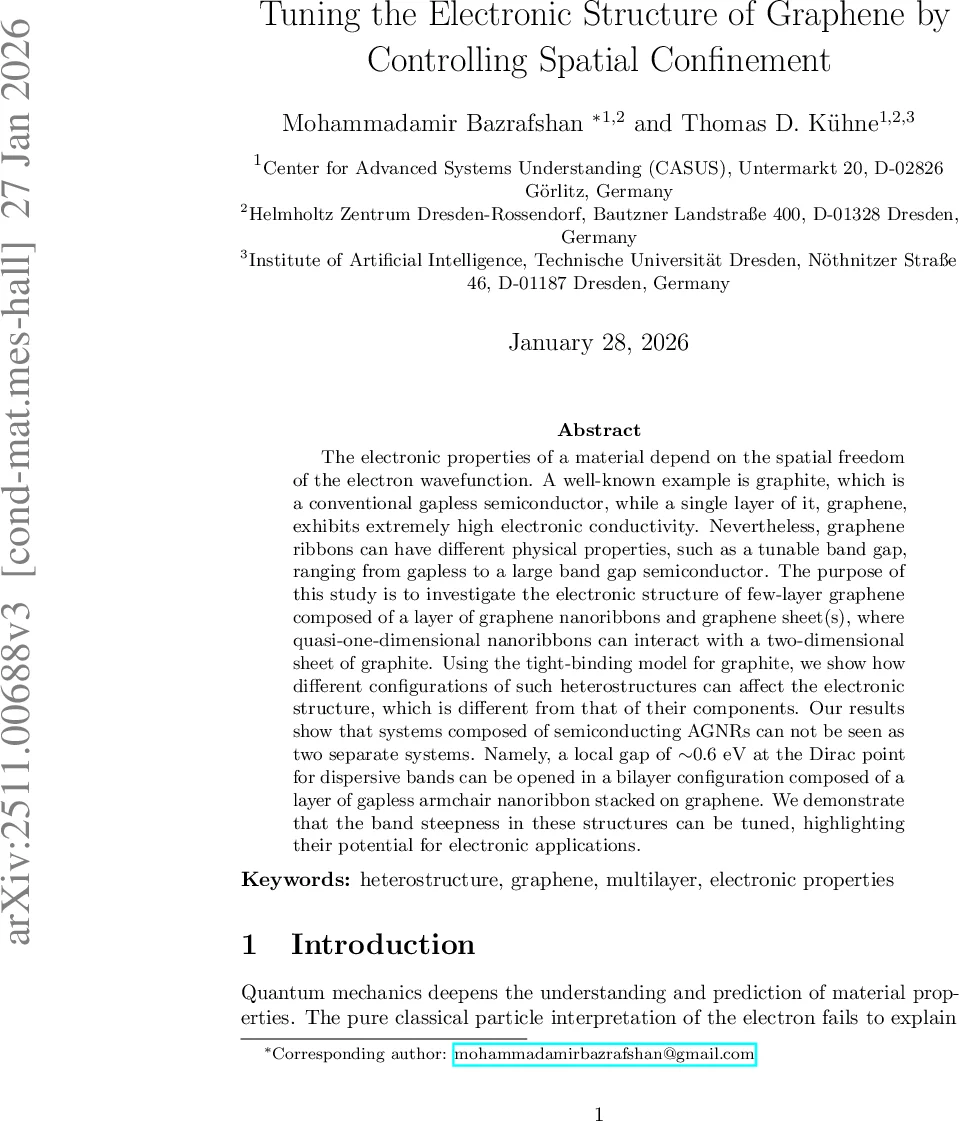

The electronic properties of a material depend on the spatial freedom of the electron wavefunction. A well-known example is graphite, which is a conventional gapless semiconductor, while a single layer of it, graphene, exhibits extremely high electronic conductivity. Nevertheless, graphene ribbons can have different physical properties, such as a tunable band gap, ranging from gapless to a large band gap semiconductor. The purpose of this study is to investigate the electronic structure of few-layer graphene composed of a layer of graphene nanoribbons and graphene sheet(s), where quasi-one-dimensional nanoribbons can interact with a two-dimensional sheet of graphite. Using the tight-binding model for graphite, we show how different configurations of such heterostructures can affect the electronic structure, which is different from that of their components. Our results show that systems composed of semiconducting AGNRs can not be seen as two separate systems. Namely, a local gap of ~0.6 eV at the Dirac point for dispersive bands can be opened in a bilayer configuration composed of a layer of gapless armchair nanoribbon stacked on graphene. We demonstrate that the band steepness in these structures can be tuned, highlighting their potential for electronic applications.

💡 Research Summary

This paper investigates how spatial confinement, introduced by combining graphene sheets with arrays of graphene nanoribbons (GNRs), can be used to engineer the electronic structure of few‑layer graphene. Using the six‑parameter Slonczewski‑Weiss‑McClure (SWMcC) tight‑binding (TB) model, the authors simulate heterostructures in which armchair (AGNR) or zigzag (ZGNR) nanoribbons are either sandwiched between two graphene layers (denoted “S”) or placed on a single layer (denoted “NS”). The TB Hamiltonian includes the intra‑layer hopping γ₀≈3.16 eV, the dominant inter‑layer hopping γ₁≈0.39 eV, and additional longer‑range parameters (γ₂–γ₅) together with sub‑lattice on‑site asymmetry Δᵢ.

Key structural variables are the ribbon width (W_N, counted in carbon atoms across the width) and the spacing between neighboring ribbons. Armchair ribbons fall into three families (3p, 3p+1, 3p+2) where the 3p+2 family is effectively gapless (semimetallic) while the other two are semiconducting. Zigzag ribbons host edge‑localized states but their influence on the overall band structure is modest unless the ribbons are very narrow.

The main findings can be grouped as follows:

1. Band‑gap opening in bilayer‑like configurations – When a gapless (3p+2) AGNR, such as a 5‑atom‑wide ribbon, is sandwiched between two graphene sheets, a local band gap of roughly 0.6 eV appears at the Dirac (K) point. This gap does not arise in pristine bilayer graphene (which remains gapless) and cannot be explained by treating the three layers as independent. Instead, the one‑dimensional confinement of the AGNR couples with the inter‑layer hopping γ₁, producing hybridized bands that are dispersive yet gapped.

2. Control of band steepness (effective mass) – The curvature of the valence and conduction bands near the Fermi level can be tuned by changing the ribbon width and the spacing. Narrow semiconducting AGNRs (e.g., 3‑ or 4‑atom‑wide) produce only slight modifications, preserving nearly linear graphene‑like dispersion. Wider semiconducting ribbons (e.g., 24‑AGNR) increase the contribution of the middle layer to the wavefunction, flattening the bands and reducing the effective mass. Conversely, inserting a gapless AGNR steepens the bands, potentially enhancing carrier mobility.

3. Effect of zigzag ribbons – In a trilayer with a sandwiched 4‑ZGNR, the K‑point bands remain doubly degenerate and essentially linear, indicating that the two graphene sheets behave as almost isolated layers. Selected states show that one of the degenerate bands has no weight on the central ZGNR, while the other exhibits a small contribution, confirming weak coupling. Increasing the ZGNR width or decreasing the inter‑ribbon spacing gradually strengthens inter‑layer coupling, making the system resemble a conventional trilayer.

4. Non‑sandwiched configurations – When the GNR array contacts only one graphene layer, the impact on the overall band structure is reduced. However, for relatively wide semimetallic AGNRs (e.g., 20‑AGNR) the same gap‑opening and band‑steepness effects observed in the sandwiched case still appear, demonstrating that the presence of the ribbon, rather than its exact position, can dominate the electronic response.

Wavefunction analyses (|ψ|²) across representative k‑points reveal that the middle ribbon layer can carry a substantial portion of the electronic density even when the ribbon is semiconducting, disproving the simplistic picture of three decoupled subsystems. The authors also performed a control calculation where all inter‑layer hoppings except γ₀ were set to zero; this restores the expected degenerate graphene bands and flat ribbon bands, underscoring the pivotal role of inter‑layer coupling in the observed phenomena.

From an application perspective, the ability to open a moderate (~0.6 eV) gap without introducing a large physical separation between layers offers a route to room‑temperature graphene‑based transistors that retain high mobility. Moreover, the tunable band steepness provides a handle on effective mass, allowing designers to balance speed (high mobility) against on/off ratio (larger gap). The heterostructures avoid the mechanical instability associated with widely spaced multilayers, potentially simplifying fabrication.

In conclusion, the study demonstrates that spatial confinement introduced by patterned GNR arrays can be harnessed to tailor the electronic properties of few‑layer graphene in ways unattainable by simple stacking. By judiciously selecting ribbon width, edge orientation, and stacking geometry, one can engineer local band gaps, modify carrier effective masses, and create multiple dispersive channels within a single, atomically thin platform. These insights lay the groundwork for next‑generation graphene‑based electronic and optoelectronic devices that exploit both two‑dimensional and quasi‑one‑dimensional physics.
