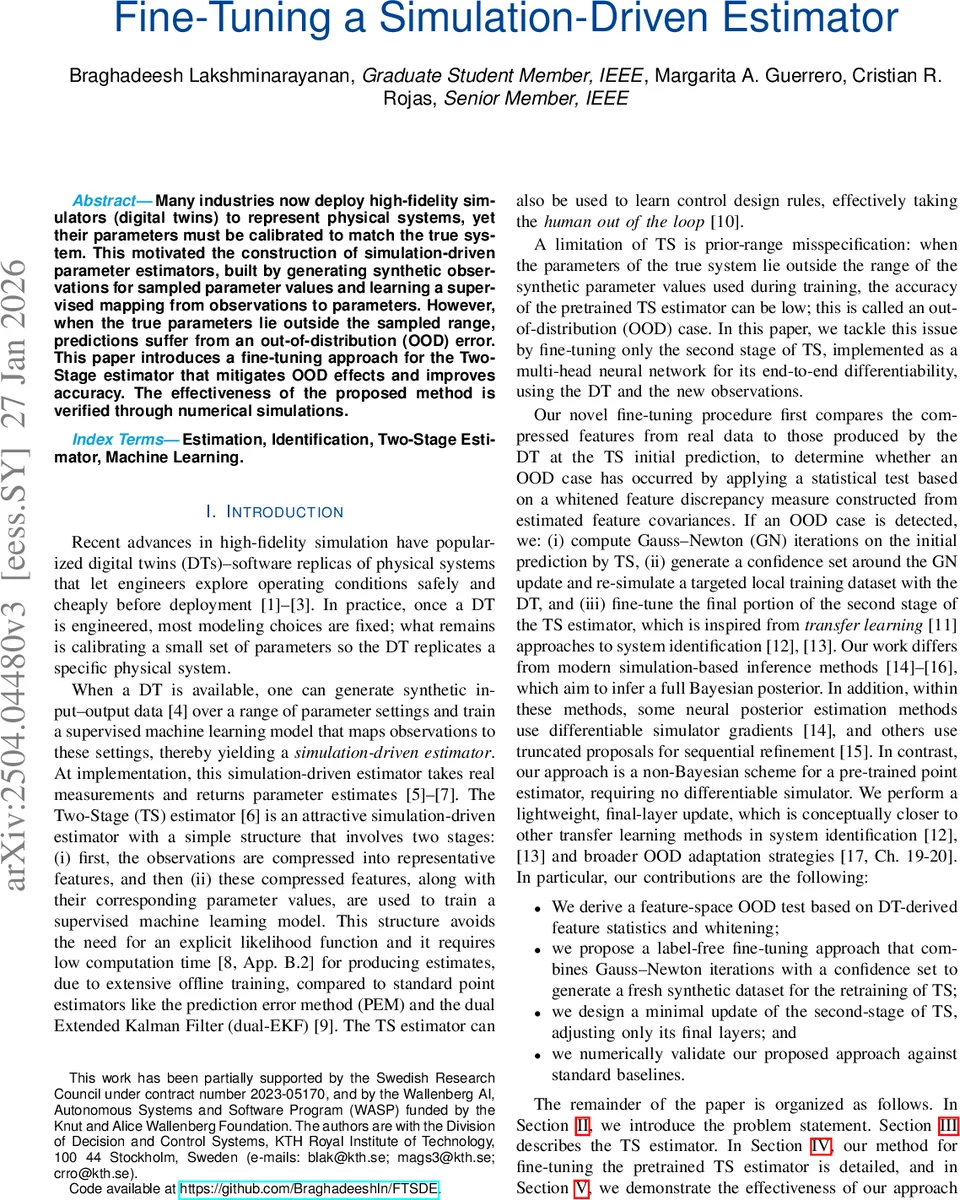

Fine Tuning a Simulation-Driven Estimator

Many industries now deploy high-fidelity simulators (digital twins) to represent physical systems, yet their parameters must be calibrated to match the true system. This motivated the construction of simulation-driven parameter estimators, built by generating synthetic observations for sampled parameter values and learning a supervised mapping from observations to parameters. However, when the true parameters lie outside the sampled range, predictions suffer from an out-of-distribution (OOD) error. This paper introduces a fine-tuning approach for the Two-Stage estimator that mitigates OOD effects and improves accuracy. The effectiveness of the proposed method is verified through numerical simulations.

💡 Research Summary

The paper addresses a critical limitation of simulation‑driven parameter estimators that rely on digital twins (DTs): when the true system parameters lie outside the range used to generate synthetic training data, the estimator’s performance degrades dramatically due to out‑of‑distribution (OOD) effects. The authors focus on the Two‑Stage (TS) estimator, a popular architecture that first compresses raw input‑output trajectories into low‑dimensional features via a deterministic map h(·) (e.g., ARX coefficients) and then maps those features to the parameters using a deep neural network g(·) composed of a shared trunk and multiple parameter‑specific heads. While the TS estimator is computationally efficient and avoids explicit likelihood calculations, it assumes that the true parameters are contained within a pre‑specified prior range Θₚ used during offline training. When this assumption is violated, the pretrained model can produce large errors.

To mitigate this, the authors propose a four‑step fine‑tuning pipeline that only modifies the final layers of the second stage, leaving the feature extractor and the trunk untouched. The steps are:

1. Feature‑Space OOD Detector – After obtaining an initial estimate θ̂_init = g_pre(h(z₀)) from the new observation z₀, the DT is simulated K times at θ̂_init with different random seeds. The resulting feature vectors are used to estimate a mean μ and a regularized covariance S. A whitened discrepancy s_obs =‖S⁻¹ᐟ²(x_obs – μ)‖² is computed for the observed feature x_obs = h(z₀). By bootstrapping the same statistic on the K simulated features, an empirical (1 – α) quantile q_{1‑α} is obtained. If s_obs exceeds q_{1‑α}, the observation is flagged as OOD and the pipeline proceeds; otherwise the pretrained estimator is used directly.

2. Gauss‑Newton (GN) Refinement – When OOD is detected, the authors define a regularized objective v(θ)=½‖r(θ)‖²+γ/2‖θ – θ̂_init‖², where r(θ)=S⁻¹ᐟ²( \bar f(θ) – x_obs ) and \bar f(θ) is the seed‑averaged feature map of the DT. Using the Jacobian J=S⁻¹ᐟ²∂\bar f/∂θ, a Gauss‑Newton iteration yields a refined estimate θ̂_GN. The matrix G=JᵀJ+λI serves as an approximate Fisher information matrix.

3. Confidence‑Ellipsoid Synthetic Data Generation – To retrain the heads, a small, targeted synthetic dataset is required. The authors construct a (1 – β) confidence ellipsoid around θ̂_GN defined by (θ – θ̂_GN)ᵀG(θ – θ̂_GN) ≤ χ²_d(β). Parameter samples are drawn uniformly from this ellipsoid and the DT is simulated at each sample to obtain feature–parameter pairs. If the ellipsoid is ill‑conditioned (e.g., due to low sensitivity in some directions), the method alternates with a sensitivity‑based sampling scheme that perturbs individual parameters proportionally to the inverse of their sensitivities s′_j=‖J e_j‖.

4. Final‑Layer Transfer Learning – With the synthetic dataset in hand, the trunk weights ϕ are frozen and only the head parameters Ψ are updated using a weighted Huber loss plus an orthogonality regularizer (the same loss used in the original TS training). This lightweight fine‑tuning adapts the estimator to the local region of the true parameters while preserving the generic feature extraction learned offline.

The authors validate the approach on several benchmark DTs, including linear SISO systems, a nonlinear oscillator, and a heat‑transfer model. In OOD scenarios (e.g., true parameters outside the training range or sparse training samples), the baseline TS estimator’s mean absolute error (MAE) increased up to 0.78, whereas the fine‑tuned version (FT‑TS) reduced MAE to the 0.04–0.12 range, outperforming traditional PEM, dual‑EKF, and recent simulation‑based Bayesian inference methods. The OOD detector achieved ≈95 % detection accuracy, and the entire fine‑tuning process completed within seconds, preserving the real‑time suitability of the TS estimator.

Key contributions are: (i) a statistically rigorous, feature‑space OOD test based on DT‑derived feature statistics; (ii) a GN‑driven refinement that respects feature covariance; (iii) a confidence‑ellipsoid sampling strategy that efficiently generates informative synthetic data; and (iv) a minimal‑update transfer‑learning scheme that adapts only the final layers. Importantly, the method does not require differentiable simulators, making it applicable to a wide range of existing digital twins.

In conclusion, the paper presents a practical, non‑Bayesian solution to the OOD problem for simulation‑driven estimators. By integrating statistical detection, local refinement, targeted data generation, and focused transfer learning, the proposed fine‑tuning pipeline substantially improves estimation accuracy in out‑of‑distribution regimes while retaining the computational efficiency that makes the Two‑Stage estimator attractive for industrial digital‑twin applications.
