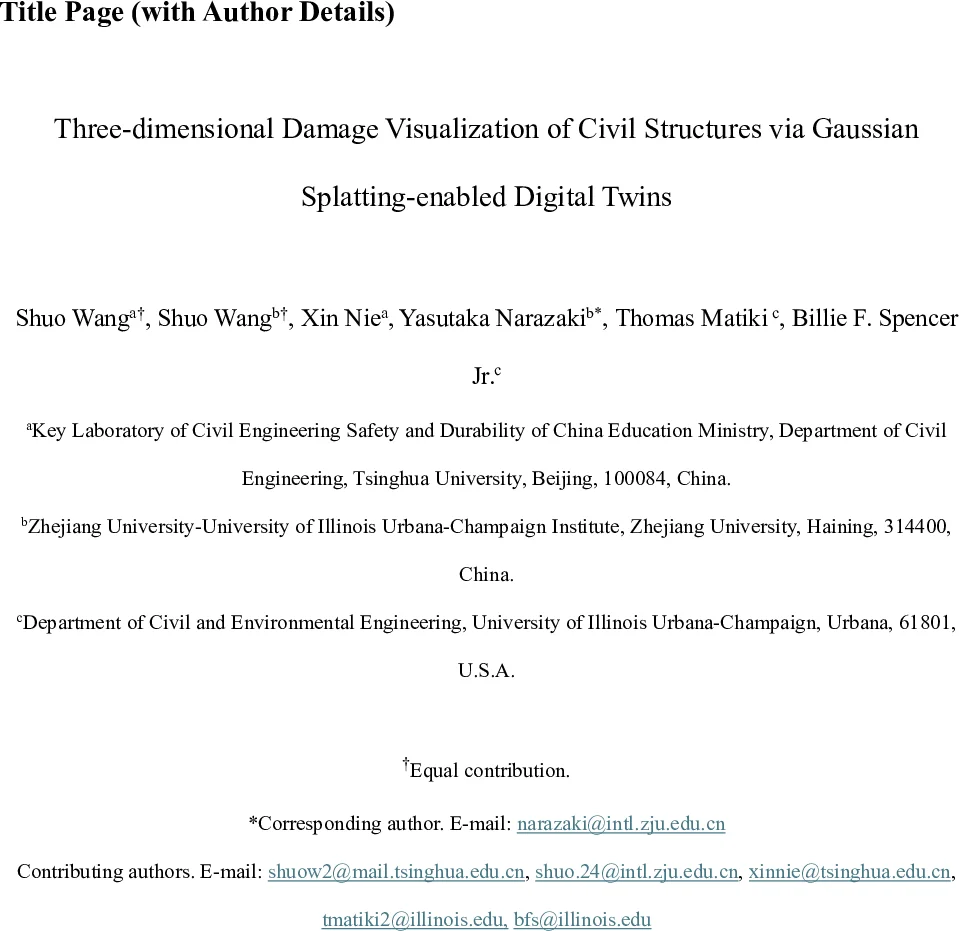

Three-dimensional Damage Visualization of Civil Structures via Gaussian Splatting-enabled Digital Twins

Recent advancements in civil infrastructure inspections underscore the need for precise three-dimensional (3D) damage visualization on digital twins, transcending traditional 2D image-based damage identifications. Compared to conventional photogrammetric 3D reconstruction techniques, modern approaches such as Neural Radiance Field (NeRF) and Gaussian Splatting (GS) excel in scene representation, rendering quality, and handling featureless regions. Among them, GS stands out for its efficiency, leveraging discrete anisotropic 3D Gaussians to represent radiance fields, unlike NeRF’s continuous implicit model. This study introduces a GS-enabled digital twin method tailored for effective 3D damage visualization. The method’s key contributions include: 1) utilizing GS-based 3D reconstruction to visualize 2D damage segmentation results while reducing segmentation errors; 2) developing a multi-scale reconstruction strategy to balance efficiency and damage detail; 3) enabling digital twin updates as damage evolves over time. Demonstrated on an open-source synthetic dataset for post-earthquake inspections, the proposed approach offers a promising solution for comprehensive 3D damage visualization in civil infrastructure digital twins.

💡 Research Summary

**
The paper presents a novel digital‑twin framework for three‑dimensional (3D) damage visualization of civil structures that leverages Gaussian Splatting (GS), a state‑of‑the‑art 3D scene representation technique. Traditional pipelines for 3D damage visualization typically consist of two stages: (1) photogrammetric reconstruction (e.g., Structure‑from‑Motion, Multi‑View Stereo, Poisson surface reconstruction) to obtain a mesh, and (2) ray‑casting of 2D damage segmentation masks onto the mesh. While widely used, this approach suffers from several drawbacks: heavy reliance on feature correspondences makes it fragile in texture‑less or repetitive regions; overlapping images can produce contradictory damage annotations; accurate camera poses are required for reliable ray‑casting; and novel‑view synthesis for subsequent inspections is computationally expensive.

To overcome these limitations, the authors adopt Gaussian Splatting, which models a scene as a set of anisotropic 3D Gaussian primitives. Each primitive is defined by a center position μ, a covariance matrix Σ (encoding scale and orientation), a color vector c, and an opacity α. This explicit, discrete representation enables fast GPU‑accelerated rendering (projecting Gaussians as 2D ellipses) and direct geometric manipulation, unlike Neural Radiance Fields (NeRF) that rely on continuous MLPs and are costly to train.

The proposed methodology introduces three key innovations:

1. Integration of 2D Damage Masks into the GS Optimization – The authors augment the standard GS loss (pixel‑wise L1 and SSIM) with a segmentation‑aware term (cross‑entropy or Dice loss) that compares rendered images against ground‑truth damage masks. By enforcing multi‑view consistency, the model learns to embed damage distributions directly into the 3D Gaussian field, reducing single‑view segmentation errors and producing a coherent 3D damage map.

2. Hierarchical Multi‑Scale Reconstruction – A coarse‑to‑fine strategy is employed. Low‑resolution images are first used to generate a sparse Gaussian cloud that captures the overall geometry quickly. Regions suspected of damage are then refined using high‑resolution images and detailed masks. The refinement process uses cloning, splitting, and pruning operations to adapt the Gaussian density locally, preserving computational efficiency while achieving high‑fidelity detail where it matters most.

3. Temporal Digital‑Twin Updates via Novel‑View Synthesis – Leveraging GS’s ability to synthesize arbitrary viewpoints, the framework compares newly acquired images with rendered views from the existing model at identical camera poses. Differences are interpreted as newly emerged damage, which is then incorporated by fine‑tuning only the affected Gaussians. This selective update avoids full re‑training, enabling near‑real‑time tracking of damage progression and maintaining a temporally consistent twin with explicit phase labeling.

The authors validate their approach on an open‑source synthetic dataset designed for post‑earthquake inspections, containing various structural elements (walls, columns, bridges) and damage types (cracks, spalling, severe deformation). Quantitative results show improvements of roughly 12 % in Intersection‑over‑Union (IoU) and 15 % in F1‑score compared with a conventional SfM‑MVS‑Poisson pipeline, while maintaining real‑time rendering speeds (>30 fps) with fewer than one million Gaussians. Qualitative visualizations demonstrate smooth, continuous damage boundaries and the ability to capture fine cracks that mesh‑based methods often miss.

The paper also discusses limitations: dependence on an initial SfM pose estimate (making fully unstructured scenarios challenging), sensitivity to the quality of 2D segmentation masks (poor masks can propagate errors into the 3D model), and the fact that experiments are limited to synthetic data. Future work is suggested in three directions: (i) incorporation of additional sensing modalities such as LiDAR, ultrasonic, or thermal imaging to strengthen robustness; (ii) linking Gaussian parameters to physical material properties for more informative structural health assessments; and (iii) extensive validation on real‑world field data with varying lighting, occlusions, and noise.

In summary, the study delivers a practical, scalable solution for 3D damage visualization within digital twins, combining the efficiency of Gaussian Splatting with a loss formulation that embeds damage information, a hierarchical reconstruction workflow that balances speed and detail, and an update mechanism that supports continuous monitoring without costly full re‑reconstruction. This positions GS‑enabled digital twins as a promising tool for advanced structural health monitoring, post‑disaster assessment, and proactive infrastructure maintenance.
