Purely equatorial lasing in spherical liquid crystal polymer microlasers with engineered refractive index gradient

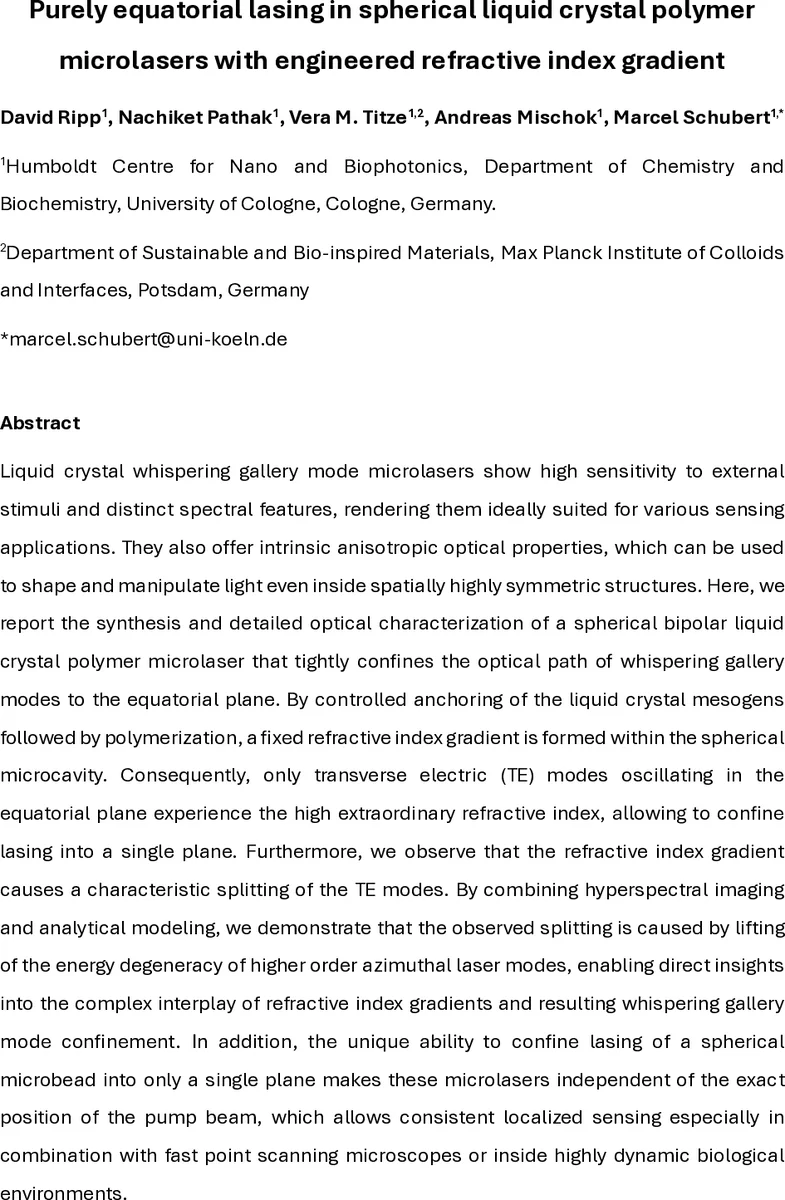

Liquid crystal whispering gallery mode microlasers show high sensitivity to external stimuli and distinct spectral features, rendering them ideally suited for various sensing applications. They also offer intrinsic anisotropic optical properties, which can be used to shape and manipulate light even inside spatially highly symmetric structures. Here, we report the synthesis and detailed optical characterization of a spherical bipolar liquid crystal polymer microlaser that tightly confines the optical path of whispering gallery modes to the equatorial plane. By controlled anchoring of the liquid crystal mesogens followed by polymerization, a fixed refractive index gradient is formed within the spherical microcavity. Consequently, only transverse electric (TE) modes oscillating in the equatorial plane experience the high extraordinary refractive index, allowing to confine lasing into a single plane. Furthermore, we observe that the refractive index gradient causes a characteristic splitting of the TE modes. By combining hyperspectral imaging and analytical modeling, we demonstrate that the observed splitting is caused by lifting of the energy degeneracy of higher order azimuthal laser modes, enabling direct insights into the complex interplay of refractive index gradients and resulting whispering gallery mode confinement. In addition, the unique ability to confine lasing of a spherical microbead into only a single plane makes these microlasers independent of the exact position of the pump beam, which allows consistent localized sensing especially in combination with fast point scanning microscopes or inside highly dynamic biological environments.

💡 Research Summary

In this work the authors present a novel class of spherical liquid‑crystal polymer (LCP) whispering‑gallery‑mode (WGM) microlasers in which the optical path of the lasing modes is confined to a single equatorial plane. The key to this confinement is the creation of a permanent refractive‑index gradient inside each microsphere. By adding polyvinyl alcohol (PVA) as a surfactant, the rod‑like mesogens are forced into a planar anchoring condition during droplet formation. After solvent evaporation the droplets shrink to 9–10 µm spheres, and a UV‑induced cross‑linking step freezes the mesogen orientation, yielding a bipolar internal structure: the extraordinary refractive index (nₑ ≈ 1.661 at 600 nm) is aligned along the meridians that connect the two poles, while the ordinary index (nₒ ≈ 1.511) dominates elsewhere.

Because transverse‑electric (TE) modes have their electric field perpendicular to the sphere surface, they experience the high nₑ only when they propagate in the equatorial plane. Transverse‑magnetic (TM) modes, whose electric field would need to follow the meridians, do not satisfy total‑internal‑reflection conditions for the small sphere sizes used in water and therefore are not observed. Consequently, only TE WGMs lase, and they do so at remarkably low thresholds (≈85 pJ per pulse for a 9.5 µm sphere).

Spectrally, each TE mode appears as a group of 3–5 closely spaced peaks separated by 200–300 pm. The authors demonstrate that this splitting is not the usual free‑spectral‑range between different angular‑momentum numbers (l and l + 1) but rather a lifting of the degeneracy among higher‑order azimuthal modes that share the same l. The refractive‑index gradient makes the optical path length slightly different for each azimuthal order, producing the observed sub‑mode structure.

A refractive‑index sensing experiment, in which the surrounding medium is changed from pure water (n = 1.333) to a 3 % glucose solution (n = 1.337), shows that all peaks shift by the same amount (~145 pm). This uniform shift confirms that the modes are surface‑localized and share a similar evanescent field, as expected for degenerate azimuthal WGMs in a sphere. The measured shift is larger than the simple homogeneous‑index model predicts, which the authors attribute to local index variations caused by imperfect mixing of the glucose solution.

Orientation‑dependent measurements reveal a striking anisotropy: when the bipolar axis lies in the imaging plane (side‑view), the microlaser emits two bright spots on opposite sides of the equator, and the lasing threshold remains low. When the bipolar axis points toward the observer (pole‑view), no lasing is observed even at pump energies thirty times higher than the side‑view threshold; only homogeneous fluorescence is detected. This behavior arises because the pump beam, which is incident normal to the substrate, couples efficiently only to TE modes that travel in the equatorial plane where the extraordinary index is high. Thus, the lasing is intrinsically confined to a single plane regardless of where the pump spot lands on the sphere.

The fabrication process—microfluidic droplet generation, solvent evaporation, and UV cross‑linking—produces monodisperse beads with a narrow size distribution and reproducible internal bipolar texture, as confirmed by cross‑polarized microscopy. The authors also demonstrate rapid hyperspectral imaging of multiple beads, showing that only those with the appropriate side‑view orientation exhibit strong, narrow‑linewidth lasing peaks, while pole‑view beads remain essentially dark.

Overall, the paper makes four major contributions: (1) engineering a permanent refractive‑index gradient in a spherical resonator to break the inherent isotropy of WGMs; (2) achieving single‑plane TE‑only lasing, which eliminates dependence on pump‑spot location; (3) elucidating the origin of mode splitting as a consequence of lifted azimuthal degeneracy; and (4) demonstrating that the orientation‑controlled emission enables robust, position‑independent sensing, suitable for fast point‑scanning microscopes and dynamic biological environments. By turning a perfectly symmetric sphere into an anisotropic optical cavity, the authors open new pathways for high‑sensitivity biosensing, on‑chip photonic integration, and the design of meta‑optical elements that exploit controlled internal index gradients.
